Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
AMD |
| Audio output channels |
7.1 channels |
| RAID levels |
1, 10, JBOD |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1066, 1333, 1600, 1866, 2400 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.5 V |
| Memory channels |
Dual |
| Maximum internal memory |
64 GB |
BIOS
| BIOS memory size |
8 MB |
| BIOS type |
AWARD |
| Clear CMOS jumper |
Y |
| ACPI version |
1.0b |
Internal I/O
| USB 2.0 connectors |
3 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| Number of SATA II connectors |
6 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Supported storage drive interfaces |
Serial ATA II |
| Front panel audio connector |
Y |
Graphics
| On-board graphics adapter |
N |
| Parallel processing technology support |
Not supported |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
1 |
| USB 2.0 ports quantity |
6 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
2 |
| PCI Express x1 slots |
1 |
| PCI Express slots version |
2.0 |
Networking
| LAN controller |
Realtek RTL8111E |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
Weight & dimensions
| Depth |
244 mm |
| Width |
244 mm |
Processor
| Compatible processor series |
AMD A, AMD E2 |
Additionally
| Chipset |
AMD A75 |
| Ethernet LAN (RJ-45) ports quantity |
1 |

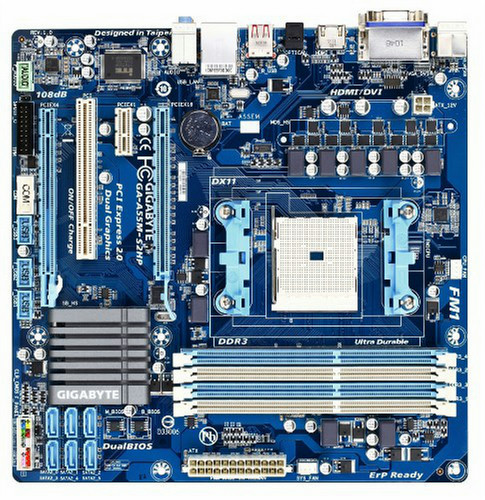

GA-A55M-S2HP, FM1, AMD A75, DDR3, SATA2, USB 2.0, Gigabit Ethernet, Micro ATX
GIGABYTE Super4™ motherboards are the latest range of next-generation desktop motherboards based on the AMD A75 chipset, supporting a new generation socket FM1 of 32nm AMD A-series/E-series APUs with DirectX11 graphics integrated. Not only delivering AMD’s industry-leading performance and advanced graphics capabilities, GIGABYTE Super4™ motherboards are equipped with a comprehensive range of unique features that offer mainstream PC users the most compelling platform on the market today.
DVI (Digital Visual Interface) is a new video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as flat LCD monitors, digital projectors, and so on. In addition, DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media contents.
Delivering native support for DDR3 memory up to 2400MHz, GIGABYTE Ultra Durable series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
GIGABYTE Super Speed ensures that you’re always on the cusp of PC performance, data transfer and device charging speeds. GIGABYTE’s unique Ultra Durable™ series technology makes sure that your AMD processor is running at optimal performance levels, while GIGABYTE 3x USB power means better device compatibility and also allows iPad, iPhone and iPod devices to charge up to 40% faster. AMD A-series motherboards come with new generation APU able to provide ultimate DX11 graphics performance and additional up to 45% enhanced by AMD Dual Graphics technology.
GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
