Performance
| Motherboard form factor |
Mini ITX |
| Motherboard chipset family |
Intel |
| Component for |
PC |
Memory
| Supported memory clock speeds |
1333, 1600 MHz |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.5 V |
| Memory channels |
Dual |
| Memory slots type |
SO-DIMM |
| Maximum internal memory |
16 GB |
BIOS
| BIOS memory size |
16 MB |
| BIOS type |
AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
2.0a |
Internal I/O
| mSATA ports quantity |
1 |
| USB 2.0 connectors |
5 |
| Number of SATA connectors |
4 |
| Number of Parallel ATA connectors |
1 |
| USB 3.0 (3.1 Gen 1) connectors |
4 |
| Number of SATA III connectors |
3 |
| Number of SATA II connectors |
1 |
| CPU fan connector |
Y |
| Front panel audio connector |
Y |
| Serial port headers |
1 |
Expansion slots
| Mini PCI Express slots |
1 |
| PCI Express x4 slots |
1 |
Back panel I/O ports
| Microphone in |
Y |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
Additionally
| Chipset |
Intel B85 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Intel B85 Chipset, Intel Core i3/i5/i7, Intel Pentium/Celeron, Realtek ALC887 audio codec, 10/100/1000Mbit LAN, SM BIOS 2.6, Windows 7/8, Mini-ITX

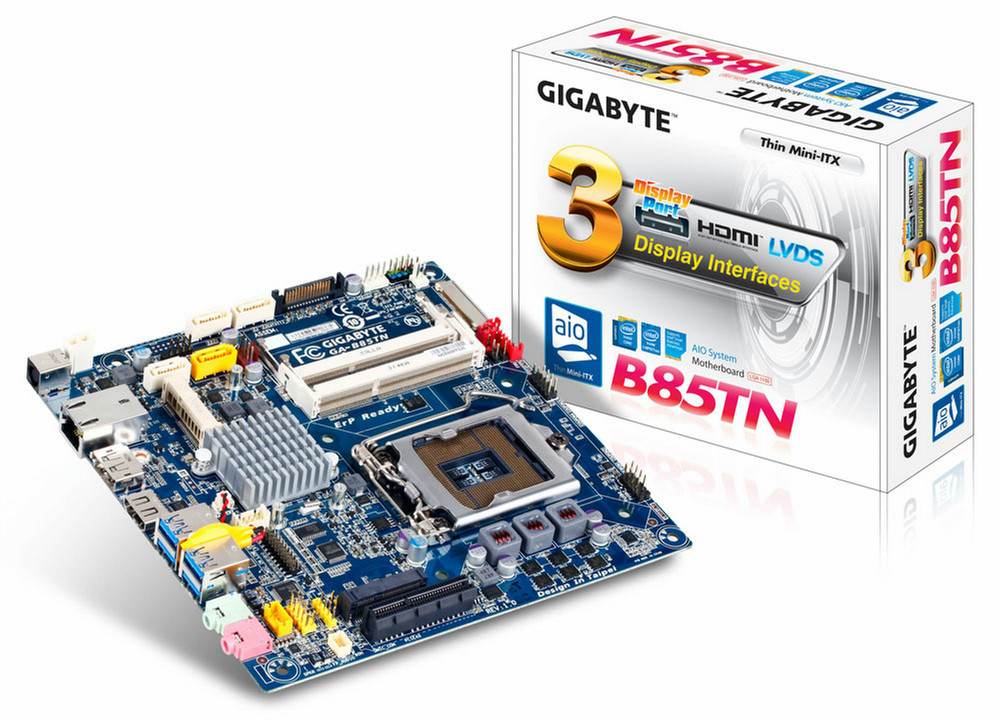

GIGABYTE Thin Mini-ITX Motherboards
GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today’s All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE Thin Mini-ITX motherboards offer additional flexibility making them suited to broad range of innovative PC designs.
Selectable Panel Power Driver
GIGABYTE Thin Mini-ITX motherboards feature a selectable power driver allowing for both 3.3v and 5v configurations. This brings additional flexibility for LVDS panels that require both 3.3v and 5v drivers. Voltage settings are configured via an onboard jumper.
Selectable Back Light Power Module
GIGABYTE Thin Mini-ITX motherboards offer flexible backlight power delivery with both 12v and 19v options available via onboard jumpers. This enhances compatibility with the wide range of backlit displays available today.
Wide Range Voltage Input
Offering additional flexibility for system DC voltage input, GIGABYTE Thin Mini-ITX motherboards offer a broad voltage range of 12v to 19v, eliminating compatibility issues with many traditional IPC designs.
PCI Express x4 Expansion Slot
GIGABYTE Thin Mini-ITX motherboards are equipped with a x4 PCI Express expansion slot providing up to 25W of power and easy integration of TV tuner, video capture or RAID cards with a compatible riser card.
