Memory
| Supported memory types |
DDR3-SDRAM |
| Number of memory slots |
2 |
| Memory slots type |
DIMM |
| Memory channels |
Dual |
| Memory voltage |
1.5 V |
Internal I/O
| Power fan connector |
Y |
| ATX Power connector (24-pin) |
Y |
| USB 2.0 connectors |
2 |
| Front panel audio connector |
Y |
| Chassis intrusion connector |
Y |
| CPU fan connector |
Y |
| Parallel connector |
Y |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Number of SATA II connectors |
2 |
| Number of SATA III connectors |
1 |
Back panel I/O ports
| Serial ports quantity |
1 |
| HDMI ports quantity |
1 |
| COM ports quantity |
1 |
| eSATA ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
2 |
BIOS
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
Performance
| Component for |
PC |
| Audio system |
Realtek ALC887, HD audio |
| Motherboard chipset family |
Intel |
Networking
| Networking features |
10/100/1000 Mbit |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
| Chipset |
Intel NM70 Express |

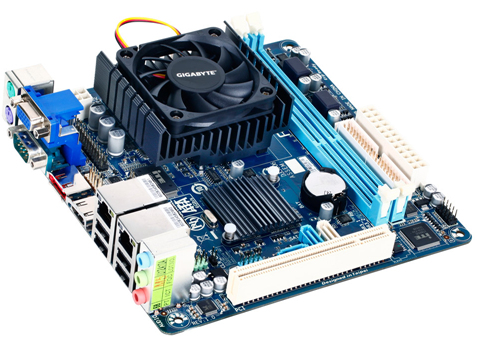

Mini-ITX, Intel NM70 Chipset, Intel Celeron 847 (1.1GHz), 2 x 1.5V DDR3 DIMM, 16GB max, 1333/1066 MHz, Realtek ALC887, 2/4/5.1/7.1, Gigabit Ethernet, 1 x SATA 6Gb/s, 2 x SATA 3Gb/s, USB 2.0, 1 x PCI, D-Sub, HDMI
<b>UEFI DualBIOS™ Technology</b>
With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.
<b>Humidity Protection</b>
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
<b>Electrostatic Protection</b>
GIGABYTE Ultra Durable 4 Classic motherboards feature High ESD Resistance ICs which help protect the motherboard against electrostatic discharge.
<b>Power Failure Protection</b>
Permanent damage from power surge or failure during BIOS update, can be avoided with GIGABYTE DualBIOS, which automatically enables a secondary, back up BIOS.
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
<b>High Temperature Protection</b>
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures, providing up to 50,000* hour component lifespan.
<b>50,000 Hours Solid Capacitors</b>
GIGABYTE Ultra Durable motherboards are equipped with solid capacitors. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.
<b>Dual Gigabit LAN</b>
Experience flexibility and convenience of dual Lan built in GA-C847N.
<b>On/Off Charge Technology</b>
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...
<b>HDMI™-The Next Generation Multimedia Interface</b>
HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
<b>ErP Lot 6 support</b>
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
