Back panel I/O ports
| VGA (D-Sub) ports quantity |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| Headphone outputs |
3 |
| PS/2 ports quantity |
1 |
| DVI-D ports quantity |
1 |
Performance
| Audio system |
Realtek ALC887 |
| Motherboard chipset family |
AMD |
| Component for |
PC |
Memory
| Memory slots type |
DIMM |
| Memory channels |
Dual |
| Supported memory types |
DDR3-SDRAM |
| Number of memory slots |
2 |
| Maximum internal memory |
64 GB |
Internal I/O
| Serial port headers |
1 |
| Front panel audio connector |
Y |
| Number of COM connectors |
1 |
| EPS power connector (8-pin) |
Y |
| USB 2.0 connectors |
2 |
| Number of SATA connectors |
4 |
| ATX Power connector (24-pin) |
Y |
| S/PDIF out connector |
Y |
BIOS
| Clear CMOS jumper |
Y |
| BIOS memory size |
128 MB |
| BIOS type |
UEFI AMI |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI slots |
1 |
| PCI Express x1 slots |
1 |
Graphics
| Maximum graphics adapter memory |
2000 MB |
Additionally
| Chipset |
AMD A58 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |

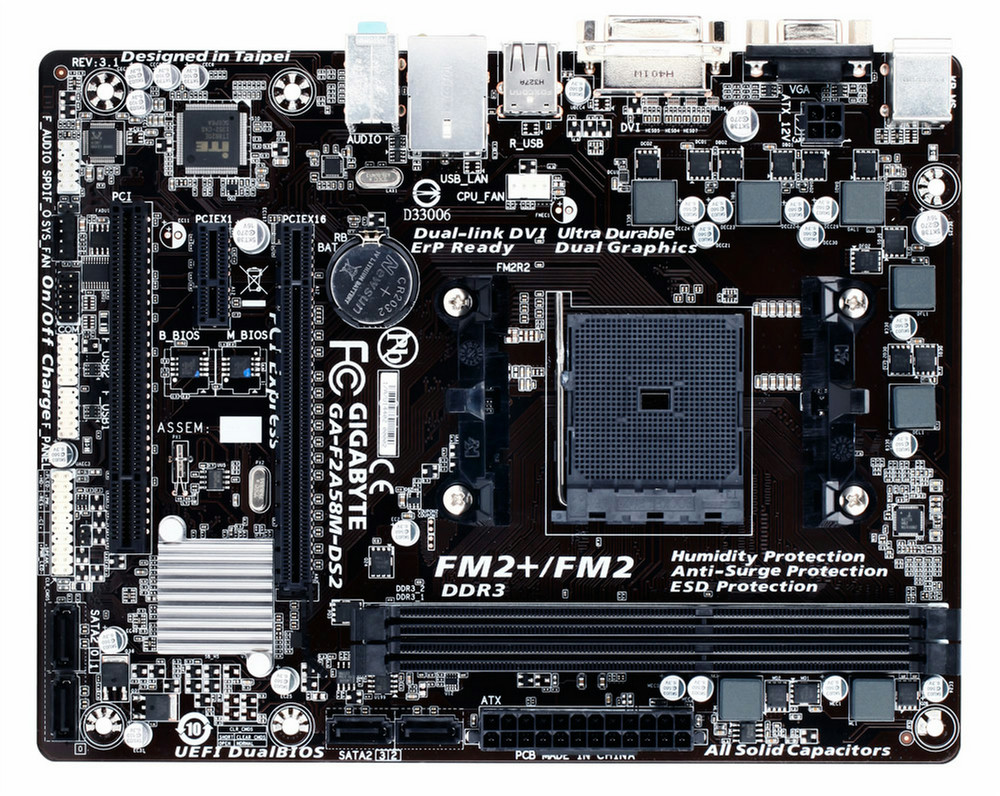

FM2+ Socket, AMD A58, 2 x DDR3 DIMM, PCI Express x16, PCI Express x1, PCI, PS/2, D-Sub, DVI-D, 4 x USB 2.0, RJ-45, Micro ATX
<b>GIGABYTE FM2+ Series Motherboards</b>
GIGABYTE FM2+ series motherboards based on AMD A58 chipset and feature the new FM2+ APU socket, and are designed to get the most from forthcoming Kaveri AMD APUs, while preserving compatibility for current AMD FM2 APUs. FM2+ AMD APUs offer native support for 8 GT/s PCI Express gen 3.0 as well as DX11.1 support integrating the high performance ‘Steamroller’ core. AMD socket FM2+ APUs also offer native support for 4K resolution displays on HDMI port.
<b>GIGABYTE Ultra Durable™ 4 Plus</b>
GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
<b>Ultra Performance</b>
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
<b>Ultra Safe</b>
<b>GIGABYTE UEFI DualBIOS™</b>
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
<b>Humidity Protection</b>
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
<b>Power Failure Protection</b>
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
<b>Electrostatic Protection</b>
GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
<b>AMD Dual Graphics Technology</b>
The AMD FM2+ series platform showcases AMD Dual Graphics technology, allowing users to further boost 3D graphics performance by adding an additional discrete AMD Radeon™ graphics card to the system. This unique Dual Graphics technology means users can enjoy higher frame rates on the latest gaming titles, utilizing the processing power of both discrete and integrated graphics processors.
<b>AMD Eyefinity Technology</b>
Supporting multiple independent display outputs simultaneously, AMD Eyefinity technology delivers innovative graphics display capabilities enabling massive desktop workspaces and ultra-immersive visual environments for the ultimate panoramic computing experience.
<b>Dual-link DVI port</b>
Designed to leverage the awesome potential of the latest AMD Fusion A-series APUs, GIGABYTE motherboards deliver an enhanced visual experience that includes advanced DX11® gaming, incredibly smooth HD multimedia playback and support for high resolution displays of up to 2560 x 1600 pixels by Dual-link DVI port.
<b>On/Off Charge Technology</b>
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.
<b>ErP Lot 6 support</b>
The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
