Performance
| Motherboard form factor |
Micro ATX |
| Motherboard chipset family |
Intel |
| PC health monitoring |
CPU |
| Audio system |
Realtek ALC887 |
| Component for |
PC |
Memory
| Supported memory clock speeds |
2133 MHz |
| Supported memory types |
DDR4-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
64 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
5.0 |
Processor
| Maximum number of SMP processors |
1 |
Internal I/O
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
4 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| CPU fan connector |
Y |
| Front panel audio connector |
Y |
Graphics
| Maximum graphics adapter memory |
1024 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Expansion slots
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
2 |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB connector type |
USB Type-A |
| VGA (D-Sub) ports quantity |
1 |
Additionally
| Chipset |
Intel H110 |
| Graphics |
HD Graphics |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

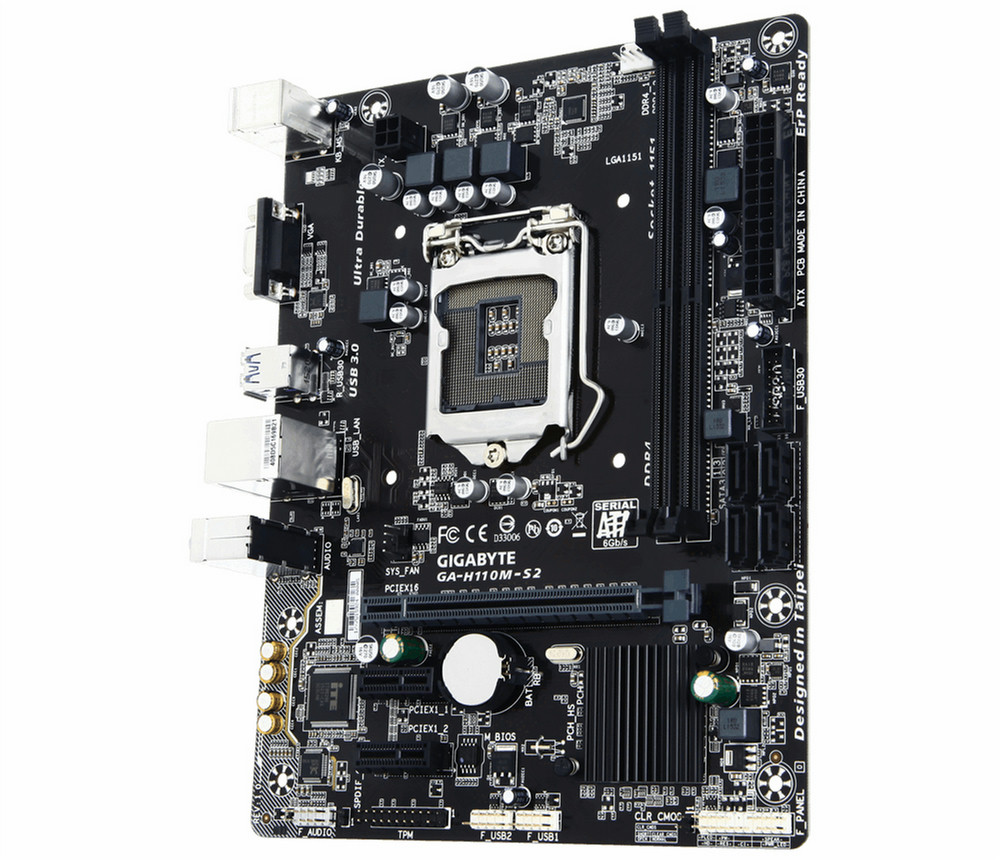

Intel Core i7/i5/i3/Pentium, Intel H110 Express, , 2 x DDR4 DIMM, 2133 MHz, 10/100/1000 Mbit, 4 x SATA 6Gb/s, AMI UEFI
GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
High Quality Onboard Audio Design
Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional users.
Humidity Protection with Glass Fabric PCB
There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
High ESD Ethernet & USB Port Protection
GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. With pairing the dedicated protection filters, the Ethernet LAN and USB ports can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
High Temperature Protection of Lower RDS(on) MOSFETs Design
GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.
Realtek GbE LAN with cFosSpeed Internet Accelerator Software
Realtek GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to delivery better responsiveness in a crowded LAN environments. Realtek GbE consumes significant less power when it’s in idle state in comparison with others.
APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.
Cloud Station™
GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
USB 3.0 Ports Onboard
With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.
