Performance
| Motherboard form factor |
Micro ATX |
| Audio system |
ALC888B |
Internal I/O
| USB 2.0 connectors |
3 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
4 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| S/PDIF in connector |
Y |
| Floppy disk drive connector |
Y |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Front panel audio connector |
Y |
Memory
| Non-ECC |
Y |
| Memory voltage |
1.5 V |
| Number of memory slots |
2 |
Graphics
| On-board graphics adapter |
Y |
Back panel I/O ports
| DVI-D ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Microphone in |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Expansion slots
| PCI slots |
2 |
| PCI Express x16 slots |
2 |
Networking
| Networking features |
10/100/1000 Mbps |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

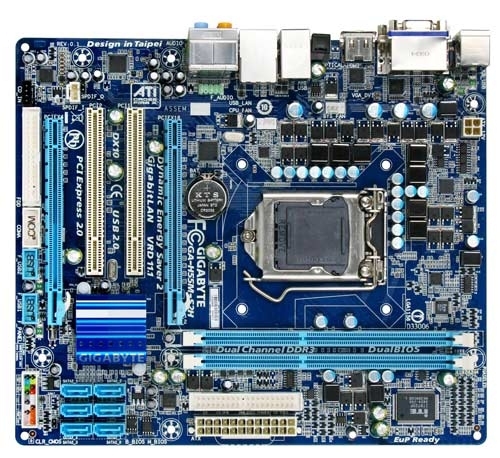

GA-H55M-S2H - 1156, DDR3, H55, Ethernet, micro ATX
Smart 6- A Smarter way for PC system Management
GIGABYTE Smart 6 is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6 allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button.
Qualified for Windows 7
The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft, setting the standard for future Windows 7 certified motherboards... more
Dynamic Energy Saver 2
GIGABYTE Dynamic Energy Saver 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button.
Intel Core i5/ Core i3 LGA 1156 Processors
Supporting the latest Intel Core i5 and Core i3 processors featuring the first time ever integrated graphics on chip and LGA 1156 socket, GIGABYTE H5x series motherboards set a new standard in multimedia platform for high definition contents playback. With the GPU integrated directly into the processor die, GIGABYTE H5x motherboards support 2 channel DDR3 memory, wide range of display interfaces that includes VGA, DVI, HDMI and DisplayPort (Depends on model). Additionally, the GIGABYTE H5x Series are optimized for greater graphics performance by enabling overclocking the GPU core frequency for a performance gain of up to 13%.
DDR3 2200+ Support
Supports Intel Core i5/ Core i3 processors delivering native support for DDR3 memory up to 2200+MHz by the enhanced design of GIGABYTE.
