Memory
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Non-ECC |
Y |
| Number of memory slots |
2 |
| Maximum internal memory |
8 GB |
| Memory slots type |
SO-DIMM |
Internal I/O
| USB 2.0 connectors |
3 |
| Number of SATA connectors |
2 |
| Front panel audio connector |
Y |
| Chassis intrusion connector |
Y |
| CPU fan connector |
Y |
| Number of SATA II connectors |
2 |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| S/PDIF out connector |
Y |
Performance
| PC health monitoring |
CPU, FAN |
| Motherboard chipset family |
Intel |
| Component for |
PC |
| Mac operating systems supported |
Y |
| Cooling type |
Passive |
| Audio system |
Realtek ALC887 |
Processor special features
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Virtualization Technology (Intel® VT) |
VT-x |
| Intel vPro Technology |
N |
Back panel I/O ports
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Microphone in |
Y |
| Headphone outputs |
1 |
| PS/2 ports quantity |
2 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
Intel Celeron J1800 (2.41 GHz), 2 x DDR3/-L SO-DIMM (up to 8GB), 2 x SATA 2, 2 x PS/2, VGA, HDMI, 1 x USB 3.0, 3 x USB 2.0, LAN, AMI UEFI BIOS, Mini-ITX

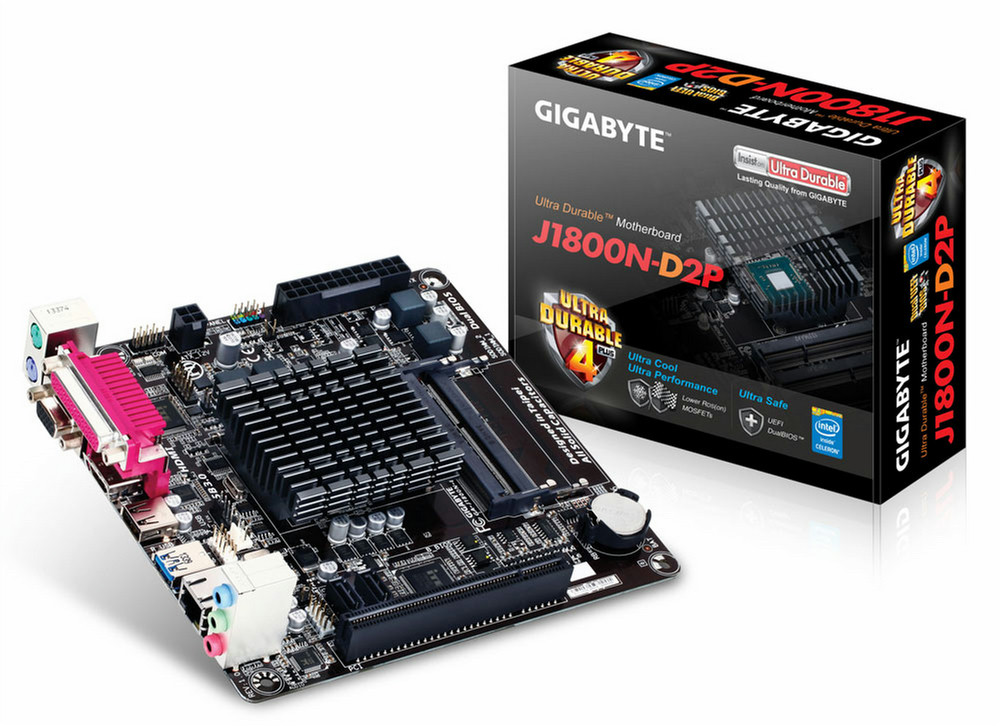

<b>GIGABYTE J1800N-D2P</b>
The GIGABYTE J1800N Mini-ITX motherboard is a fully integrated PC motherboard featuring the Intel® Celeron™ J1800 dual-core processor. Designed for compact, small form factor PC systems and devices, the GIGABYTE J1800N is entirely fanless, making it ideal for always-on, mission critical systems, as well as noise-sensitive digital entertainment systems. Connectivity includes digital and analog display outputs via VGA and HDMI ports, while a PCI slot provides wide-range expansion card selections.
<b>Intel® Celeron™ J1800 Processor</b>
The Intel® Celeron™ J1800 Dual-Core processor is the latest system on chip (SoC) from Intel, combining CPU, graphics and memory controller in one package. Based on the 22nm manufacturing process, the Intel® Celeron™ J1800 uses the smallest package of any desktop processor within a low thermal envelope of on 10 watts. The Intel® Celeron™ J1800 boasts excellent performance including DX11 gaming on Intel® HD Graphics, plus a dedicated H.264 encoder for smooth HD video playback.
<b>GIGABYTE Ultra Durable™ 4 Plus</b>
GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
<b>Ultra Performance</b>
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
<b>Ultra Safe</b>
<b>GIGABYTE UEFI DualBIOS™</b>
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
<b>Humidity Protection</b>
Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.
<b>Power Failure Protection</b>
GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
<b>Electrostatic Protection</b>
GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.
<b>High ESD Protection for USB and LAN (USB 3.0 only)</b>
GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
<b>One Fuse per USB Port (USB 3.0 only)</b>
On GIGABYTE 8 Series motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safe guard your important data during transfer.
<b>On/Off Charge Technology</b>
GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger.
<b>LAN Optimizer - Intelligent optimization network management tool</b>
GIGABYTE LAN Optimizer is designed to allow the user to manage different types of network traffic so that data streams such as HD media, web browsing or online gaming can be prioritized, taking precedence over large data downloads that tend to strangle overall network bandwidth.
<b>GIGABYTE @BIOS</b>
The new and updated GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.
