Performance
| Motherboard form factor |
ATX |
| Audio system |
High Definition Audio |
BIOS
| BIOS memory size |
8 MB |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Headphone outputs |
3 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
Processor
| Maximum number of SMP processors |
1 |
| Processor system buses supported |
1600 MHz |
Other features
| Controller (2nd) interface type |
IDE/SATA |
Internal I/O
| USB 2.0 connectors |
3 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
6 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
N |
| Floppy disk drive connector |
Y |
| CD/AUX audio in |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
2 |
| Number of EATX power connectors |
1 |
| Front panel audio connector |
Y |
Expansion slots
| PCI slots |
5 |
| PCI Express x16 slots |
1 |
| PCI Express x1 slots |
1 |
Memory
| Memory voltage |
1.8 V |
| Number of memory slots |
4 |
| Maximum internal memory |
16 GB |
| Controller type |
Dual channel |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

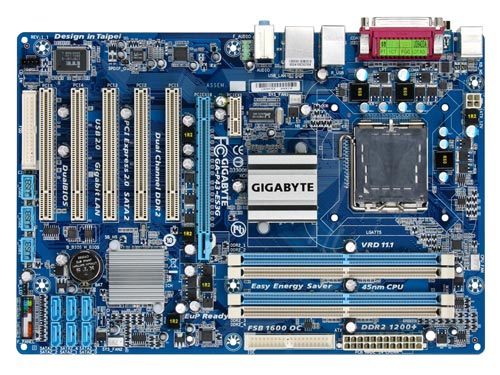

GA-P43-ES3G, LGA 775, P43, DDR2, 12 x USB2, ATX
Based on the new Intel P43 chipset, GA-P43-ES3G delivers a record setting 1600MHz Front Side Bus by overclocking for the latest Intel Core 2 multi-core processors, including 45nm CPUs. With supporting dual channel DDR2 up to 1200+ MHz, GA-P43-ES3G motherboard provides the highest levels of performance and maximum overclocking potential. GA-P43-ES3G delivers several advanced GIGABYTE innovations including Easy Energy Saver, DualBIOS design which provide optimized power savings, ultra cooling and ultra safe data protection.
- On/Off Charge Support
- GIGABYTE leading technology-Easy Energy Saver
- Dual Channel DDR2 1200
- Solid Capacitor for CPU VRM
- DualBIOS - Patented Dual Hardware BIOS Protection
- Windows 7 WHQL Certified
