Performance
| Motherboard form factor |
ATX |
| Audio system |
Realtek ALC888 |
BIOS
| BIOS memory size |
32 MB |
| BIOS type |
AWARD |
| ACPI version |
1.0 |
Back panel I/O ports
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Headphone outputs |
2 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
Internal I/O
| USB 2.0 connectors |
3 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
8 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| Power fan connector |
Y |
| S/PDIF in connector |
Y |
| Floppy disk drive connector |
Y |
| CPU fan connector |
Y |
Other features
| Controller interface type |
Intel P55 Express |
Memory
| Non-ECC |
Y |
| Memory voltage |
1.5 V |
| Number of memory slots |
4 |
| Maximum internal memory |
16 GB |
Expansion slots
| PCI slots |
4 |
| PCI Express x16 slots |
2 |
| PCI Express x1 slots |
1 |
Networking
| Networking features |
10/100 Fast Ethernet |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

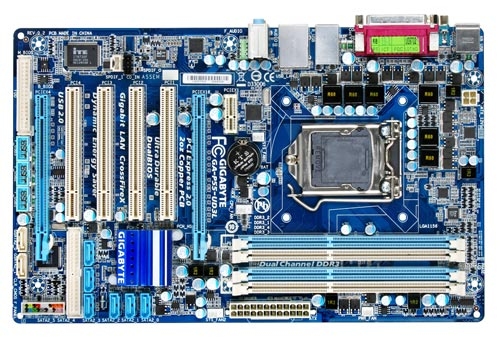

GA-P55-UD3L, Intel Core i7/ Core i5, LGA1156, 4 x DDR3, ALC888 7.1, ATX
Ultra Durable 3 Classic
GIGABYTE Ultra Durable 3 series motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry’s first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking. GIGABYTE Ultra Durable 3 Classic motherboards are equipped with the GIGABYTE Ultra Durable signature features including Japanese Solid Capacitors boasting an operational life time of more than 50,000 hours, Lower RDS(on) MOSFETs (providing lower resistance to reduce power consumption and heat generation) and GIGABYTE patented DualBIOS technology (providing dual hardware BIOS protection). GIGABYTE Ultra Durable 3 Classic motherboards promise to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.
Benefits of 2 oz Copper PCB
- Cooler than traditional motherboards.
- Enhanced durability.
- Improved energy efficiency.
- Greater margins for overclocking.
Smart 6- A Smarter way for PC system Management
GIGABYTE Smart 6 is designed with user-friendliness in mind, and offers a combination of 6 innovative software utilities that provide easier and smarter PC system management. Smart 6 allows you to speed up system performance, reduce boot-up time, manage a secure platform and recover previous system settings easily with a click of the mouse button.
Qualified for Windows 7
The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft, setting the standard for future Windows 7 certified motherboards.
Dynamic Energy Saver 2
GIGABYTE Dynamic Energy Saver 2 incorporates a host of intelligent features that use a proprietary hardware and software design to considerably enhance PC system energy efficiency, Reduce power consumption and deliver optimized auto-phase-switching for the CPU, Memory, Chipset, VGA, HDD, and fans with a simple click of button.
Intel Core i7/ Core i5 LGA 1156 Processors
The Intel brand new computing architecture based on the innovation of micro-architecture transforms 3-chip solutions to a 2-chip platform. The next generation Intel Core i7/ Core i5 processors with LGA1156 package integrate graphics and memory controller to support dual channel DDR3 memory. Supporting Intel Turbo Boost technology and Hyper-Threading Technology, Intel Core i7/ Core i5 processors provide the overwhelming performance with optimized power efficiency.
DDR3 2200+ Support
P55-UD3L support Intel Core i7/ Core i5 processors delivering native support for DDR3 memory up to 2200+MHz by the enhanced design of GIGABYTE, Intel Core i7/ Core i5 processors feature the memory controller integrated directly into the processor die, rather than as part of the Northbridge as in previous generations, allowing for faster memory performance.
XHD (eXtreme HardDrive)-Accelerating hard drive performance with ease
Accelerating system performance is made easy with the user friendly GIGABYTE eXtreme Hard Drive (X.H.D). GIGABYTE eXtreme Hard Drive (X.H.D) provides a quick and easy way to boost your hard drive performance simply by adding another hard drive.
AutoGreen- Greening your PC via Bluetooth cellphone
AutoGreen technology can automatically save power for you simply by your bluetooth cell phone when you are away from your computer.
Multi-display support with ATI CrossFireX
P55-UD3L supporting ATI CrossFireX delivers the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
(P55-UD3L support software ATI CrossFireX only)
Norton Internet Security
Fast, comprehensive, and up-to-the-minute protection against online threats. It safeguards your computer, identity, and home network without slowing you down. It sets a new standard for speed and makes online shopping, banking, and browsing safer and more convenient than ever.
