Internal I/O
| Serial port via internal header |
Y |
| USB 2.0 connectors |
2 |
| S/PDIF out connector |
Y |
| ATX Power connector (24-pin) |
Y |
| S/PDIF in connector |
Y |
| TPM connector |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
2 |
| Number of IEEE1394 connectors |
2 |
| Number of SATA III connectors |
10 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| EPS power connector (8-pin) |
Y |
| CPU fan connector |
Y |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
6 |
| Front panel audio connector |
Y |
| Serial port headers |
1 |
Performance
| Motherboard form factor |
ATX |
| Supported processor sockets |
LGA 1150 (Socket H3) |
| Motherboard chipset family |
Intel |
| Trusted Platform Module (TPM) |
Y |
| PC health monitoring |
CPU, FAN, Temperature |
| Processor with Intel Graphics Technology required |
Y |
| Audio system |
Realtek ALC898 |
| Component for |
PC |
| Cooling type |
Passive |
Memory
| Supported memory clock speeds |
1333, 1600, 3000 MHz |
| Non-ECC |
Y |
| ECC |
N |
| Unbuffered memory |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory voltage |
1.5 V |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
16 MB |
| BIOS type |
EFI AMI |
| Clear CMOS button |
Y |
| Clear CMOS jumper |
Y |
| ACPI version |
2.0a |
Processor
| Maximum number of SMP processors |
1 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
| Discrete graphics support |
Y |
| HDCP |
Y |
Expansion slots
| PCI slots |
1 |
| PCI Express x16 slots |
3 |
| PCI Express x1 slots |
3 |
| PCI Express configurations |
1x4, 1x8, 1x16 |
| PCI Express slots version |
2.0, 3.0 |
Back panel I/O ports
| PS/2 ports quantity |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| DVI-I ports quantity |
1 |
| DisplayPorts quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
6 |
| HDMI ports quantity |
2 |
Packaging content
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel Z87 |
| Intel HD Audio Technology |
Y |
| Graphics |
HD Graphics |
| Dual-link DVI |
Y |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

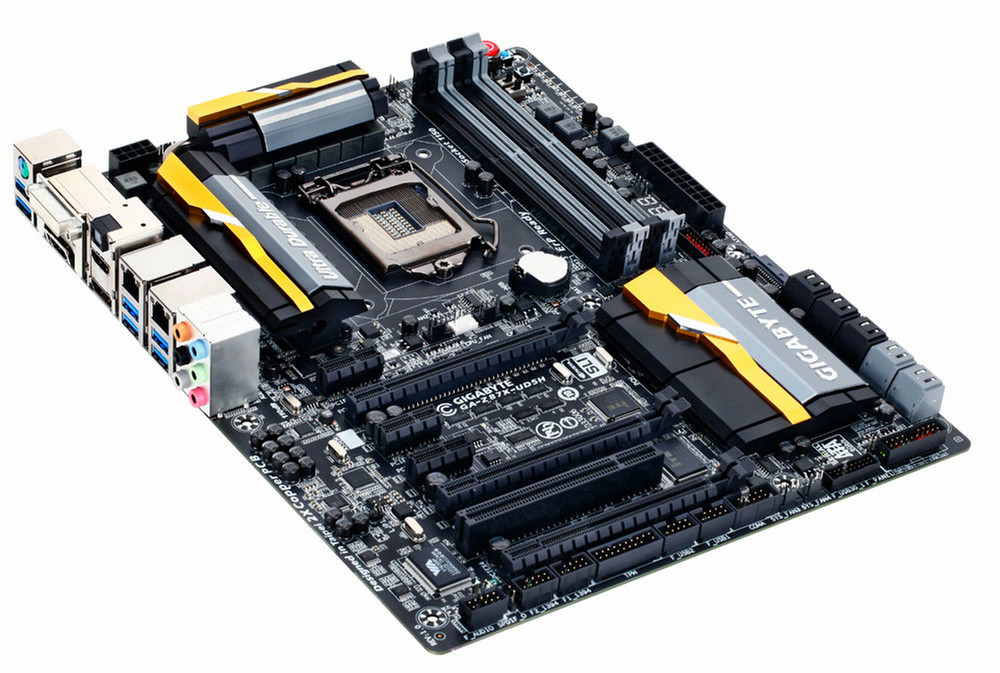

GA-Z87X-UD5H, LGA 1150, Intel Z87, 4 x DDR3 3000-1333MHz, Intel HD Graphics, 3 x PCI Express 3.0 x16 (2-Way NVIDIA SLI, 2-Way AMD CrossFire), 10 x SATA 6.0Gb/s, Dual GbE LAN, EFI DualBIOS, ATX
- Supports 4th Generation Intel® Core™ processors.
- GIGABYTE Ultra Durable™ 5 Plus Technology.
- All IR Digital Power design.
- GIGABYTE UEFI DualBIOS.
- 15µ gold plated CPU socket.
- Multi-GPU Support.
- Durable black solid capacitors.
- GIGABYTE On/Off Charge™ 2 for USB devices.
- Dual Intel® LAN with high ESD Protection.
- New Heatsink design with 7 onboard fan connectors.
- Realtek ALC898 with High Quality 110dB SNR HD audio.
- Onboard Quick Buttons.
- Supports CFOS Speed Internet Accelerator Software.
- 10 USB 3.0 ports.
GIGABYTE 8 Series Motherboards.
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.
Next Gen Intel® 8 Series Platform.
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® Z87 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles.
