Performance
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Audio output channels |
7.1 channels |
| Audio system |
High Definition Audio |
| RAID levels |
1, 5, 10 |
| Component for |
PC |
| Energy Star certified |
N |
Memory
| Supported memory clock speeds |
1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2666, 2800, 2933, 3000 MHz |
| Non-ECC |
Y |
| Supported memory types |
DDR3-SDRAM |
| Memory channels |
Dual |
| Memory slots type |
DIMM |
| Number of memory slots |
4 |
| Maximum internal memory |
32 GB |
BIOS
| BIOS memory size |
128 MB |
| BIOS type |
UEFI AMI |
| Clear CMOS jumper |
Y |
| ACPI version |
5.0 |
Back panel I/O ports
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| USB 2.0 ports quantity |
4 |
| Microphone in |
Y |
| HDMI version |
1.4a |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
Internal I/O
| USB 2.0 connectors |
3 |
| S/PDIF out connector |
Y |
| Number of SATA connectors |
6 |
| Number of Parallel ATA connectors |
1 |
| ATX Power connector (24-pin) |
Y |
| USB 3.0 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
6 |
| Supported storage drive interfaces |
Serial ATA III |
| CPU fan connector |
Y |
| Front panel audio connector |
Y |
| Serial port headers |
1 |
Graphics
| Maximum graphics adapter memory |
1000 MB |
| Parallel processing technology support |
2-Way CrossFireX |
| Maximum resolution |
4096 x 2160 pixels |
Expansion slots
| PCI slots |
2 |
| PCI Express x1 (Gen 2.x) slots |
2 |
| PCI Express x16 (Gen 2.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
Networking
| Ethernet interface type |
Gigabit Ethernet |
Processor
| Processor socket |
LGA 1150 (Socket H3) |
| Compatible processor series |
Celeron, Core i3, Core i5, Core i7, Pentium |
Weight & dimensions
| Depth |
200 mm |
| Width |
305 mm |
Additionally
| Chipset |
Intel Z97 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

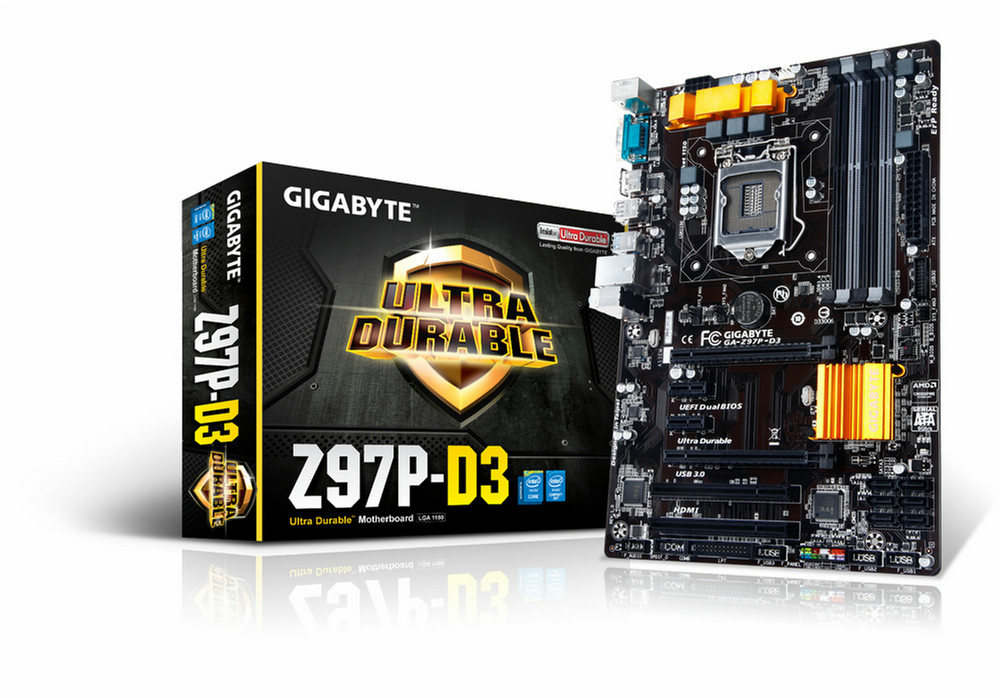

Intel Z97 Express Chipset, 4 x DDR3 DIMM up to 32 GB, Realtek ALC887, Realtek GbE LAN, ATX Form Factor
- Supports 4th and 5th Generation Intel® Core™ processors
- Extreme multi graphics support
- HD Audio support
- LAN with high ESD Protection
- GIGABYTE LAN Optimizer
- Long lifespan Durable Solid caps
- Supports HDMI output
- APP Center including EasyTune™ and Cloud Station™ utilities
- GIGABYTE UEFI DualBIOS™
