Graphics
| Graphics adapter memory type |
GDDR5 |
| Maximum graphics adapter memory |
4000 MB |
| On-board graphics adapter |
Y |
| Graphics adapter family |
NVIDIA |
Memory
| Supported memory clock speeds |
2133 MHz |
| Supported memory types |
DDR4-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
Power
| AC adapter output current |
9.23 A |
| Power supply |
180 W |
| AC adapter output voltage |
19.5 V |
| Power supply type |
External AC adapter |
Motherboard
| Number of processors supported |
1 |
Storage
| Number of storage drives supported |
2 |
| Supported storage drive types |
SSD |
| Maximum storage capacity |
1 TB |
Processor
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
15 W |
| Processor family |
Intel Core i3-6xxx |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
2.3 GHz |
Processor special features
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
Y |
| Intel Stable Image Platform Program (SIPP) |
N |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
Y |
| Intel® Smart Response Technology |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Smart Cache |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Secure Key |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel TSX-NI |
Y |
| Intel® OS Guard |
Y |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Networking
| Bluetooth version |
4.2 |
| LAN controller |
Intel I219-LM |
| Wi-Fi |
Y |
| Wi-Fi standards |
IEEE 802.11ac |
| Bluetooth |
Y |
Ports & interfaces
| USB 3.1 (3.1 Gen 2) Type-A ports quantity |
1 |
| USB 3.1 (3.1 Gen 2) Type-C ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
| DC-in jack |
Y |
Design
| Cable lock slot |
Y |
| Cable lock slot type |
Kensington |
| Cooling type |
Active |
Performance
| Noise level (idle) |
26.6 dB |
| Number of displays supported |
4 |
Expansion slots
| PCI Express slots version |
3.0 |
Additionally
| InTru™ 3D Technology |
Y |
| Chipset |
Intel HM170 |
| Mini DisplayPort quantity |
4 |
| Graphics |
GeForce GTX 950 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

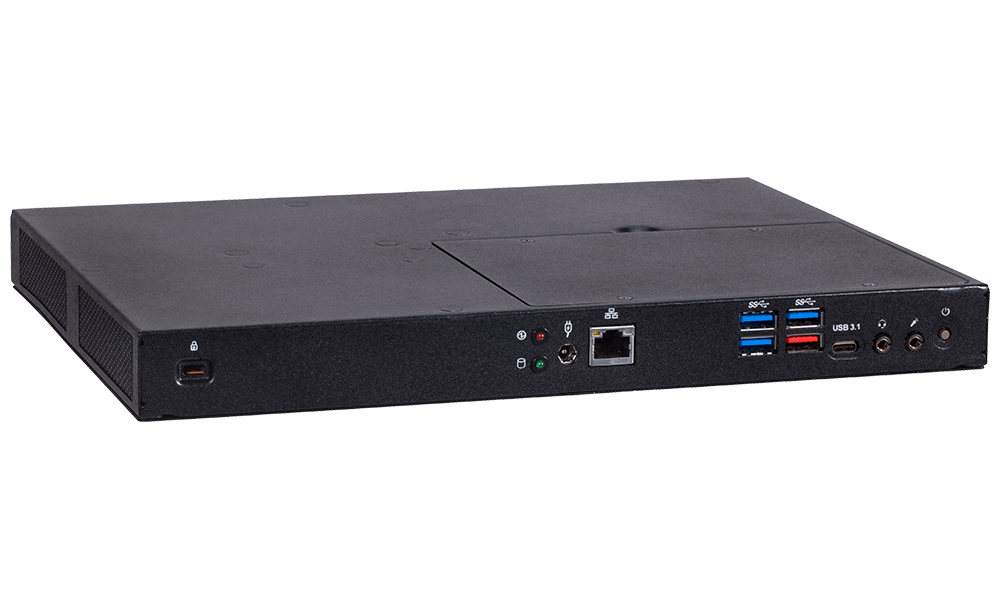

Core i3-6100H, HM170, 2x SO-DIMM DDR4, GeForce GTX 950, Realtek ALC255, Wi-Fi, 4x Mini DisplayPort, 2x USB 3.0, RJ-45, 2x USB 3.1, 300 x 30 x 230 mm
You’ve Never Seen Before
This GTX Pro is no different. It sports a high-performance Intel® Core™ Processor, Core i5 or i7 and an NVIDIA® GeForce® GTX 950. The GTX Pro improves upon its support for newer M.2 flash based storage drives by allowing users to install two of each. Users will find that a Wi-Fi module comes pre-installed on the GTX Pro for added convenience. In its latest iteration, the GTX Pro now supports the newest SO-DIMM DDR4 modules, supporting up to 32GB of memory.
Powerhouse Graphics NVIDIA GeForce GTX 950
The GIGABYTE GTX Pro is designed with a dedicated GeForce GTX 950 graphics card. Users have the option to push the envelope even further by utilizing the 4K function to experience four times the pixels used in standard HD and with the GTX Pro multiple video outputs users can have the ability to display four 4K images. Powered by NVIDIA Maxwell™ architecture, the GeForce GTX 950 delivers 3x the performance of previous-generation cards. Additionally, Maxwell™ improves greatly in three main areas of gaming which are anti-aliasing, ray tracing and most importantly, virtual reality.
Powered with Intelligence, Intel's i7 or i5 Processor
With amazing performance and stunning visuals the GIGABYTE GTX Pro, powered by 6th Gen Intel Core processors will help take things to the next level and transform how you use a PC. The performance of 6th Gen Intel Core processors enable great user experiences today and in the future, including no passwords and more natural user interfaces. 6th Gen Intel Core i7 and Core i5 processors come with Intel Turbo Boost 2.0 Technology which gives you that extra burst of performance for those jobs that require a bit more frequency.
Connecting the Future — USB3.1 in Type-A and Type-C
Versatility is one of the GTX Pro strengths, with multiple USB3.0 ports users can connect all of their devices directly to the unit. The GTX Pro offers the next generation of USB connectivity, with support for both USB3.1 standards in Type-A as well as the reversible Type-C.
The latest USB 3.1 offers a staggering 10Gb/s transfer speed, 2x faster than USB 3.0 and backward compatibility with existing USB devices.
Network Connectivity
Wireless and bluetooth are included with this PC via a M.2 PCIe expansion card for Wi-Fi. This card conforms to IEEE 802.11 a/b/g/n/ac wireless standards as well as the latest in bluetooth technology, BT4.2. For enthusiasts who prefer the traditional method to connect to the internet GIGABYTE has also included an Intel Gigabit Ethernet port, supporting 10/100/1000Mb speeds.
Quad-4K Displays
With support for 4 mini DP ports, the GTX Pro can power four 4K displays simultaneously, making it a perfect choice as a high productivity PC in professional environments.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
