Memory
| Supported memory clock speeds |
1333, 1600, 1866 MHz |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
16 GB |
Storage
| Storage drive sizes supported |
2.5 " |
| Supported storage drive types |
HDD |
| Compatible memory cards |
MicroSD (TransFlash) |
| Card reader integrated |
Y |
Power
| AC adapter output current |
2.1 A |
| AC adapter output voltage |
19 V |
| Power supply type |
External AC adapter |
Processor
| Processor boost frequency |
2.30 GHz |
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
10 W |
| Processor cores |
4 |
| Built-in processor |
Y |
| Processor frequency |
1.50 GHz |
Processor special features
| Intel Rapid Storage Technology |
N |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Smart Connect Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
N |
| Intel Stable Image Platform Program (SIPP) |
N |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
N |
| Intel 64 |
Y |
| Intel Clear Video Technology |
Y |
| Intel® Smart Response Technology |
N |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel® Secure Key |
Y |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel® OS Guard |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Ports & interfaces
| Combo headphone/mic port |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Networking
| Bluetooth version |
4.2 |
| Wi-Fi |
Y |
| Wi-Fi standards |
IEEE 802.11ac |
| Bluetooth |
Y |
Design
| Cable lock slot |
Y |
| Cable lock slot type |
Kensington |
Expansion slots
| PCI Express slots version |
2.0 |
Additionally
| InTru™ 3D Technology |
N |
| Intel HD Audio Technology |
Y |
| Graphics |
HD Graphics 500 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

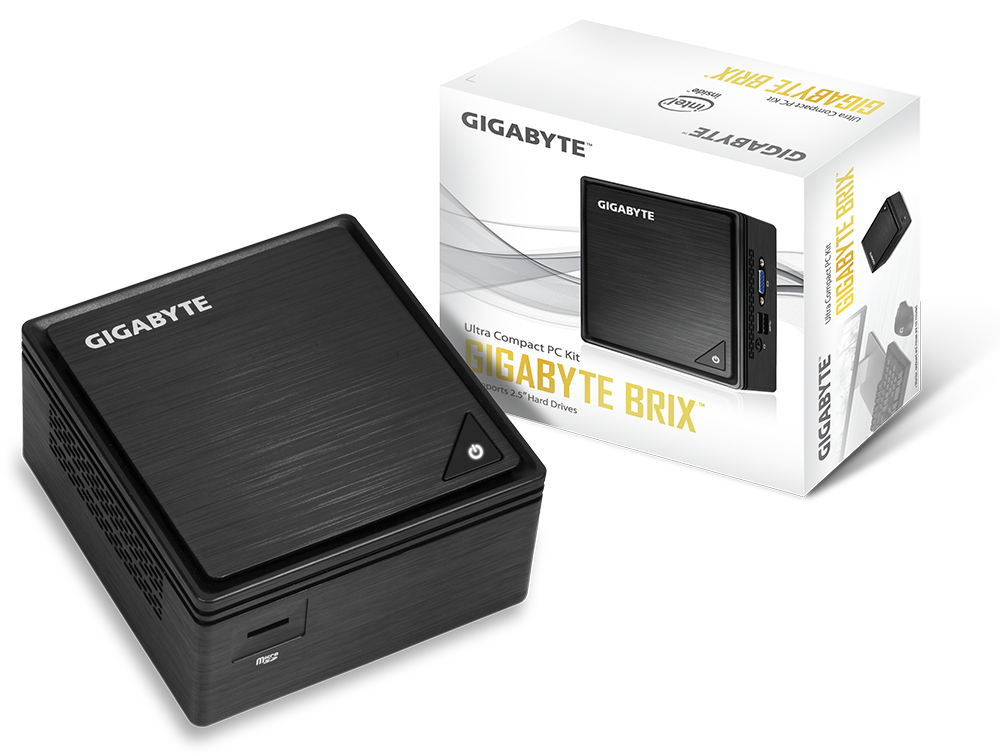

Intel Celeron Processor J3455, 2.3GHz, 4 core, 2 x SO-DIMM DDR3L, Realtek RTL8111HS, Intel HD Graphics 500, 1 x HDMI, 4 x USB 3.0, 1 x RJ45, 1 x VGA, Windows 10 64-bit
Redefining the Desktop PC
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish design based on a brushed aluminum surface chassis. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience, sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC / multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit. The BRIX is an ultra compact,versatile DIY PC kit that redefines the desktop PC in terms of miniaturization with a form factor that is small enough (56mm x 107mm x 114mm) to sit in the palm of your hand.
Intel® Celeron Processor
The new generation of Intel® Celeron Processors leverage the 14nm process technology. The new processors improve upon power consumption along with enhancements in performance for graphics and computations. For the BRIX the new Celeron processors deliver a 30% increase in performance and at least 35% better 3D graphics performance gen-over-gen. The system-on-chip (SoC) design provides an even smaller footprint than its desktop counterparts, making BRIX the ideal solution for thin clients, POS solutions, and digital signage.
Advanced Features For Power Users
The Brix is engineered to take full advantage of what the hardware and its UEFI BIOS are capable of. And therefore, it’s designed to deliver the most intuitive and integrated operating systems in the world.
SuperSpeed 4K HD Entertainment
Supporting the Newest Standards in Multimedia
GIGABYTE ensures users won’t be limited by the standards or connections on the BRIX, by including HDMI 2.0 and support for HDCP 2.2* users can rest assured that their device will be able to display content to its full potential. The BRIX supports native resolutions of 4K at 60Hz, presenting unrivaled visual clarity and stunning realism to owners of UHD displays.
Dual Display
With HDMI 2.0 and VGA output, the BRIX can power two displays simultaneously, making it a perfect choice as a high productivity PC in both working environment and home entertainment.
VESA Support
The BRIX is packed with wall mount adapter whether undergo rigorous testing for safety and reliability. The BRIX also bundled with a VESA bracket, it can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This offers a simple and elegant way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
