Memory
| Supported memory clock speeds |
2133 MHz |
| Supported memory types |
DDR4-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
2 |
| Maximum internal memory |
32 GB |
Storage
| Storage drive sizes supported |
2.5 " |
| Supported storage drive types |
HDD, SSD |
| Compatible memory cards |
SD |
| Card reader integrated |
Y |
Processor
| Processor boost frequency |
3.1 GHz |
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
15 W |
| Processor cores |
2 |
| Built-in processor |
Y |
| Processor frequency |
2.5 GHz |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Processor special features
| Intel Flex Memory Access |
Y |
| Execute Disable Bit |
Y |
| Idle States |
Y |
| Thermal Monitoring Technologies |
Y |
| Intel Trusted Execution Technology |
N |
| Intel® Small Business Advantage (Intel® SBA) |
Y |
| Intel Stable Image Platform Program (SIPP) |
N |
| Intel® Quick Sync Video Technology |
Y |
| Intel® Insider™ |
Y |
| Intel 64 |
Y |
| Intel Clear Video Technology |
Y |
| Intel® Smart Response Technology |
Y |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Identity Protection Technology (Intel® IPT) |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Secure Key |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
Y |
| Intel® Virtualization Technology (Intel® VT) |
VT-x |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel TSX-NI |
Y |
| Intel® OS Guard |
Y |
| Intel® Wireless Display (Intel® WiDi) |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Networking
| LAN controller |
Intel I219-V |
| Wi-Fi |
Y |
Ports & interfaces
| USB 3.1 (3.1 Gen 2) Type-C ports quantity |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
4 |
| HDMI ports quantity |
1 |
| DC-in jack |
Y |
Audio
| Audio system |
Realtek ALC255 |
Design
| Cable lock slot |
Y |
| Cable lock slot type |
Kensington |
Expansion slots
| PCI Express slots version |
3.0 |
Power
| Power supply type |
External AC adapter |
Additionally
| InTru™ 3D Technology |
Y |
| Mini DisplayPort quantity |
1 |
| Graphics |
HD Graphics 520 |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |

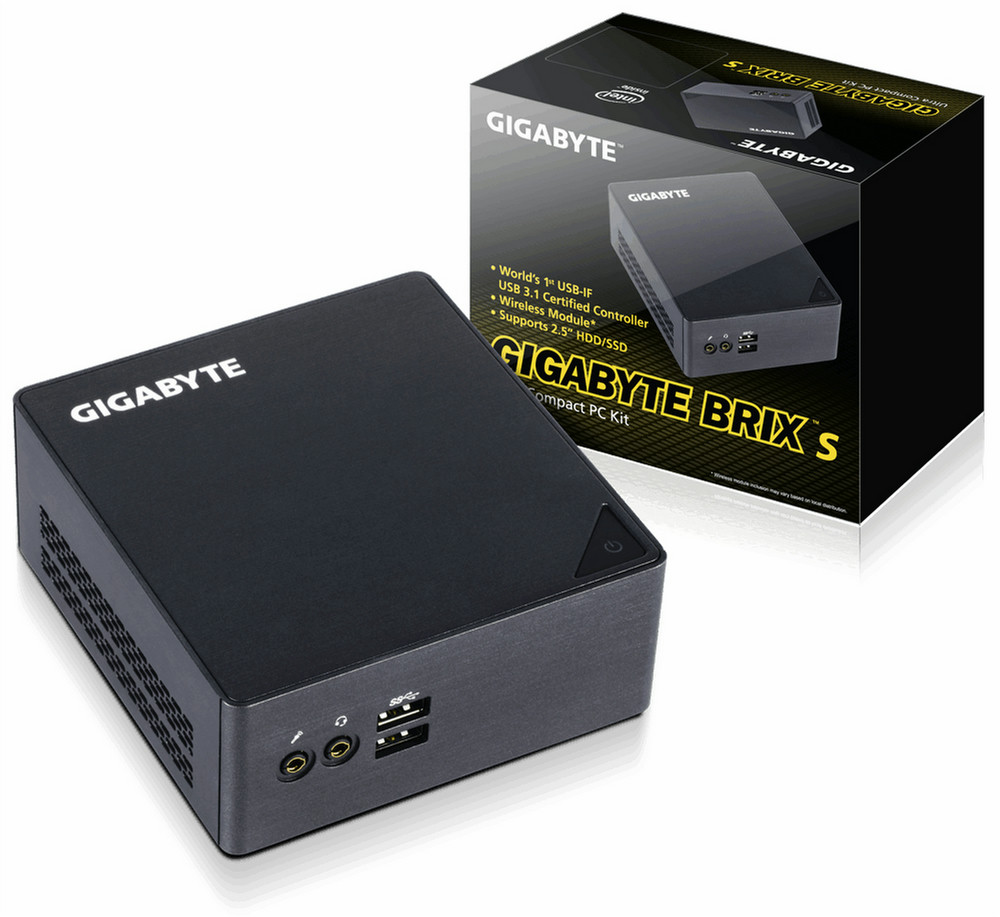

Intel Core i7-6500U 2.5GHz / 3.1GHz, 2.5” HDD/SSD, 2 x SO-DIMM DDR4, Intel HD Graphics 520, Realtek ALC255, Gigabit LAN
Redefining the Desktop PC
Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a brushed aluminum surface chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.
Dual Display
With support for HDMI and DisplayPort, the BRIX can power two displays simultaneously, making a perfect choice as a high productivity PC in professional and home environments, or in any number of industrial and commercial multi-display applications.
Extreme Intel® USB 3.1 Controller
GIGABYTE introduces the fast 10Gb/s USB3.1 Gen2 protocol to its BRIX units over the new reversible USB Type-C™ port. Powered by the Intel® USB 3.1 controller which utilizes 4 PCIe Gen 3 lanes, the GIGABYTE BRIX Type-C™ port is presented with a wide and uncompromised bandwidth to reach the limits of the USB 3.1 protocol and make back-ups or file transfers a quick operation, Additionally, USB 3.1 is backwards compatible with USB 2.0 and 3.0 making the GIGABYTE BRIX a versatile and widely compatible small form factor PC over a wider range of devices.
Connecting the Future - USB Type-C™: The World's Next Universal Connector
Reversible Dual USB Type-C™ with USB 3.1
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed. Powered by the Intel® USB 3.1 controller, this little port provides the best USB Type-C™ experience possible.
* Display feature may vary by model.
USB 3.0 and Network Connectivity
GIGABYTE BRIX™ also includes a M.2 module offering IEEE 802.11ac Wi-Fi and the latest Bluetooth 4.2, providing connectivity for low power Bluetooth devices and peripherals, as well as allowing users to easily connect mobile devices.
Flexible Compact PC Kit
The BRIX is sold as a DIY PC kit, shipping with a NGFF M.2 Wi-Fi module pre-installed, plus a power adapter and cable conforming to local standards. Requiring only system memory and M.2 SSD, the BRIX gives users the flexibility to independently choose integrated storage and system memory size, without the trouble of sourcing components that are not widely available on the retail market.
VESA Support
Bundled with a VESA bracket, the BRIX can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This makes it simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
2.5” SATA Hard Drive Support
Utilizing SATA III 6Gb/s high speed data transfer technology, the GIGABYTE BRIX s supports the installation of one 2.5” SATA hard drive and one M.2 SSD module. This allows for optimized storage configurations which combine fast SSD performance with larger capacity hard drives.
