Design
| Cooling type |
Active |
| Number of slots |
2 |
| Form factor |
ATX |
Performance
| HDCP |
Y |
| Full HD |
Y |
| TV tuner integrated |
N |
| PhysX |
Y |
| NVIDIA 3D Vision |
Y |
| NVIDIA GameWorks VR |
Y |
| NVIDIA G-SYNC |
Y |
| DirectX version |
12.0 |
| OpenGL version |
4.5 |
| Shader model version |
5.0 |
Processor
| Processor frequency |
1531 MHz |
| FireStream |
N |
| Processor boost clock speed |
1746 MHz |
| Graphics processor family |
NVIDIA |
| Maximum digital resolution |
7680 x 4320 pixels |
| CUDA |
Y |
Power
| Minimum system power supply |
400 W |
| Supplementary power connectors |
1x 8-pin |
Memory
| Memory clock speed |
8008 MHz |
| Discrete graphics adapter memory |
6 GB |
| Graphics adapter memory type |
GDDR5 |
| Memory bus |
192 bit |
Ports & interfaces
| DVI-D ports quantity |
1 |
| Interface type |
PCI Express x16 3.0 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
Additionally
| Dual-link DVI |
Y |
| Graphics controller |
GeForce GTX 1060 |

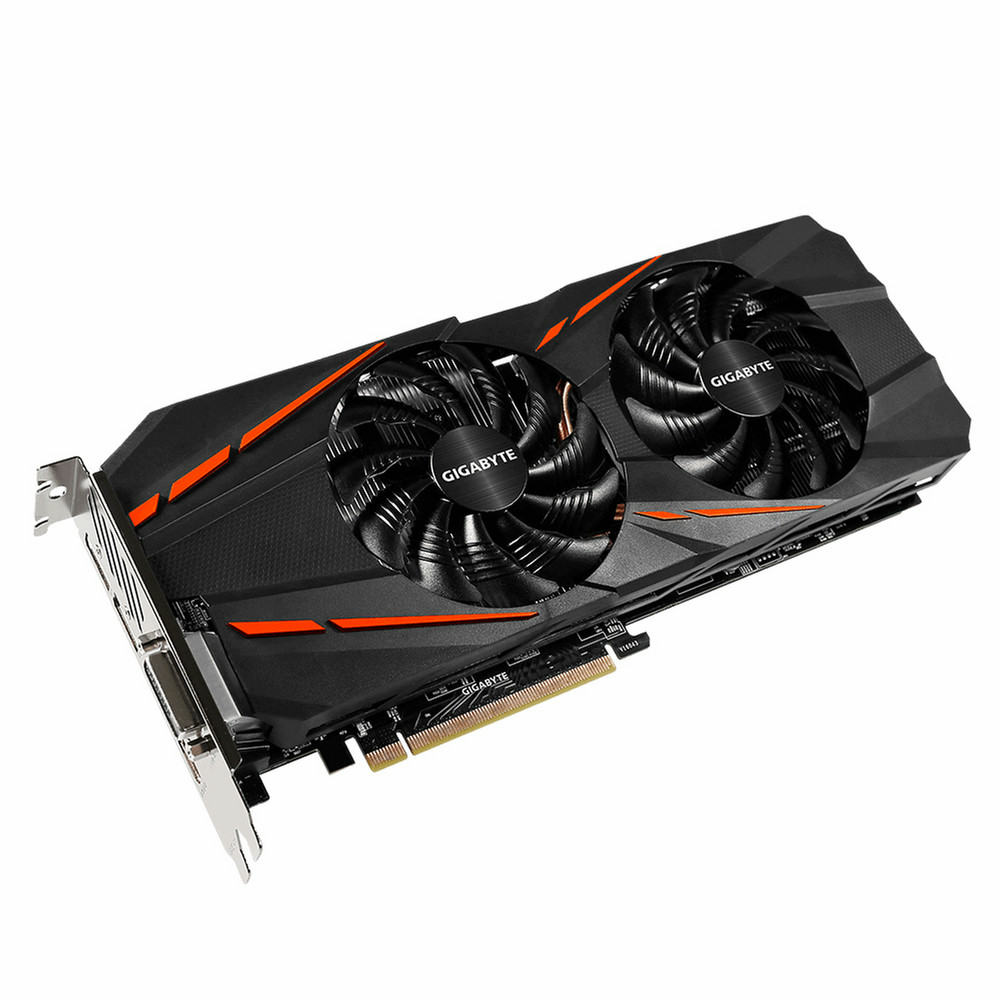

NVIDIA GeForce GTX 1060, PCI Express x16 3.0, 6GB GDDR5, 192 bits, 3 x DisplayPort, 1 x HDMI, 1 x DVI-D
The WINDFORCE 2X cooling system features two 90mm unique blade fans, 2 pure copper composite heat-pipes, alternate spinning fan design, and heat pipes direct touch technology, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
<b>Alternate Spinning Fan Design</b>
Optimize air flow by the alternate spinning fans that reduce air turbulence and effectively dissipate the heat.
<b>Unique Blade Fan Design</b>
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow by 23% over traditional fans.
<b>3D Active Fan with LED Indicators</b>
The semi-passive fans will remain off when the GPU is under a set loading or temperature for low power gaming. The LED fan indicator on the top of the graphics card provides an instant display of the fan status.
<b>Composite heat-pipes</b>
The composite heat-pipes combines both thermal conductivity and phase transition for efficiently managing the transfer of heat between two solid interfaces which increases 29% of cooling capacity.
<b>Heat Pipe Direct Touch</b>
The pure copper heat pipes are shaped to maximize the direct contact area to the GPU.
<b>16.8M Customizable Color Lighting</b>
With 16.8M customizable color options and numerous lighting effects, you could now choose the right scheme for your gaming rig through XTREME Engine utility.
<b>Stylish Metal Back Plate</b>
The metal back plate offers rigidity and protection to the structure, while adding a sleek, clean look to the product.
<b>One-click Super overclocking</b>
With a simple click on XTREME engine utility, gamers can easily tune the card to meet their various gaming requirements without any overclocking knowledge, while saving the hassle of manual adjustment.
<b>Smart Power LED indicators</b>
Be alert when PCI-E voltage is unstable with the smart power LED indicator.
<b>Ultra Durable Materials</b>
Engineered with the highest-grade chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.
<b>Built for OverClocking with 6+1 power phases</b>
Compared to reference design, the 6+1 power phases on the card make the MOSFET working at a lower temperature and provide more stable voltage output. (*reference design 3+1)
<b>Intuitive XTREME Engine Utility</b>
Adjust clock speeds, voltage, fan performance, RGB lighting effect, power target, OSD setting can be monitored and tuned in real-time according to your own preference through this intuitive interface.
