Storage
Controller interface type |
ATA 100 IDE |
Controller (2nd) interface type |
SCSI Ultra 320 |
Number of hard drives supported |
8 |
Processor
Supported processor frequency (max) |
3.6 GHz |
Graphics
Maximum graphics adapter memory |
8 MB |
Memory
Number of DIMM slots |
6 |
ECC |
Y |
Maximum internal memory |
16 GB |
Other features
Expansion slots |
2xPCI-X 64bit/66-100MHz FH, \n1xPCI 64bit/66-100MHZ LP, \n1xPCI 64bit/133MHZ |
Networking
Networking features |
Gigabit Ethernet |
Additionally
Chipset |
Intel E7520 |
Graphics |
Rage XL |
Ethernet LAN (RJ-45) ports quantity |
2 |

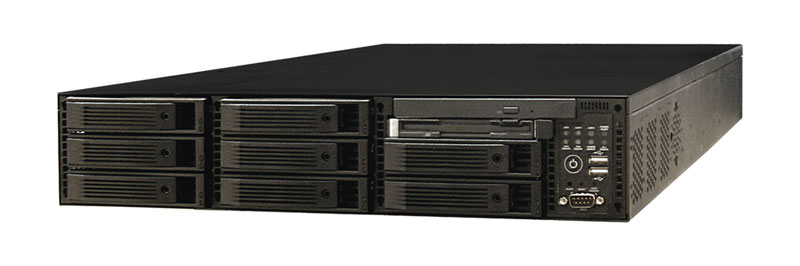

GS-SR295, Intel E7520 MCH chipset, Intel Xeon, Socket 604, 800MHz FSB, 3.6GHz, DDR-266/333, Award BIOS, 8 SCSI hot-swap HDD tray, 500W
-Intel®E7520 MCH chipset, ICH5R IO controller hub, 6700PXH 64 bit PCI-X hub, LSI® 1030 dual channel U320 SCSI controller.
-Support for Zero-Channel RAID w/ LSI MegaRAID 320-0 ZCR Card (Card NOT included) with Green PCI-X Slot on board.
-Dual New Intel® Xeon™(Nocona) CPUs (Socket 604/800MHz FSB/ 3.6GHz)
6 x Registered DDR-266/333 with max. 16GBof memory(DDR333)/24GB of memory(DDR266).
-Supports ECC/ registered DDR200/266/333.
-Licensed Award BIOS with 4Mb Flash ROM.
-2 PCI-X 64bit/66~100MHz Full-Height Slot, 1 PCI 64bit/66~100MHz & 1 PCI 64bit/133MHz Low-Profile Slots, 1 ZCR riser on MB support PCI-X LSI® ZCR extension card.
-Optional LSI® 320-0 Zero Channel RAID PCI-X extension card.
-Dual Broadcom® BCM5721 Gigabit Ethernet controller.
-8 SCSI hot-swap HDD tray and one set slim type CD-ROM & Floppy drives.
-Redundant Power supply 500W.
