Design
| Cooling type |
Active |
| Number of slots |
2 |
| Form factor |
ATX |
Ports & interfaces
| DVI-I ports quantity |
1 |
| Interface type |
PCI Express 3.0 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
3 |
| DVI-D ports quantity |
1 |
Performance
| Full HD |
Y |
| TV tuner integrated |
N |
| PhysX |
Y |
| NVIDIA 3D Vision |
Y |
| DirectX version |
12.0 |
| OpenGL version |
4.4 |
| NVIDIA GameWorks VR |
N |
| NVIDIA G-SYNC |
Y |
Processor
| Processor frequency |
1241 MHz |
| Processor boost clock speed |
1304 MHz |
| Maximum displays per videocard |
4 |
| Maximum digital resolution |
4096 x 2160 pixels |
| CUDA |
Y |
| Graphics processor family |
NVIDIA |
| Maximum analog resolution |
2048 x 1536 pixels |
Power
| Minimum system power supply |
400 W |
| Supplementary power connectors |
1x 6-pin, 1x 8-pin |
Memory
| Discrete graphics adapter memory |
4 GB |
| Graphics adapter memory type |
GDDR5 |
| Memory bus |
128 bit |
| Memory clock speed |
7010 MHz |
Additionally
| Dual-link DVI |
Y |
| Graphics controller |
GeForce GTX 960 |
GeForce GTX 960, 4 GB GDDR5, PCI-E 3.0, DVI-I, DVI-D, HDMI, DisplayPort x 3

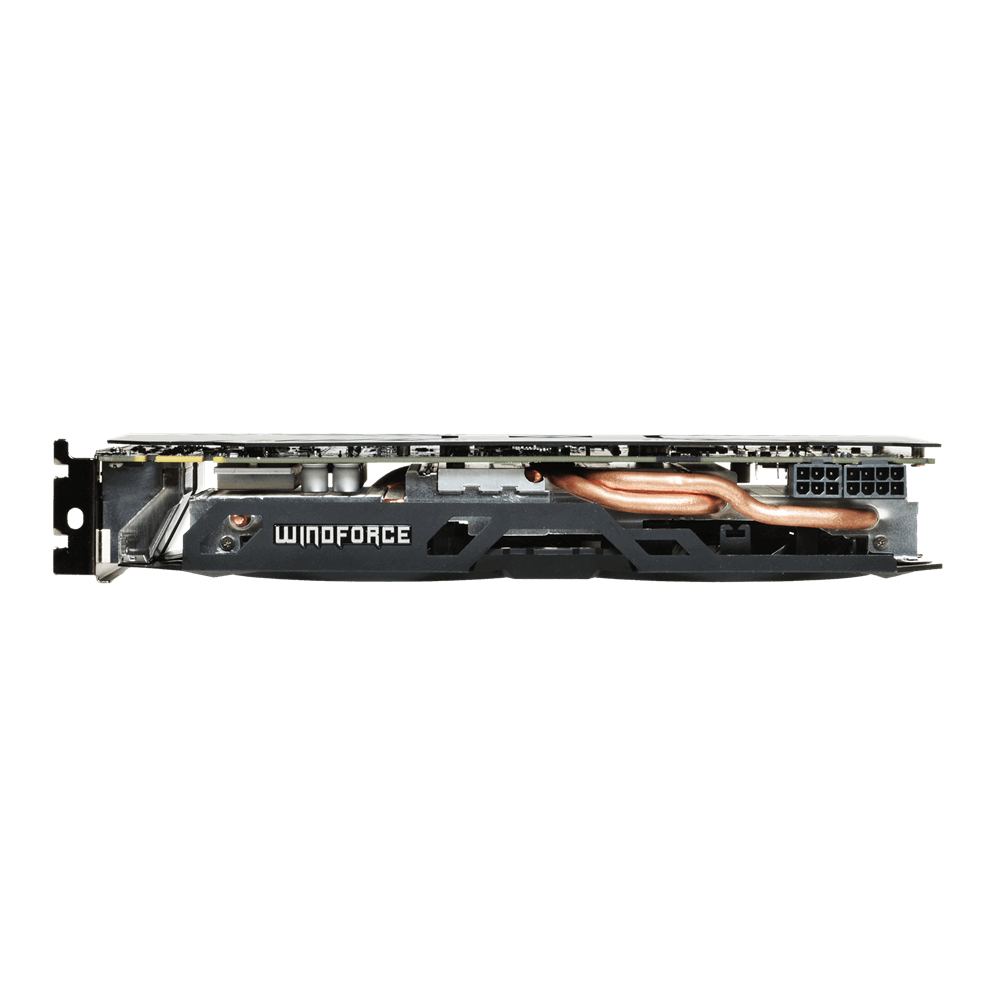

<b>WINDFORCE 2X With 90mm Unique Blade Fan</b>
<b>WINDFORCE 2X With Unique Blade Fan</b>
Equipped with two 90mm unique blade fan and three copper heat pipes. The airflow is spilt through the triangle design at the fan edge, and is guided smoothly through the fan by special 3D stripe curve design. At the same time, it effectively enhanced the cooling capacity while reducing air turbulence.
<b>0dB semi-passive fans</b>
Featuring the new semi-passive fan design. When the GPU is under a set loading or temperature, the fans will remain off, creating an absolutely silent environment for gamers.
<b>Flex Display technology</b>
GIGABYTE Flex display technology(patent-pending) can automatically detect any connected monitors and achieve multi-display gaming up to 4 monitors at the same time by using various output groups. Users could enjoy the best gaming experience in ultra HD resolution with extended flexibility in arranging monitor configurations and making future system upgrade extremely easy.
<b>Ultra Durable VGA™</b>
<b>Lower GPU Temperature</b>
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.
<b>Better Overclocking Capability</b>
Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.
<b>Decrease Power Switching Loss</b>
Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.
