Ports & interfaces
| Interface type |
PCI Express 3.0 |
| HDMI ports quantity |
1 |
| DVI-I ports quantity |
1 |
| DisplayPorts quantity |
3 |
| DVI-D ports quantity |
1 |
Performance
| OpenGL version |
4.4 |
| Shader model version |
N |
| TV tuner integrated |
N |
| PhysX |
N |
| DirectX version |
12.0 |
Memory
| Discrete graphics adapter memory |
4 GB |
| Graphics adapter memory type |
GDDR5 |
| Memory bus |
128 bit |
| Memory clock speed |
7010 MHz |
Processor
| Graphics processor family |
NVIDIA |
| Maximum analog resolution |
2048 x 1536 pixels |
| Processor frequency |
1216 MHz |
| Processor boost clock speed |
1279 MHz |
| Maximum displays per videocard |
4 |
| Maximum digital resolution |
4096 x 2160 pixels |
| CUDA |
N |
Design
| Cooling type |
Active |
| Form factor |
ATX |
Power
| Minimum system power supply |
400 W |
| Supplementary power connectors |
1x 6-pin, 1x 8-pin |
Additionally
| Dual-link DVI |
Y |
| Graphics controller |
GeForce GTX 960 |

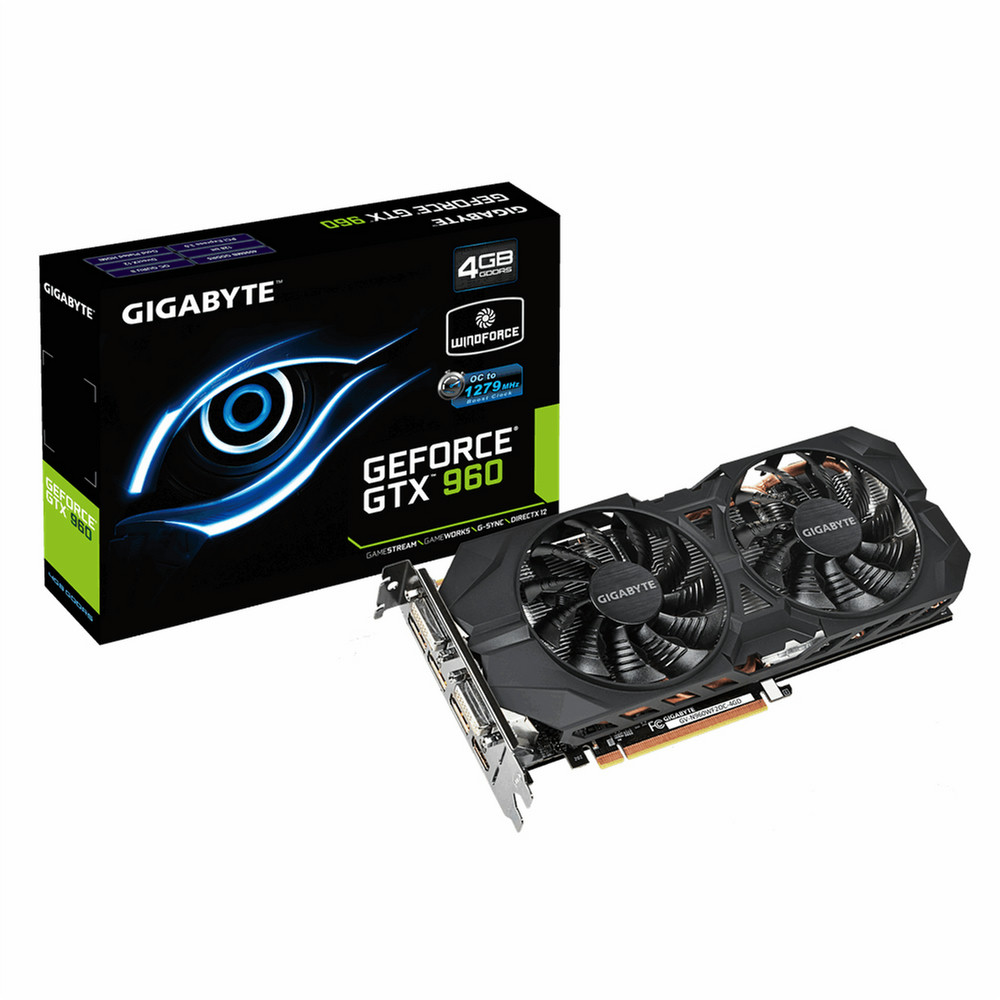

NVIDIA GeForce GTX 960, 4 GB GDDR5 7010 MHz, 128 bit, PCI-E 3.0, DL DVI-I, DL DVI-D, HDMI, DP x 3
- Powered by NVIDIA GeForce GTX 960 GPU
- Integrated with industry's best 4GB GDDR5 memory 128-bit memory interface
- BASE: 1216 MHz / BOOST: 1279 MHz (1241 / 1304 MHz in OC Mode)
- Features Dual-link DVI-I / Dual-link DVI-D / HDMI / DisplayPort*3
- System power supply requirement: 400W(with one 6-pin & one 8-pin external power connectors)
<b>WINDFORCE 2X cooling system</b>
GIGABYTE introduces WINDFORCE, the latest cooling technology that differentiates the brand’s graphics cards from the rest. GIGABYTE understands that a fan is crucial to the graphics card, so only the fan with the most efficiency is selected for WINDFORCE.
<b>Unique Blade Fan Design</b>
The airflow is spilt through the triangle design at the fan edge, and is guided smoothly through the fan by special 3D stripe curve design. At the same time, it effectively enhanced the cooling capacity while reducing air turbulence.
<b>0dB Semi-Passive Fan</b>
Featuring the new semi-passive fan design. When the GPU is under a set loading or temperature, the fans will remain off, creating an absolutely silent environment for gamers.
<b>Heat Pipe Direct Touch</b>
Equipped with pure copper heat pipe direct touch (HDT) technology, delivering superior cooling capacity and heat transfer efficiency at an extremely low noise level.
<b>Stylish Metal Back Plate</b>
Glorious black metal back plate inspires passion for gaming.
<b>Flex Display technology</b>
GIGABYTE Flex display technology(patent-pending) can automatically detect any connected monitors and achieve multi-display gaming up to 4 monitors at the same time by using various output groups. Users could enjoy the best gaming experience in ultra HD resolution with extended flexibility in arranging monitor configurations and making future system upgrade extremely easy.
<b>Lower GPU Temperature</b>
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.
<b>Better Overclocking Capability</b>
Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.
<b>Ultra Durable VGA</b>
<b>Lower GPU Temperature</b>
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.
<b>Better Overclocking Capability</b>
Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.
<b>Decrease Power Switching Loss</b>
Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.
