Processor
| Processor frequency |
780 MHz |
| Graphics processor family |
AMD |
| CUDA |
N |
| Maximum analog resolution |
2048 x 1536 pixels |
| Maximum digital resolution |
2560 x 1600 pixels |
| Maximum displays per videocard |
2 |
| Processor boost clock speed |
900 MHz |
Memory
| Graphics adapter memory type |
GDDR3 |
| Memory bus |
128 bit |
| Memory clock speed |
1800 MHz |
| Discrete graphics adapter memory |
2 GB |
Performance
| DirectX version |
11.2 |
| OpenGL version |
4.2 |
| PhysX |
N |
| HD3D Technology |
Y |
| TV tuner integrated |
N |
| Full HD |
Y |
Ports & interfaces
| DVI-D ports quantity |
1 |
| Interface type |
PCI Express 3.0 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Power
| Minimum system power supply |
400 W |
Design
| Form factor |
ATX |
| Cooling type |
Active |
Additionally
| Graphics controller |
Radeon R7 240 |

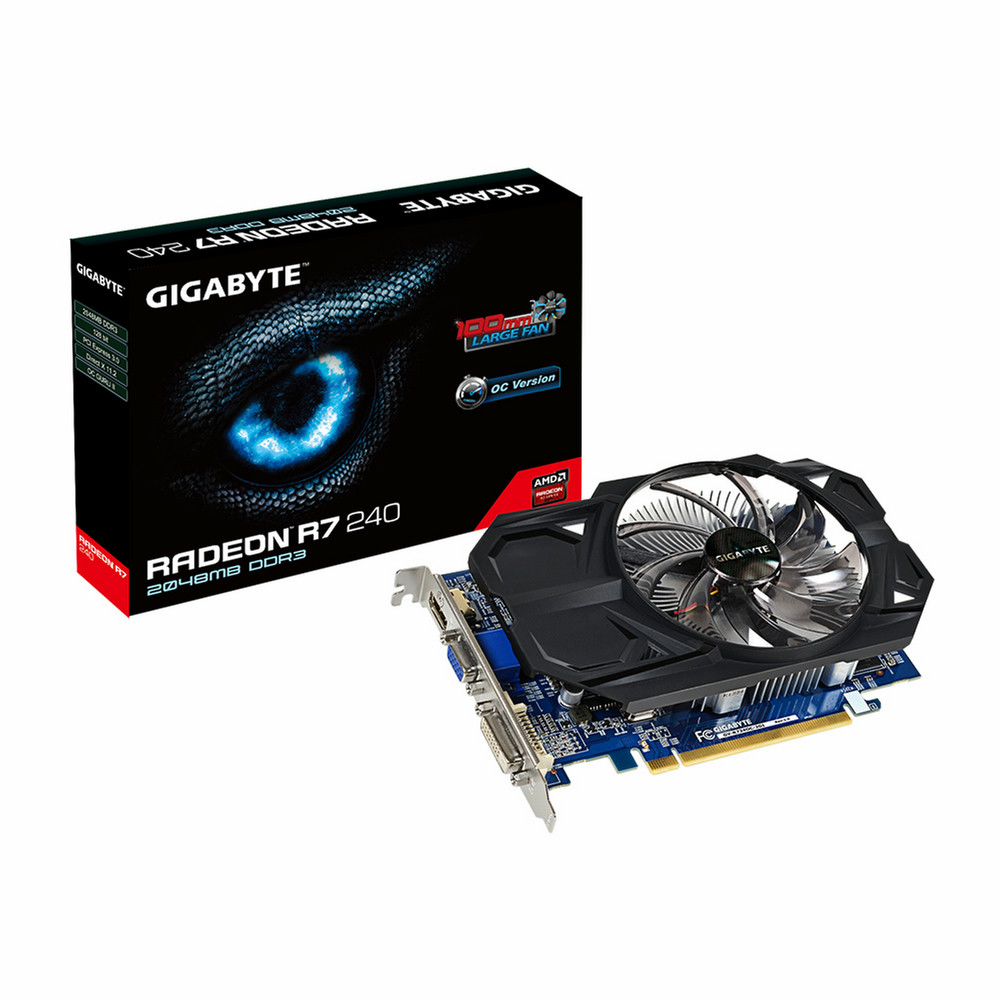

Radeon R7 240, 900MHz, 2GB, 1800MHz DDR3, PCI-E, DVI-D, HDMI, D-Sub, ATX
- Powered by AMD Radeon R7 240 GPU
- Integrated with the first 2048MB DDR3 memory and 128-bit memory interface
- OC Edition - Core Clock: 900 MHz(Std 780 MHz)
- Features Single-Link DVI-D / HDMI / D-Sub
- Support PCI Express 3.0 x8 bus interface
- System power supply requirement: 400W
Ultra Durable 2
- Ultra Cooling - Low RDS(on) MOSFET Design
- Low Power Loss - Ferrite Core Choke Design
- Longer Life - All-Solid Capacitor Design
GIGABYTE custom-designed 10 cm cooler
As opposed to the stereotype, GIGABYTE is able to maximize fan size to 10cm with the latest cooling design. With a 10cm fan, the card is virtually silent that its noise level runs much lower
Gold plated HDMI
Gold plated, durable large contact area connectors have been used for optimum signal transfer between connections
OC GURU ll
Brand-new instinctive user interface, easier to monitoring and adjusting all important settings. Users can set up MONITORING, GPU CLOCK, MEMORY CLOCK, FAN, GPU VOLTAGE, Memory VOLTAGE, OSD, ONLINE SUPPORT and update driver, BIOS directly.
