Design
| Motherboard form factor |
Micro ATX |
| Component for |
Server |
Memory
| Supported memory clock speeds |
1866, 2133 MHz |
| Supported memory types |
DDR4-SDRAM |
| Memory voltage |
1.2 V |
| Memory channels |
Dual |
| Supported UDIMM module capacity |
16GB |
| Number of DIMM slots |
4 |
Back panel I/O ports
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
3 |
Internal I/O
| ATX Power connector (24-pin) |
Y |
| TPM connector |
Y |
| Number of SATA III connectors |
6 |
| Clear CMOS button |
Y |
| CPU fan connector |
Y |
| Number of COM connectors |
1 |
| Chassis intrusion connector |
Y |
| Number of chassis fan connectors |
1 |
| USB 2.0 connectors |
1 |
Expansion slots
| PCI Express x8 (Gen 3.x) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
Processor
| Intel Xeon series |
E3-1200 |
| Processor manufacturer |
Intel |
Networking
| LAN controller |
Intel I210 |
| Wi-Fi |
N |
Graphics
| Discrete graphics support |
Y |
Storage controllers
| Hard drive interface |
Serial ATA III |
Packaging content
| Quick installation guide |
Y |
Additionally
| Chipset |
Intel C232 |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

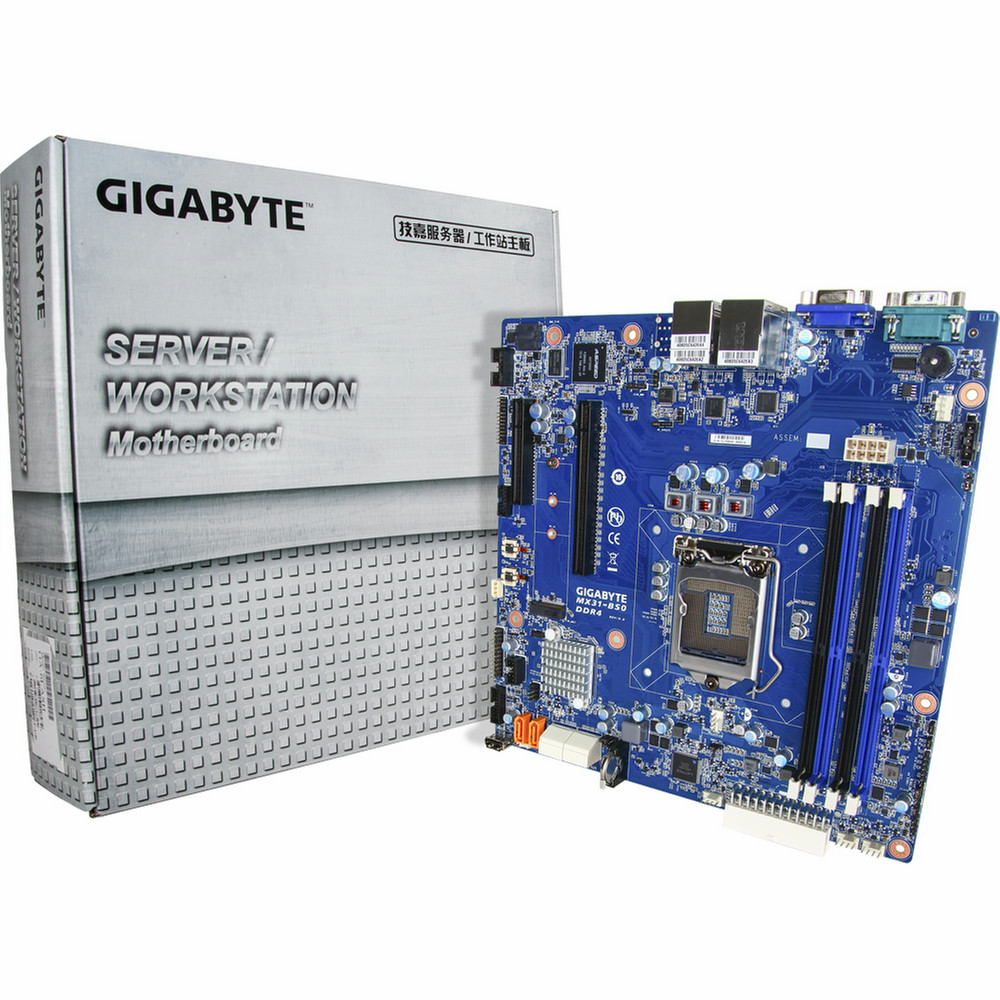

Xeon® E3-1200, 4xDDR4 2133MHz, 2xGbE LAN, 6xSATAIII, 1xPCIx16, Aspeed® AST2400, microATX
Supports the Intel Xeon E3-1200 V5 Processors
Formerly known as Greenlow, this new generation of single socket server and workstation processors is based on the 14nm process technology but comes with the new Skylake microarchitecture.
Among the main features of this new product family is the adoption of the DDR4 memory technology within the Xeon E3 line of processors, which brings a significant memory speed and capacity boost over the previous generation (up to 64GB at 2133MHz). The other big new feature is the increase of the number and speed of PCIe lanes available from 8 Gen2 lanes to up to 20 Gen3 lanes, which allows much wider board configuration possibilities.
M.2 Slot Onboard
The MX31-BS0 comes equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.
The M.2 slot of this motherboard supports cards up to 80mm length and 20mm width, and the following specifications:
M.2 PCIe SSD Cards up to 10Gb/s
M.2 SATA SSD Cards up to 6Gb/s
DDR4 Memory Support
The Intel Xeon E3-1200 V5 product family is the first generation of Xeon E3 processors to support the DDR4 memory technology. Compared to DDR3, this new generation brings:
