Design
| Cooling type |
Active |
| Form factor |
ATX |
Performance
| HDCP |
N |
| Full HD |
Y |
| TV tuner integrated |
N |
| DirectX version |
12.0 |
| OpenGL version |
4.5 |
| PhysX |
N |
Ports & interfaces
| DVI-I ports quantity |
1 |
| Interface type |
PCI Express 3.0 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| DVI-D ports quantity |
1 |
Memory
| Discrete graphics adapter memory |
2 GB |
| Graphics adapter memory type |
GDDR5 |
| Memory bus |
128 bit |
| Memory clock speed |
6500 MHz |
Processor
| Graphics processor family |
AMD |
| Maximum analog resolution |
2048 x 1536 pixels |
| Processor frequency |
1050 MHz |
| Maximum displays per videocard |
4 |
| Maximum digital resolution |
4096 x 2160 pixels |
Power
| Minimum system power supply |
500 W |
Additionally
| Dual-link DVI |
Y |
| Graphics controller |
Radeon R7 360 |
PCI-E 3.0, 1050 MHz, 6500 MHz, 2 GB GDDR 5, 128 bit

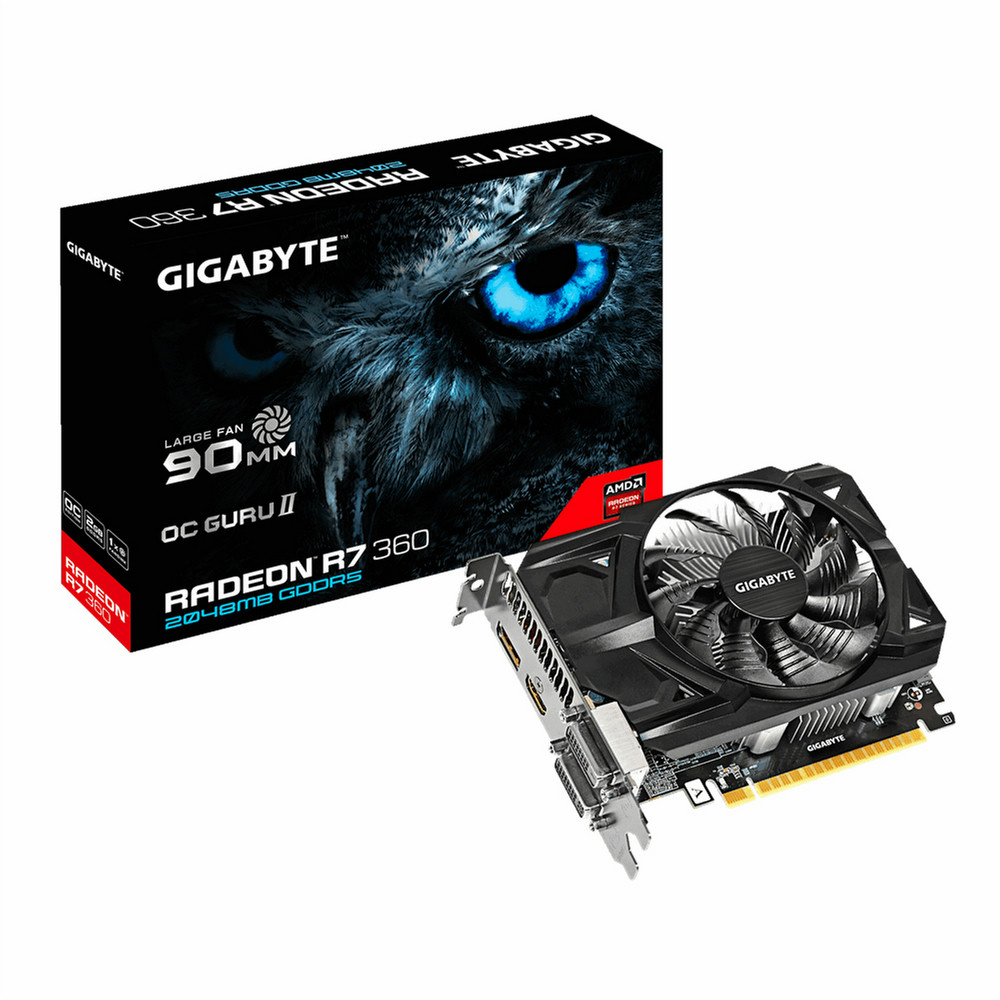

- Powered by AMD Radeon™ R7 360 GPU
- Integrated with industry's best 2GB GDDR5 memory 128-bit memory interface
- Core Clock: 1050MHz
- Features Dual-link DVI-I / DVI-D / HDMI / DisplayPort
- System power supply requirement: 500W (with one 6-pin external power connector)
<b>GIGABYTE custom-designed 90mm cooler</b>
GIGABYTE custom-designed 90 mm cooler, with air flow optimized cover and aluminum base. The cooler can dissipate heat effectively from the GPU while keeping the fan at lower speed and noise.
<b>Unique Blade Fan Design</b>
The airflow is spilt through the triangle design at the fan edge, and is guided smoothly through the fan by special 3D stripe curve design. At the same time, it effectively enhanced the cooling capacity while reducing air turbulence.
<b>Ultra Cooling</b>
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
<b>Low Power Loss</b>
Ferrite Core Chokes hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
<b>Longer Life</b>
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
<b>OC GURU ll</b>
Brand-new intuitive user interface helps you easily modify important settings and directly update driver and BIOS. Clock speeds, voltage, fan performance, and OSD setting can be monitored and tuned in real-time according to your own preference.
