Technical details
| Height (min) |
160 mm |
| Height (max) |
1240 mm |
| Number of legs |
3 |
| Tilt angle |
24 - 80 ° |
| Maximum weight capacity |
7 kg |
Weight & dimensions
| Folded length |
430 mm |
| Height (center column not extended) |
973 mm |
24°, 55°, 80°, 16 - 124 cm, Basalt, 1/4", 3/8", 1.2 kg

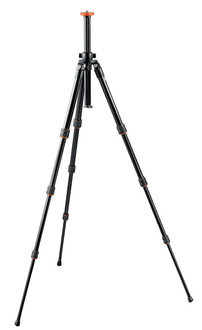

An excellent choice for MiniDV, compact digital cameras and DSLRs with 135mm lenses, up to a maximum of 200mm. Offers an excellent maximum load capacity and good torsion rigidity at a reduced weight. Available at standard height. Series 1 is the ideal solution for photographers on the move or when space and weight are key factors. All series 1 tripods (geared version excluded) now feature a new third ultra low leg spread for ultra low ground position to take full advantage of the Ground Level Set.
<b>ground level set</b>
This new feature allows you to remove the centre column to save weight and get the camera closer to the ground. Uses existing components: the upper disc with reversible 1/4' - 3/8' bolt and the column hook assembly: Remove column and fix the disk directly to the upper casting using the column hook. No tools needed.
<b>G-lock</b>
G-Lock is the new Gitzo leg locking system. The locking mechanism has been completely redesigned in order to achieve a 20% increase in rigidity, faster operation and stronger, safer locking. G-Lock's special design also provides a 'gravity lock' effect: the higher the load applied vertically to the leg, the stronger the lock.
<b>rapid column</b>
The centre column locking collar above the tripod shoulder makes it easier to adjust the column quickly. Series 1 and above are built with an anti-rotation grooved centre column for improved stability.
<b>reversible column</b>
The rapid column can easily be inverted for an alternative shooting angle or low level macro work.
<b>hook</b>
This built-in accessory allows you to hang a stabilizing weight (e.g. a full camera bag or a sand/water bag) from the bottom of the tripod centre column. Useful with long/heavy lenses, on uneven ground or in windy conditions.
<b>ALR</b>
We have introduced a new Anti Leg Rotation system, which means the tripod can be opened in less than 15 seconds. Simply loosen all the twist locks on each leg at the same time, then pull the leg down and tighten the locks individually.
<b>3 positions leg angle</b>
This feature allows you to position independently the tripod legs in three positions.
<b>high performance basalt</b>
Gitzo introduces the second High Performance generation of basalt fiber tubes. Thanks to a radical innovation in theproduction process, the new tube is now up to 22% stronger than its predecessor. Made by the same technology used for 6X carbon fiber tubes, it offers a high thermal and dimensional stability and good vibration absorption. It is an intermediate solution between 6X and aluminum tubes, however by getting closer to the Gitzo 6X unmatched performances, it is a high quality alternative to competitors' carbon fiber tripods.
