Technical details
| Height (min) |
170 mm |
| Height (max) |
1610 mm |
| Number of legs |
3 |
| Tilt angle |
24 - 80 ° |
| Maximum weight capacity |
12 kg |
Weight & dimensions
| Folded length |
650 mm |
| Height (center column not extended) |
1380 mm |
24°, 55°, 80°, 17 - 161 cm, 1/4", 3/8", Carbon Fiber 6X, 1.45 kg

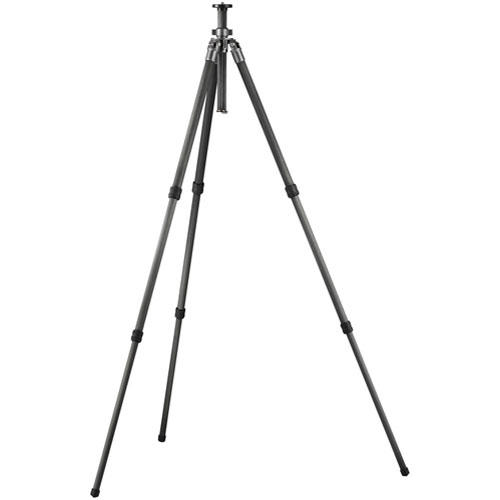

Recommended for lightweight camcorders, spotting scopes and DSLRs with 200mm lenses, up to a 300mm maximum. Excellent maximum load capacity and good torsion rigidity, available in 3- and 4-section models at standard and eye level heights. Series 2 is the ideal solution for photographers that are looking for a solid tripod without sacrificing weight. All series 2 tripods (geared version excluded) now feature a new magnesium upper casting for a further weight reduction and a new third ultra low leg spread to take full advantage of the Ground Level Set. Series 2 tripods are also provided with the new Power Disc for a safer head lock.
<b>ground level set</b>
This new feature allows you to remove the center column to save weight and get the camera closer to the ground. Uses existing components: the upper disc with reversible 1/4' - 3/8' bolt and the column hook assembly: Remove column and fix the disk directly to the upper casting using the column hook. No tools needed.
<b>rapid column</b>
The center column locking collar above the tripod shoulder makes it easier to adjust the column quickly. Series 1 and above are built with an anti-rotation grooved center column for improved stability.
<b>reversible column</b>
The rapid column can easily be inverted for an alternative shooting angle or low level macro work.
<b>power disc</b>
'The new tripod upper disc is called ''Power Disc''. It is made of machined solid aluminum and it now features two locking screws, one to lock the head, the other to safely lock the disc onto the column. The ''Power Disc'' gives a rock solid connection of the whole system for additional safety and stability.'
<b>Anti Leg Rotation</b>
We have introduced a new Anti Leg Rotation (ALR) system, which means the tripod can be opened in less than 15 seconds. Simply loosen all the twist locks on each leg at the same time, then pull the leg down and tighten the locks individually.
<b>three positions leg angle</b>
This feature allows you to independently position the tripod legs in three positions.
