Ports & interfaces
| Wi-Fi |
N |
| eSATA |
Y |
| FireWire 800 |
Y |
| USB version |
3.0 (3.1 Gen 1) |
| USB connector type |
USB Type-A |
| USB connectivity |
Y |
Technical details
| Near Field Communication (NFC) |
N |
Power
| Built-in battery |
N |
| Input frequency |
50/60 Hz |
| External power adapter |
N |
| Input voltage |
100-240 V |
| USB powered |
N |
Performance
| RAID support |
Y |
| Card reader integrated |
N |
| Data transfer rate |
6000 Mbit/s |
| eSATA data transfer rates |
6 Gbit/s |
| FireWire data transfer rates |
800 Mbit/s |
| USB data transfer rates |
5000 Mbit/s |
| Mac operating systems supported |
Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
Hard drive
| Hard drive capacity |
8000 GB |
| Hard drive speed |
7200 RPM |
Additionally
| Wireless technologies |
Wired |

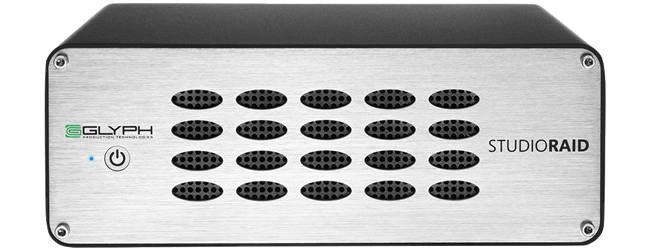

StudioRAID, 8 TB, 7200 rpm, USB 3.0, FireWire 800, eSATA, 3.63 kg
<b>Achieve speeds over 350 MB/s</b>
The all-new StudioRAID is a high performance, ultra-reliable hardware RAID hard drive with USB 3.0, FireWire, and eSATA connectivity, supporting RAID 0 and RAID 1 modes. A temperature-controlled intelligent fan complements the StudioRAID’s auto-sensing power supply for the best of speed and reliability.
<b>Quick and Easy Hardware Configuration</b>
RAID 1 offers data redundancy and real-time backup by writing the same data to the two hard drives at the same time. Should a drive failure happen, data is still available on the remaining drive.
RAID 0 (striping) increases the performance of the drive system by spreading the data across two drives. RAID 0 is a proven technology for editing video, working with huge graphics files, sound libraries, and streaming instruments that play hundreds of samples simultaneously. RAID 0 is the default shipping drive mode.
<b>New York Based Quality</b>
First we select the highest quality components available. Then we assemble the drives in our US factory, and perform regimented testing on every unit before it ships to you.
<b>Create With Confidence</b>
This product is backed with a full 3 year warranty, including 2 years of basic data recovery, and one year of advance replacement service.
<b>Smarter, Quieter, More Efficient Cooling</b>
The StudioRAID uses a temperature-controlled fan making it overall quieter than our previous designs while still offering proper cooling. The case is designed with front-panel ventilation holes to draw cool air in, while exhausting warm air out the back - critical to the performance and reliability of the components.
<b>Universal, Auto-Sensing Internal Power</b>
External power adapters are easily misplaced, accidentally unplugged, and take up valuable outlet space. The StudioRAID uses an industry-standard power cord and a pro-quality internal power supply for the most efficient, reliable power source possible. StudioRAID will also sense when you connect over USB or FireWire, and automatically power on.
<b>Disk Health Monitoring</b>
The new StudioRAID includes upgraded disk monitoring features designed to keep your data safe. Should your drive begin to exhibit behavior indicating an imminent drive failure, the multifunction LED will alert you via a red light. Additionally, to safeguard against accidentally powering off your StudioRAID, the intelligent power switch must be held for 3 seconds to power off the drive.
<b>Rackmount Kit Available</b>
The GPT Rackmount Kit transforms your StudioRAID into a rack-mount hard drive. The rackmount kit accessory is capable of mounting one or two Studio-series drives.
