Ports & interfaces
| Audio RCA inputs |
1 |
| Audio RCA outputs |
1 |
| USB 2.0 ports quantity |
2 |
| eSATA ports quantity |
1 |
| RAID levels |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) output ports |
1 |
| DC-in jack |
Y |
Storage
| Hard drive size |
3.5 " |
| Card reader integrated |
N |
| Number of hard drives supported |
4 |
| Maximum storage capacity |
16 TB |
| RAID support |
Y |
| Built-in optical drive |
N |
| Hard drive interface |
Serial ATA |
Packaging content
| Cables included |
AC |
| Handheld remote control |
Y |
| Quick installation guide |
Y |
Features
| Rack capacity |
1U |
| Reset button |
Y |
| LED indicators |
Y |
| RoHS compliance |
Y |
| Certification |
FCC: Part 15, (CFR 47) Class B\nCE: EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 60950\nRCM: AS/NZS CISPR22, AS/NZS CISPR24, AS/NZS 60950\nTTE, WEEE |
| Rack mounting |
Y |
Performance
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Alarm input channels |
4 |
| Alarm output channels |
2 |
| Maximum resolution |
1920 x 1080 pixels |
| Audio formats supported |
G.711 |
| Video formats supported |
H.264 |
| DHCP client |
Y |
| DHCP server |
Y |
| Video motion detection |
Y |
| PTZ control (Pan/Tilt/Zoom) |
Y |
| Maximum frame rate |
30 fps |
| Supported resolutions |
1920x1080\n1280x720 |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Backup function |
Y |
| Snapshot |
Y |
| Multi-screen |
Y |
| Number of fans |
1 fan(s) |
| Supported network protocols |
TCP/IP/UDP, RTP/RTCP/RTSP, HTTP/HTTPS, ARP, ICMP, DNS, DDNS, DHCP, NTP, SSH, PPPoE, ONVIF 2.2 |
| Syslog |
Y |
| Video input channels |
24 channels |
Operational conditions
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
Power
| Output voltage |
12 V |
| AC input frequency |
50/60 Hz |
| Power supply |
60 W |
| Output current |
5 A |
Weight & dimensions
| Depth |
343.5 mm |
| Weight |
4052.5 g |
| Width |
440 mm |
| Height |
44 mm |
Additionally
| Colour of product |
Black |
| Выход HDMI |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 50 °C |
24 channels, RAID 0/1, 1 x Gigabit RJ-45, HDMI, VGA, Audio, USB, eSATA

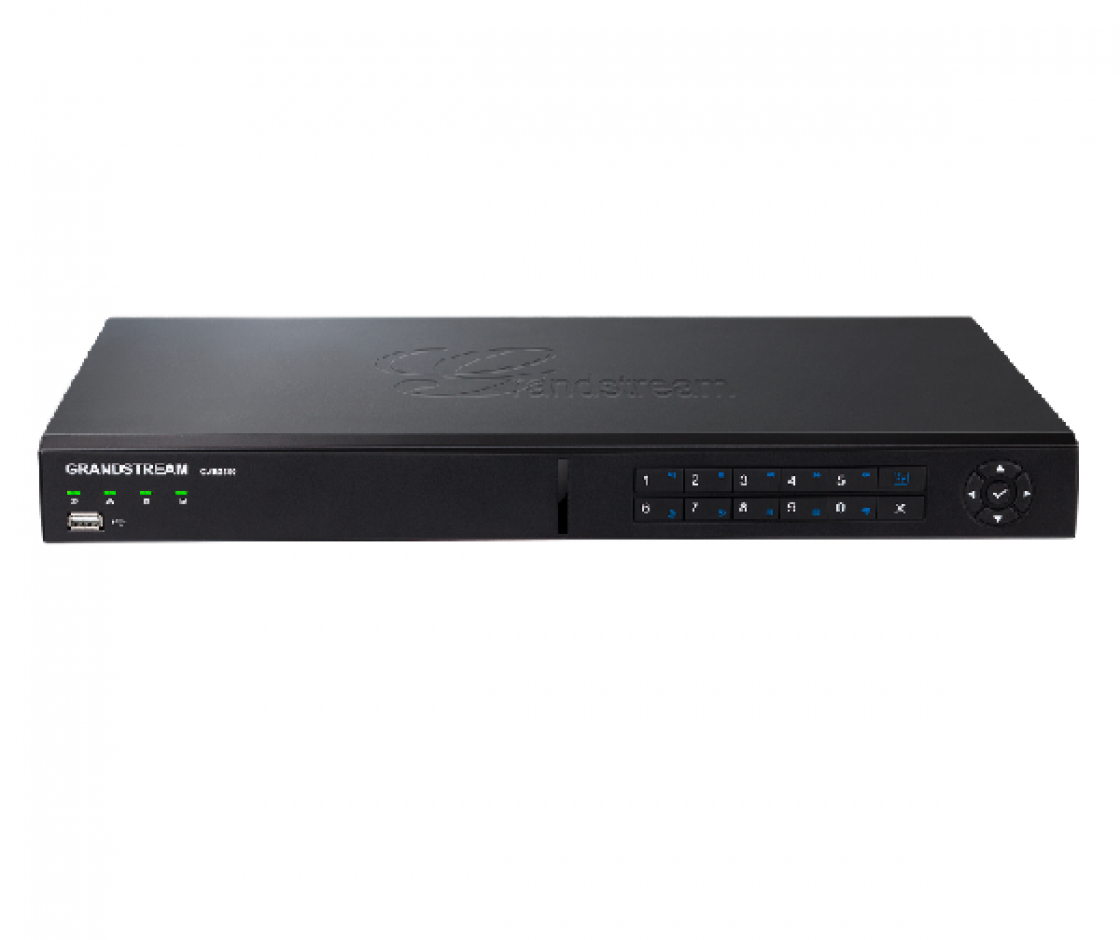

The GVR3550 is a powerful Network Video Recorder (NVR) that offers small to medium businesses and residential users a reliable and easy-to-manage solution for video surveillance recording and monitoring. It provides video recording, indexing, searching and video storage management for up to 24 IP video cameras to allow users to record and monitor their IP video surveillance network using one device. The GVR3550 supports 16TB of video storage and up to 4 hard drives (hard drives not included).
