Performance
| Channel bandwidth |
80 MHz |
| Receiver sensitivity |
2.4G\n802.11b:-99dBm @1Mbps,-91dBm @11Mbps;802.11g:-93dBm @6Mbps,-75dBm @54Mbps;\n80.11n 20MHz:-72dBm @MCS7;802.11n 40MHz:-69dBm @MCS7\n5G\n802.11a:-91dBm @6Mbps,-74dBm @54Mbps;802.11ac 20MHz:-67dBm @MCS8;802.11ac\nHT40:-63dBm @MCS9;802.11ac 80MHz:-60dBm @MCS9 |
| Transmitting power |
22 dBmW |
| Wi-Fi data rate (max) |
11 Mbit/s |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Bandwidth |
1 GHz |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Maximum indoor range |
165 m |
| Frequency band |
2.400 - 5.850 GHz |
Power
| Input voltage |
24 V |
| Power over Ethernet (PoE) |
Y |
| Power consumption (max) |
13.8 W |
| Input current |
1 A |
Design
| Placement |
Ceiling, Wall |
| Internal |
Y |
| Cable lock slot |
Kensington |
| LED indicators |
Y |
Security
| Security algorithms |
WEP, WPA, WPA2-Enterprise, WPA2-PSK |
| Number of SSID support |
16 |
Weight & dimensions
| Depth |
40.8 mm |
| Width |
180.4 mm |
| Height |
180.4 mm |
| Package depth |
79 mm |
| Package weight |
854 g |
| Package width |
228.5 mm |
| Package height |
220 mm |
Ports & interfaces
| USB 2.0 ports quantity |
1 |
| USB connector type |
USB Type-A |
Operational conditions
| Storage temperature (T-T) |
-10 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
Protocols
| Supported network protocols |
IPv4, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
Packaging content
| Quick start guide |
Y |
| Mounting kit |
Y |
Additionally
| Colour of product |
White |
| Transfer rate (Mbps) |
867 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Operating temperature range (T-T) |
0 - 50 °C |
2.400 - 5.850Ghz, 867Mbit/s, 80Mhz, 22dBmW, PoE, 24V, 13.8W, 2xRJ-45, 1xUSB 2.0, 180.4x40.8x180.4mm, White
Description

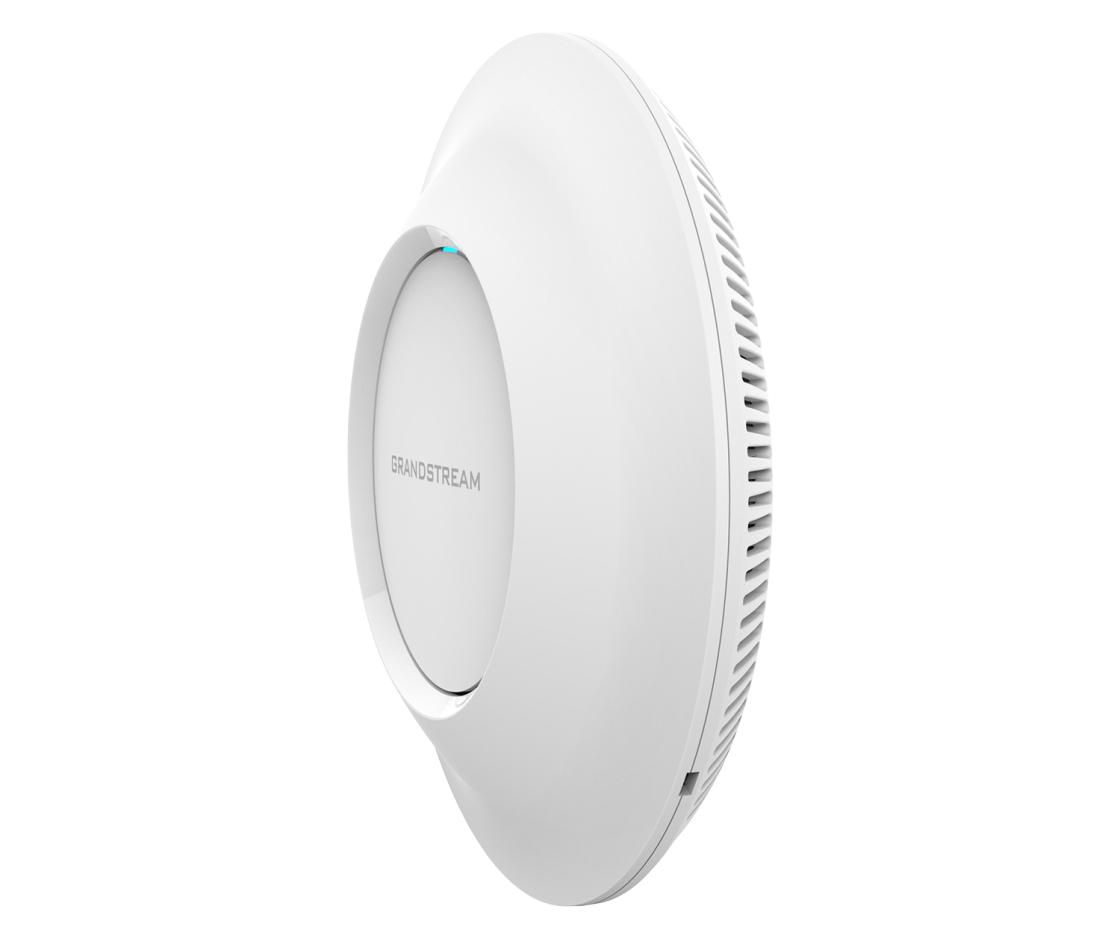

The GWN7600 is a mid-tier 802.11ac Wave-2 WiFi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 2x2:2 MU-MIMO with beam-forming technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7600 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. This allows each access point to manage a network of up to 30 GWN76xx series APs independently without needing separate controller hardware/software and without a single point-of-failure. This wireless access point can be paired with any third party routers as well as Grandstream GWN series routers. With support for advanced QoS, low-latency real-time applications, 450+ concurrent client devices per AP and dual Gigabit network ports with PoE, the GWN7600 is an ideal WiFi access point for medium wireless network deployments with medium-to-high user density.
Features
- 1.27Gbps wireless throughput and 2x Gigabit wireline ports
- Dual-band 2x2:2 MU-MIMO with beam-forming technology
- Support 802.3af Power-over-Ethernet (PoE)
- Support 450+ concurrent WiFi client devices
- Advanced QoS to ensure real-time performance of low-latency applications
- Up to 165-meter coverage range
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Embedded controller allows GWN7600 to auto-discover, auto-provision and manage up to 30 GWN7600s in a network
