Security
| Maximum operating distance |
80 m |
| Built-in siren |
Y |
| Code hopping system |
Y |

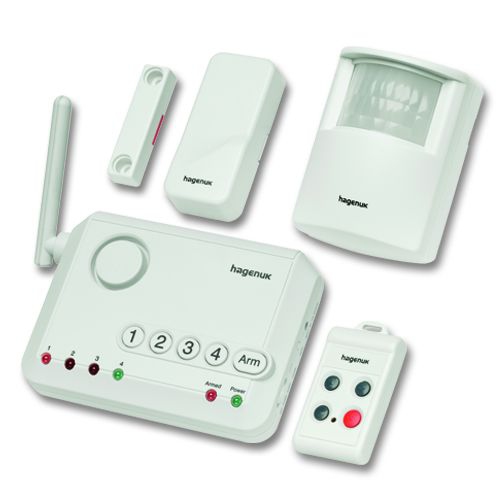

AAS 400, 4 x 4 sensors, 105 dB, 80 m
Alarm System (Basis)
- Security system with alert and alarm functions
- Works with up to 16 sensors – plus remote control and external audio alarm
- 4 zones with up to 4 sensors
- One alert zone with dedicated alert function for continuous monitoring (zone 4)
- Two alarm modes:
- „Arm Away“ - all sensors are armed
- „Arm Home“ - motion sensors are automatically deactivated
- Optical and acoustic alert
- Built-in audio alarm (siren) with 105 dB
- 4-digit code for arming and disarming
- Full functionality during power failure through backup batteries (4x 1.5V AAA - not included)
- Periodical function monitoring off all registered sensors and failure indication
- Battery status test
- Radio transmission - range in house depending on constructural condition; in open area up to 80 m
- Wall mountable
- Incl. power adaptor and mounting accessories
- Operating temperature: 0°C to 50°C
- Dimensions: approx. 138 x 88 x 29 mm
- Weight: approx. 130 g
Door-/Window Sensor (TF 40)
- Monitors door or window openings
- With Lithium battery (3V CR 2032) for up to 2 years operation time
- Incl. mounting accessories
- Operating temperature: -20°C to 60°C
- Dimensions: approx. 75 x 33 x 18 / 57 x 14 x 11 mm
- Weight: approx. 30/15 g
Motion Sensor (BM 40)
- Detects movements in up to 10 m distance and in an arc of up to 110°
- Easy adjustment with ball-joint mounting
- Adjustable sensitivity (high/low)
- LED indication when triggered
- Operates with 9V block battery (not included)
- Incl. mounting accessories
- Operating temperature: 0°C to 50°C
- Dimensions: approx. 86 x 62 x 45 mm
- Weight: approx. 80 g
Remote Control (FB 40)
- Activate both alarm modes or disarm the system
- With „panic button“ for manual alarm release
- With Alkaline battery (12V V23GA/GP23A/23AE)
- Operating temperature: -20°C to 60°C
- Dimensions: approx. 68 x 36 x 14 mm
- Weight: approx. 25 g
