Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

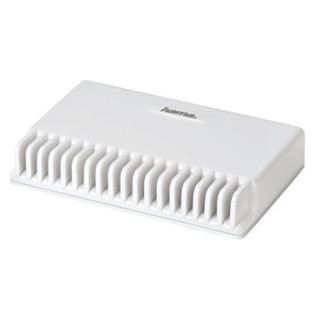

5-PCs, 10/100/1000 Mbps, CAT6A, IEEE 802.3/u/ab
- Connects up to 5 PCs, notebooks, consoles, etc. thus enabling easy high-speed access to files and peripherals
- Extra low energy consumption
- Automatic configuration by the device itself
- 5 network ports with automatic cable type recognition
- Designed for CAT5e, CAT6, CAT6A
- Designed for 1000 Mbps or 10/100 Mbps networks
- Supports IEEE 802.3ab (Gigabit), 802.3u (100 Base-TX) and IEEE 802.3 (10 Base-T)
- The built-in UPLink port allows the connection of a further network switch for increasing the number of ports
- Desktop design
- Each port has its own LED
- The LEDs which are integrated in the switch show the current operating mode of the ports
- Prepared for wall mounting
- Suitable for every operating system with network function
- Built-in RJ-45 network connection
