Networking
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11n, IEEE 802.11g |
| Wi-Fi |
Y |
| Ethernet LAN data rates |
100, 10 Mbit/s |
| Bluetooth |
Y |
Technical details
| USB connectivity |
Y |
| MP3 playback |
Y |
| Headphone out |
Y |
| Amplifier class |
D |
| Universal Plug and Play (UPnP) |
Y |
| Peak Music Power Output (PMPO) |
90 W |
| Apple docking compatibility |
Not supported |
Audio
| Frequency range |
300 - 18000 Hz |
Ports & interfaces
| AUX in |
Y |
| Digital audio optical out |
1 |
| S/PDIF out port |
Y |
| Line-out |
Y |
| Line-in |
Y |
| Headphone outputs |
1 |
Packaging content
| Battery pack |
Y |
| Handheld remote control |
Y |
Radio
| Preset stations quantity |
100 |
| Radio Data System (RDS) |
Y |
| DAB III band range |
174 - 240 MHz |
| Supported radio bands |
FM, DAB, DAB+ |
| FM band range |
87.5 - 108 MHz |
Display
| Display type |
TFT |
| Built-in display |
Y |
Battery
| Number of batteries supported |
2 |
Additionally
| On/Off switch |
Y |
| Ethernet LAN connection |
Y |
| Radio |
Internet |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Remote controlled |
Y |

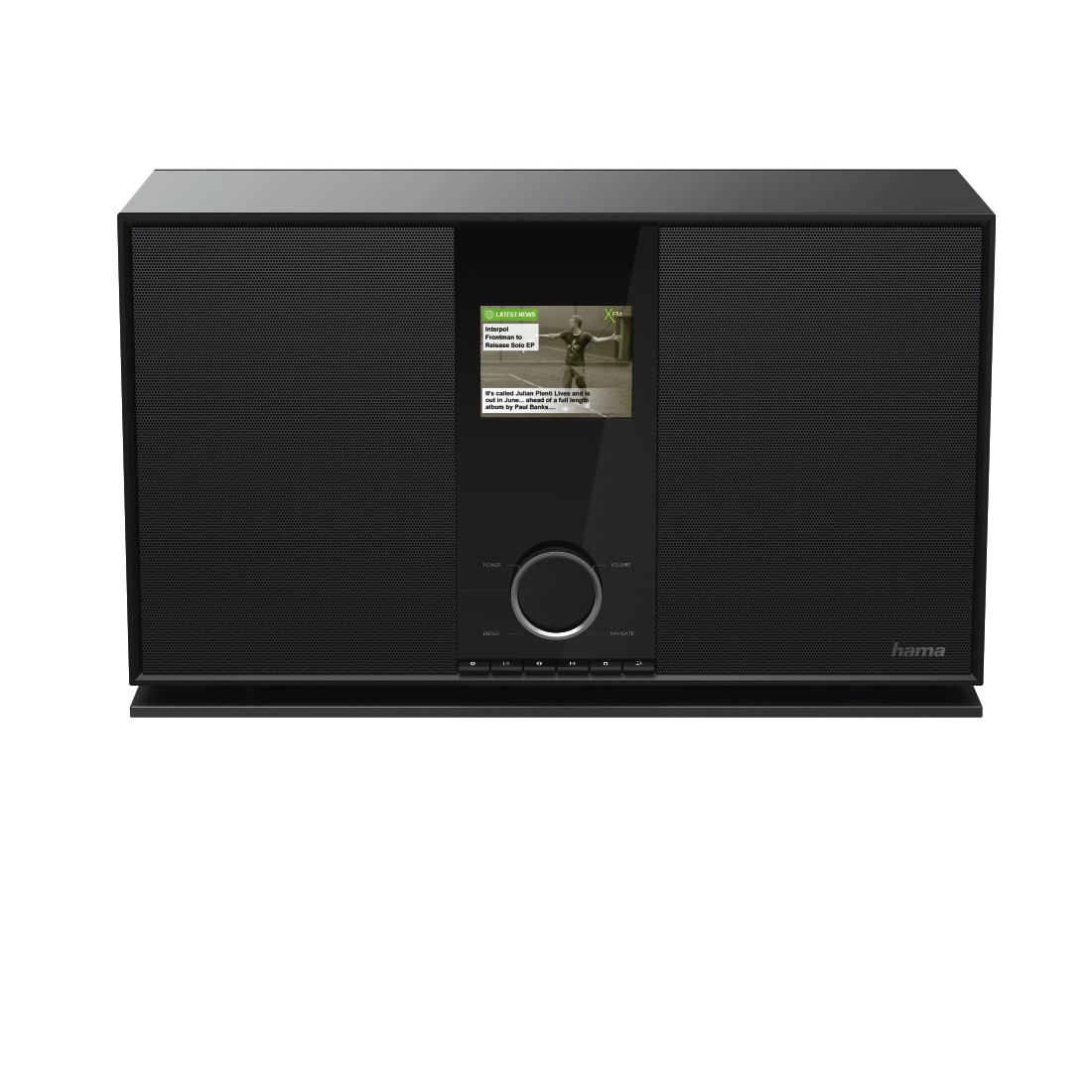

"DIR3600MBT" Digital Radio, Internet radio/DAB+/FM/BT/app/Multiroom/BT
- Digital radio with a telescopic antenna for receiving analogue and digital radio stations
- 2.1 sound system for receiving and playing back audio material via FM, DAB/DAB+, Internet radio, BT or network sources
- 2 x 20 W broadband speaker with 30 W subwoofer (70W rms)
- Compatible with UNDOK Multiroom - allows playback on several speakers in the same network
<b>Internet radio</b>
- Worldwide reception of more than 20,000 radio stations and 10,000 podcasts
- Create your own favourite lists or administrate stations which are not yet known via the comfortable web interface of "Frontier Silicon TM"
- 30 local storage spaces for your favourite Internet radio stations
<b>FM/DAB/DAB+</b>
- Several radio stations can be received throughout Germany and a large number of regional radio stations in digital quality
- 30 local favourite storage spaces each for DAB and FM
<b>Connectivity</b>
- RJ45 Ethernet connection for integration into a wired network
- USB port with charging and playback function (5V/1000mA)
- Wireless connection thanks to wireless LAN technology (integrated WLAN antenna) IEEE 802.11 b/g/n
- Optical S/PDIF digital output
- 3.5 mm Line-In and Line-Out
- 3.5 mm headphone jack
<b>Other matters</b>
- 3.2" colour TFT (320x240px)
- Network streaming via UPnP
- Bluetooth for transmitting music from a smartphone, tablet, PC
- Compatible with Spotify Connect
- Control via the "UNDOK" app using a smartphone/tablet PC
- Antenna can be exchanged via an F connection (telescopic antenna included)
- Blue LED light during operation
