Video
| Analog signal format system |
NTSC, PAL |
| Timeshift |
Y |
Storage
| Hard drive size |
3.5 " |
| Supported file systems |
FAT32, NTFS |
| Maximum storage capacity |
2 TB |
| Hard drive interface |
Serial ATA |
TV tuner
| TV tuner type |
DVB-T |
| TV tuner integrated |
N |
Ports & interfaces
| Composite video in |
1 |
| Component video (YPbPr/YCbCr) out |
1 |
| S/PDIF out port |
Y |
| Digital audio optical out |
1 |
| Composite video out |
1 |
| HDMI ports quantity |
1 |
Networking
| Universal Plug and Play (UPnP) |
Y |
| Wi-Fi |
Y |
| Networking features |
Fast Ethernet |
Packaging content
| Handheld remote control |
Y |
Other features
| Compliance industry standards |
802b/g/n |
| Data transfer rate |
10 Mbit/s |
Additionally
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired & Wireless |
| Ethernet LAN (RJ-45) ports quantity |
1 |

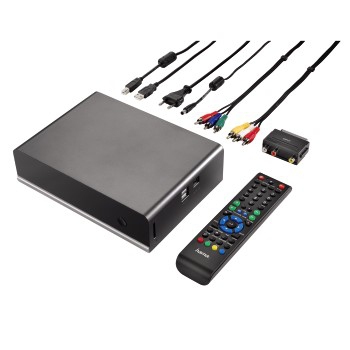

"PRN45HD" Media Station
- Full-HD media player for playing back and recording digital media files on a TV, beamer or monitor
- Just integrate the PRN45HD into your local home network and get connected to the files on your desktop or notebook PC
- HDMI V1.3 for high-definition video and digital audio
- Optical and coaxial S/PDIF connection for perfect sound output
- Composite (RCA) and Component (YUV)
- Adjustable resolution (NTSC, PAL, 480p, 576p, 720p, 1080i, 1080p)
- Via USB storage medium, internal card reader (SD/MMC/MS/MS Pro), hard disk or network
- Movie formats: AVI/MKV/TS/TP/TRP/M2TS/MPG/MP4/M4V/MOV/VOB/ISO/IFO/DAT/WMV/ASF/RM/RMVB/FLV
- Audio formats: MP3/OGG/WMA/WAV/AAC/FLAC
- Photo formats: HD JPEG/BMP/GIF/TIF/PNG
- For receiving digital TV programs
- Electronic Program Guide (EPG)
- Teletext
- Subtitle
- Timeshift function
- Video input: Composite
- Audio input: stereo L/R (RCA)
- Recording format: MPEG-2 (.mpg or .ts)
- Direct recording of the received DVB-T program
- Audio and video streaming via Ethernet (10M/100M) and Wireless Lan (802b/g/n)
- File sharing via Samba server
- Audio and video streaming via UPnP media server
- Internet radio
- Installation of a 8.9 cm (3.5") SATA hard disk possible (up to 2000GB)
- File system: FAT32, NTFS (only reading)
- Incl. power supply unit, remote control, WLAN USB dongle
- Model: Player, Recorder, Copying
- Supported TV-System: NTSC, PAL
- Max. Supported Hard Drive Capacity: 2000 GB
- AV Input 1: Composite-Video
- AV Output 1: HDMI 1.3 (1080p)
- AV Output 2: Composite-Video
- AV Output 3: Digital Audio Optical
- AV Output 4: YUV (Component)
- Supported Image Formats: HD JPEG/BMP/GIF/TIF/PNG
- Playback Media: USB, 3.5" HDD
- Network Connection 1: LAN, WLAN, USB Host
- Supported Video Formats: AVI/MKV/TS/TP/TRP/M2TS/MPG/MP4/M4V/MOV/VOB/ISO/IFO/DAT/WMV/ASF/RM/RMVB/FLV
- Supported Audio Formats: MP3/OGG/WMA/WAV/AAC/FLAC
- Colour: Black.
