Other features
| Frequency band |
2.4 GHz |
| Input current |
1 A |
| Mobile network connection |
N |
Antenna
| Detachable antenna(s) |
Y |
| Antenna gain level (max) |
13 dBi |
| Antenna type |
External |
| Antennas quantity |
1 |
Wireless LAN features
| WLAN data transfer rate (max) |
150 Mbit/s |
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |
WLAN 802.11b/g/n, 2.4GHz - 2.484GHz, 150Mbps, Fast Ethernet, 13dbi antenna

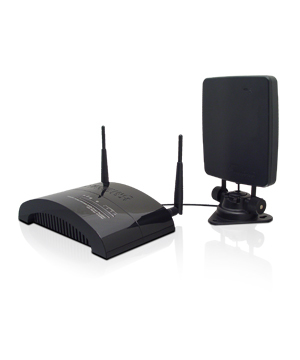

<b>HAW2R1 Hi-Gain Dual Radio Smart Repeater Pro</b>
Unleash Your Wireless Network with the High Power Smart Repeater, HAW2R1 Smart Repeater Pro! The Hi-Gain™ Wireless - 300N Smart Repeater Pro is an advanced Wi-Fi connectivity solution that receives Wireless 802.11b/g/n signals from an open Wi-Fi network and rebroadcasts it locally within your home, office, or local surroundings.
<b>Dual-Radio Smart Repeater Technology</b>
Engineered with two Wi-Fi radios (dual-radio design), the Smart Repeater Pro dedicates one Wi-Fi radio to receiving and another to rebroadcasting signals. The receiving radio is accompanied by a power amplified module and a 13dBi Directional antenna that boosts the HAW2R1’s receiving strength and allows the unit to connect from a further distance than a regular repeater. The rebroadcasting radio is connected to two 3dBi Omni-Directional antennas that extend the original wireless signal throughout your local surroundings and eliminates wireless dead spots. In addition, the HAW2R1 provides security and functionality via a full featured firewall and router. Its full router feature let you build a secondary wireless network within an existing network.
The dual radio design also helps enhance usability. The HAW2R1 searches for signals and connects to your selected network within minutes! Simply power up the Smart Repeater Pro, use a web browser on your Wi-Fi enabled device (i.e. Tablet, Smartphone, Windows or Mac Computer), and then find an location to place the HAW2R1.
