Other features
| USB direct modes |
Play/Pause, Program Play, Repeat, Shuffle, Stop |
| Antenna |
1 |
| Special features |
Sigma Designs 8670/8671 |
| Integrated clock |
N |
| Built-in camera |
N |
| Supported protocols |
SMB, NFS, UPnP, HTTP |
Audio
| Audio D/A Converter (DAC) |
24-bit/192kHz |
File formats
| Video compression formats |
ASF, AVI, DivX, H.264, MOV, MPEG2, MPEG4, QTFF, VOB, WMV, Xvid |
| Audio formats supported |
AAC, AC3, APE, ASF, FLAC, M4A, MP3, OGG, WAV, WMA |
| Video formats supported |
ASF, AVI, DIVX, H.264, MKV, MOV, MP4, MPEG2, QTFF, TS, VC-1, VOB, WMV, WMV9, XVID |
| Image formats supported |
BMP, GIF, JPG, PNG |
Video
| HD-Ready |
Y |
| Full HD |
N |
| Frame rate |
24 fps |
| Maximum video resolution |
1080 pixels |
| Analog signal format system |
NTSC, PAL |
Networking
| Universal Plug and Play (UPnP) |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Internet TV |
Y |
| Wi-Fi |
Y |
| Networking features |
NetFront (ACCESS), WebKit |
Storage
| Built-in storage media |
N |
| Supported file systems |
ext2, ext3, FAT16, FAT32, NTFS |
| Total storage capacity |
0.256 GB |
| Card reader integrated |
N |
| Storage media type |
Hybrid |
Ergonomics
| Volume control |
Digital |
| LED indicators |
LAN, Link, Power |
Weight & dimensions
| Dimensions (WxDxH) |
110 x 77 x 26 mm |
| Depth |
77 mm |
| Weight |
152 g |
| Width |
110 mm |
| Height |
26 mm |
Memory
| Internal memory |
256 MB |
| Internal memory type |
DDR |
| Flash memory |
128 MB |
Ports & interfaces
| USB 2.0 ports quantity |
1 |
| S/PDIF out port |
N |
| Microphone in |
N |
| Composite video out |
1 |
| HDCP |
N |
| HDMI version |
1.3 |
| DC-in jack |
Y |
| HDMI ports quantity |
1 |
System requirements
| Internet connection required |
Y |
| Compatibility |
Sigma Designs 864x/865x/867x |
Certificates
| Digital Living Network Alliance (DLNA) certified |
Y |
Packaging content
| Number of products included |
1 pc(s) |
Additionally
| WLAN-ready |
Y |
| Colour of product |
Black |
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Wireless technologies |
Wired & Wireless |
| Ethernet LAN (RJ-45) ports quantity |
1 |

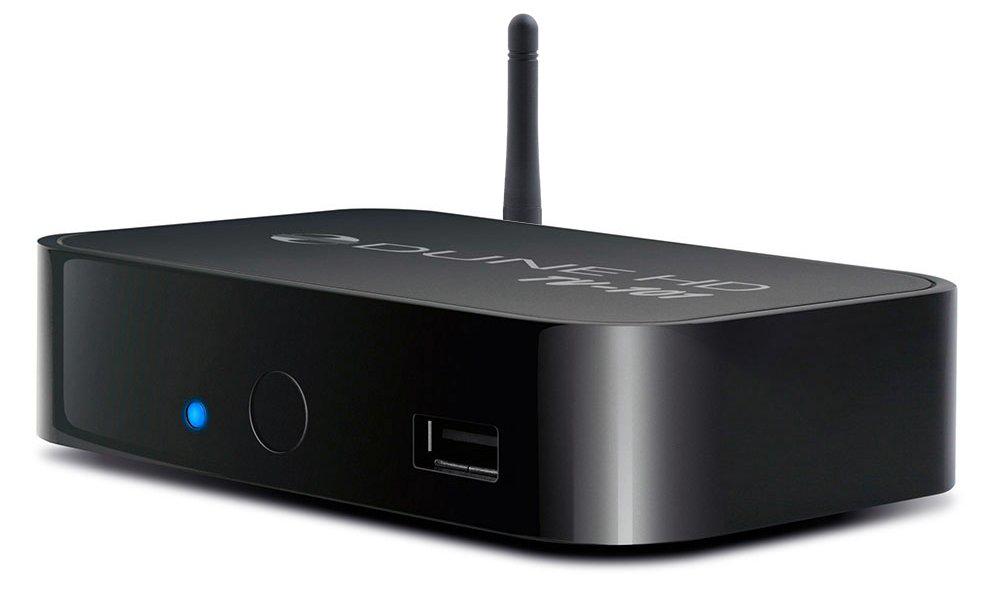

TV-101W - compact size hybrid universal media player
Dune HD TV-101 is a compact size hybrid universal media player which allows to play back video of standard and high definition up to Full HD (1080p), and also can be used as a specialized set-top-box for digital TV programs reception. TV-101 – is remarkable primarily for its ultra-compact size, elegant modern design and modest price. Despite the fact that the device can fit on a plam, its functionality has not been sacrificed to miniature size. TV-101 copes with its responsibilities not worse than senior representatives of the Dune HD players model line, which has to date won all possible awards of specialized printed media and exhibitions. This was made possible by using the most recent Sigma Designs SMP8670 media processor.
