Wireless LAN features
| Frequency band |
2.4 - 5 GHz |
Networking
| Number of users |
128 user(s) |
| Compliance industry standards |
IEEE 802.11a/b/g, IEEE 802.1x |
Antenna
| Antenna gain level (max) |
17 dBi |
| Antenna type |
dual band |
Additionally
| Transfer rate (Mbps) |
108 Mbit/s |
| Wireless technologies |
Wireless |
1x RJ-45 10/100 (IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX), 802.11a/b/g, WPA/2, AES, TKIP, 802.1X, WEP, 28 W, 5.26 kg, White

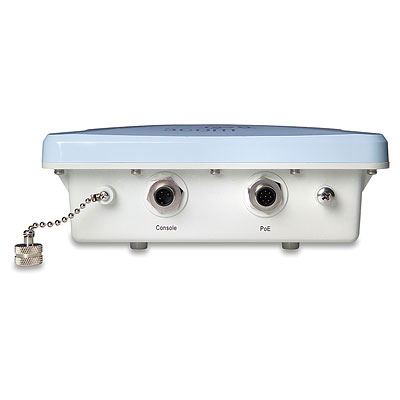

The 802.11a and 802.11b/g integrated HP 802.11 Outdoor Bridge and Access Point (AP) provides flexible, cost-effective 802.11a and 802.11g Wi-Fi connections and bridged links across building complexes, enterprise campuses, and metropolitan areas. Wireless outdoor bridges can connect intra-building LANs across up to 10 miles. This bridge and AP combines the functions of a bridge and a full-featured wireless AP in one durable weatherproof unit---offering point-to-point or point-to-multipoint bridge functionality while simultaneously using another band for AP operation---and it features connectivity for mobile users. The AP, repeater, or bridge functionality can be independently configured on both radios, making the product extremely flexible for a variety of applications. The bridge function supports data rates up to 108 Mbps between buildings or to offsite locations. The AP function provides connectivity for as many as 128 users.
