Ports & interfaces
| Cabling technology |
10BASE-T, 100BASE-TX |
| DC-in jack |
Y |
Performance
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Frequency band |
2.4/5 GHz |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Other features
| Safety |
UL, IEC, CSA |
| Compliance industry standards |
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.3u, IEEE 802.3af |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antenna connector type |
RP-SMA |
Power
| Power over Ethernet (PoE) |
Y |
Additionally
| Transfer rate (Mbps) |
54 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
2 |

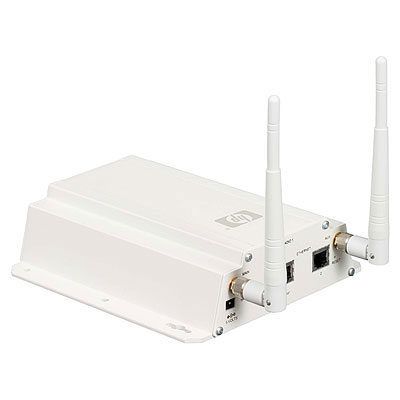

HP MSM310 Access Point (WW)
HP offers intelligent single and dual radio Access Points designed to provide reliable, easy-to-use wireless connectivity across the network. All the HP MSM Access Points are managed by any of the HP MSM Controllers and the HP RF Manager for the RF Security Sensors. All the HP MSM Access Points can also work in autonomous mode. The HP MSM Access Points require a single Power over Ethernet (PoE) cable drop and are IEEE802.3af compliant or can be powered directly via a power adaptor. HP has a full range of both indoor and outdoor MSM Access Points.
Quality of Service (QoS)
• IEEE 802.1p prioritization: delivers data to devices based on the priority and type of traffic
Connectivity
• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 ports
Mobility
• Anywhere, anytime wireless coverage: - Single, dual, and tri-radio IEEE 802.11a/b/g access points. - Per-radio software-selectable configuration of frequency bands. - Self-healing, self-optimizing local mesh extends network availability . - Wi-Fi Alliance certified for interoperability with all 802.11a/b/g client devices . - IEEE 802.3af PoE or external power cord on selected models .
Security
• Choice of IEEE 802.11i, WPA2, or WPA: locks out unauthorized wireless access by authenticating users prior to granting network access; robust Advanced Encryption Standard (AES) or Temporal Key Integrity Protocol (TKIP) encryption secures the data integrity of wireless traffic
Warranty and support
• Lifetime Warranty: - for as long as you own the product, with next-business-day advance replacement (available in most countries) .
