Power
| Power consumption (typical) |
150 W |
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
Weight & dimensions
| Dimensions (WxDxH) |
442 x 400.1 x 43.9 mm |
| Weight |
5500 g |
Protocols
| Management protocols |
IMC, SNMP, Telnet; HTTPS; FTP |
Operational conditions
| Operating relative humidity (H-H) |
10 - 95% |
Performance
| Certification |
CISPR 22; EN 55022; ICES-003; AS/NZS CISPR 22; FCC; EN 61000-3-2; EN 61000-3-3; VCCI V-3 |
Additionally
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 45 °C |

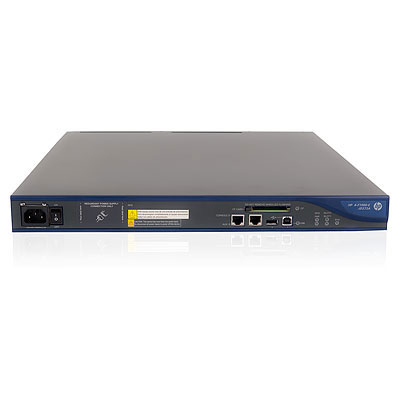

F1000-S-EI VPN Firewall - 12 dual-personality ports, 150 W, IPv6, 5.5 kg
Overview
Built on the latest state-of-the-art multicore CPU platform and with advanced hardware acceleration, the HP Firewall Series enables advanced scalable network protection from the network core to the network edge with firewall throughput at up to 40 Gbps. The series also features rich VPN abilities, including GRE, L2TP, and IPSec tunneling technologies, which makes it ideal for building VPN gateways. The appliances combine built-in protection against denial-of-service (DoS) attacks, hacking attacks, zonal and virtual stateful packet inspection firewalls, application bandwidth management, audio/video IP multicast routing, and email attachment filtering. The series includes all the advanced security capabilities found in the unified software platform of HP switches and routers that deliver easy integration, simple management, and network deployment infrastructure, lowering a network's total cost of ownership.
Features
Firewall
• High performance: up to 40 Gbps throughput secures traffic without compromising network performance; a maximum of 4 million concurrent connections and 180,000 new connections per second enables high-volume networks to remain secure under peak traffic
Virtual private network (VPN)
• IPSec: provides secure tunneling over an untrusted network such as the Internet or a wireless network; offers data confidentiality, authenticity, and integrity between two endpoints of the network
Management
• Complete session logging: provides detailed information for problem identification and resolution
Layer 3 routing
• Static IP routing: provides manually configured routing; includes ECMP capability
Security
• Defense against attacks: provides defense against various attacks, such as DoS/DDoS, ARP spoofing, large ICMP packet, address/port scanning, Tracert, IP packets with the Record Route option, and static and dynamic blacklists; also supports binding of MAC address and IP addresses, as well as intelligent defense of worm viruses
Warranty and support
• 1-year warranty: with advance replacement and 30-calendar-day delivery (available in most countries)
