Technical details
| IPP support |
N |
| Number of simultaneous printers |
1 |
| Internal |
N |
| Firmware upgradeable |
N |
| USB connector type |
USB Type-A |
| Built-in display |
N |
Other features
| Network ready |
Y |
| Cabling technology |
10/100Base-T(X) |
| Install, configure, and manage via web server |
Y |
| Internal/External JetDirect |
External |
| Embedded web server |
Y |
| Networking features |
Fast Ethernet |
| Data transfer rate |
100 Mbit/s |
| Power supply type |
AC/DC |
| Compatible operating systems |
Windows 98\nWindows NT 4.0\nWindows Me\nWindows 2000\nWindows Server 2003\nWindows XP (32/64-bit)\nWindows Vista (32/64-bit)\nWindows 2003 (64-bit)\nMac OS 8.6+ |
Packaging content
| Cables included |
USB |
| Manual |
Y |
| External power adapter |
Y |
| User guide |
Y |
Networking
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Networking standards |
IEEE 802.3, IEEE 802.3u |
| Network connection type |
Ethernet LAN |
| Copper ethernet cabling technology |
100BASE-T, 100BASE-TX, 10BASE-T |
Power
| Power consumption (typical) |
2.8 W |
| AC input voltage |
100-127 V |
| AC input frequency |
60 Hz |
Protocols
| Management protocols |
ACLs, SNMP v1/v2c |
| Supported network protocols |
TCP/IP, IPX/SPX, AppleTalk, IP Direct, LPD, Telnet, SLP, IGMP, BOOTP/DHCP, WINS, SNMP, HTTP, Auto-IP, Bonjour |
Certificates
| Safety |
IEC |
| Certification |
FCC, DoC |
System requirements
| Minimum system requirements |
CD-ROM |
| Minimum hard disk space |
40 MB |
Weight & dimensions
| Depth |
127 mm |
| Width |
101.6 mm |
| Weight |
118 g |
| Height |
38.1 mm |
Ports & interfaces
| USB 2.0 ports quantity |
1 |
| DC-in jack |
Y |
Indication
| Power LED |
Y |
| LED indicators |
Y |
Operational conditions
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
15 - 95% |
Software
| Mac operating systems supported |
Y |
| Windows operating systems supported |
Y |
Additionally
| Colour of product |
White |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 55 °C |

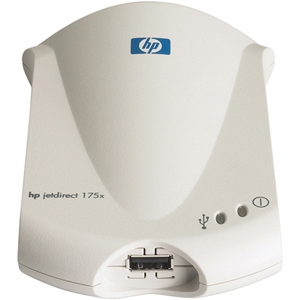

Jetdirect 175x, Fast Ethernet, 1 x USB 2.0, 2MB Flash, 118 g, White
Connect many printers with a USB (compatible with USB 2.0 specifications) port to your network
- Low-cost solution for sharing a printer or all-in-one with a USB port through one reliable network connection
- Remote scanning over the internet/intranet for supported HP all-in-one peripherals.
- Embedded Web Server for status and configuration.
