Processor special features
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
1 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Turbo Boost Technology |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
42927 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
Expansion slots
| PCI Express slots version |
2.0 |
| PCI Express x8 slots |
1 |
| PCI Express x16 slots |
1 |
Storage
| RAID support |
Y |
| Maximum storage capacity |
8 TB |
| Number of hard drives supported |
4 |
Processor
| Stepping |
B1 |
| Processor operating modes |
64-bit |
| Processor cores |
4 |
| CPU multiplier (bus/core ratio) |
18 |
| Embedded options available |
Y |
| FSB Parity |
N |
| Number of Processing Die Transistors |
774 M |
| Processor manufacturer |
Intel |
| PCI Express configurations |
4x4, 2x8, 1x16 |
| Conflict Free processor |
N |
| Memory channels supported by processor |
Dual |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Memory clock speeds supported by processor |
1333, 1066, 800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBLJ |
| Physical Address Extension (PAE) |
36 bit |
| Maximum number of PCI Express lanes |
1 |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Processor boost frequency |
2.8 GHz |
| Processor cache |
8 MB |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
1 |
| Thermal Design Power (TDP) |
95 W |
| Processor lithography |
45 nm |
| Processor package size |
37.5 mm |
| Bus type |
DMI |
| Memory types supported by processor |
DDR3-SDRAM |
| Supported instruction sets |
SSE4.2 |
| ECC supported by processor |
Y |
| Tcase |
72.7 °C |
| Maximum internal memory supported by processor |
32 GB |
| Processor frequency |
2.4 GHz |
Memory
| Maximum internal memory |
16 GB |
| Memory slots |
6 |
| Internal memory type |
DDR3-SDRAM |
| Internal memory |
2 GB |
| Memory clock speed |
1333 MHz |
| ECC |
Y |
Other features
| Ventilation fan(s) |
4 |
| Power availability |
430 W |
| Disk array controller |
B110i |
| Video modes resolution |
1600 pixels |
Power
| Number of power supply units |
1 |
| Power supply |
400 W |
Design
| Chassis type |
Rack (1U) |
| Optical drive type |
N |
Graphics
| Maximum graphics adapter memory |
64 MB |
Operational conditions
| Operating altitude |
0 - 3050 m |
| Non-operating altitude |
0 - 9144 m |
Additionally
| Processing die size |
296 mm² |
| Chipset |
Intel 3420 |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
2.5 GT/s |
Intel Xeon X3430 (2.40GHz, 8Mb L3), 2Gb RAM, 400W, 2xLAN, 1U

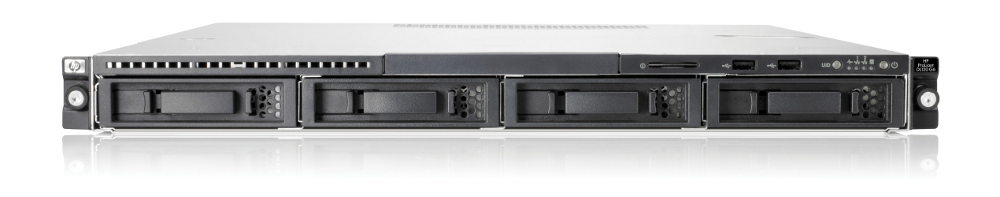

The HP ProLiant DL120 G6 Server is a new low cost, entry level rack-optimized server. Low on cost, but not short on performance.
The DL120 G6 supports Intel® Xeon®, Pentium®, and Core i-3 processors with all the performance advantages of 4 cores and 2 cores. An array of Intel Xeon® processors, provide the ability to choose the appropriate processor based on application demands and cost. The single processor, 1U server, is ideal for single-application IT infrastructure, web and edge-of-network applications.
The DL120 G6 provides three PCI-Express slots. Additional upgrades, including HP SAS HBAs and Smart Array Controllers, provide support for SAS hard disk drives. The remote management offered by the integrated LO100i, provides the DL120 G6 a low-cost, effective solution for remotely managing servers anywhere, anytime.
Right Sized, Right Priced Solution
- An array of 4 core Intel® Xeon® processors and dual core Pentium® and Core i-3 processors, enable you to pick the right processor based on workload requirements
- Support for large form factor SATA and SAS hard disk drives provides both low-cost, high-capacity drives and high performance, high reliability drives
- Integrated SATA RAID 0/1 and an array of SAS HBAs and Smart Array Controllers
- Affordable performance for scale-out applications
- Provides essential features for computing needs
Easy-To-Own and Manage
- Easy-access, rack-optimized 1U chassis for fast deployment and efficient maintenance
- Offers the control to respond quickly to server issues wherever they occur
- Browser and command line interface access
- Essential, integrated entry-level remote management at an affordable price
Service and Support
- Upholds HP's reputation of dependability, by conducting some of the most rigorous and thorough testing in the industry
- Full range of service and support for every budget including startup, installation, extended warranty, network planning, software updates and others
- Access to HP helpdesks and service professionals for around the clock support
