Processor special features
Intel vPro Technology |
N |
Intel Clear Video Technology for MID |
N |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Enhanced Halt State |
Y |
Intel Hyper-Threading Technology |
N |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
CPU configuration (max) |
1 |
Intel Dual Display Capable Technology |
Y |
Intel Clear Video Technology |
N |
Intel 64 |
Y |
Intel® Insider™ |
N |
Intel® Quick Sync Video Technology |
N |
Processor ARK ID |
43230 |
Intel Trusted Execution Technology |
N |
Intel Flex Memory Access |
N |
Intel Fast Memory Access |
N |
Intel Rapid Storage Technology |
N |
Intel® Turbo Boost Technology |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel Demand Based Switching |
N |
Enhanced Intel SpeedStep Technology |
Y |
Intel FDI Technology |
Y |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Storage
Hard drive interface |
Serial ATA |
RAID support |
Y |
Maximum storage capacity |
8 TB |
Number of hard drives supported |
4 |
Total storage capacity |
160 GB |
Number of hard drives installed |
1 |
Hard drive capacity |
160 GB |
Hot-swap |
N |
Hard drive size |
3.5 " |
Processor
Maximum internal memory supported by processor |
16 GB |
Processor frequency |
2.8 GHz |
Processor cores |
2 |
Processor operating modes |
64-bit |
Embedded options available |
Y |
FSB Parity |
N |
Number of Processing Die Transistors |
382 M |
Processor front side bus |
1066 MHz |
Processor manufacturer |
Intel |
PCI Express configurations |
2x8, 1x16 |
Conflict Free processor |
N |
Memory bandwidth supported by processor (max) |
17 GB/s |
Processor cache type |
Smart Cache |
Processor codename |
Clarkdale |
Physical Address Extension (PAE) |
36 bit |
Maximum number of PCI Express lanes |
16 |
Thermal Monitoring Technologies |
N |
Execute Disable Bit |
Y |
Thermal Design Power (TDP) |
73 W |
Graphics & IMC lithography |
45 nm |
Processor cache |
3 MB |
Number of processors installed |
1 |
Maximum number of SMP processors |
1 |
CPU multiplier (bus/core ratio) |
21 |
Processor lithography |
32 nm |
Processor package size |
37.5 mm |
Bus type |
DMI |
ECC supported by processor |
N |
Tcase |
72.6 °C |
Expansion slots
PCI Express slots version |
2.0 |
PCI Express x4 slots |
1 |
PCI Express x8 slots |
1 |
PCI Express x16 slots |
1 |
Ports & interfaces
PS/2 ports quantity |
1 |
Serial ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Memory
Maximum internal memory |
16 GB |
Memory slots |
4 |
Memory clock speed |
1333 MHz |
Internal memory |
2 GB |
Internal memory type |
DDR3-SDRAM |
Other features
Ventilation fan(s) |
2 |
Disk array controller |
B110i |
Graphics
On-board graphics adapter base frequency |
533 MHz |
On-board graphics adapter |
Y |
Maximum graphics adapter memory |
64 MB |
Number of displays supported (on-board graphics) |
2 |
Power
Number of power supply units |
1 |
Power supply |
300 W |
Design
Optical drive type |
DVD-RW |
Operational conditions
Operating altitude |
0 - 3048 m |
Non-operating altitude |
0 - 9144 m |
Additionally
System bus data transfer rate |
2.5 GT/s |
Processing die size |
81 mm² |
Chipset |
Intel 3420 |
InTru™ 3D Technology |
N |
Intel AES New Instructions |
N |
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
1 |

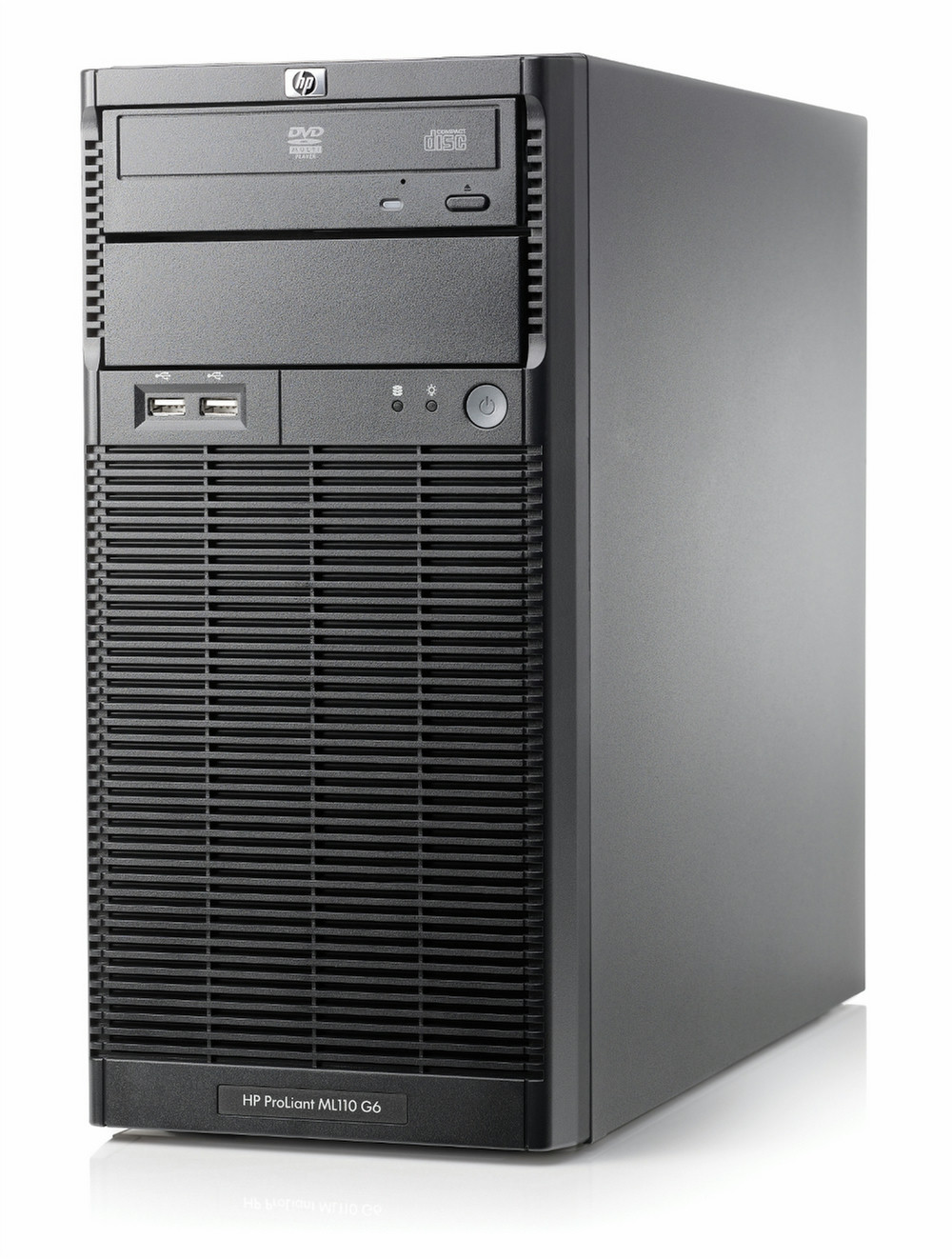

Intel Pentium G6950 (2.80GHz, 3Mb L3), Intel 3420, 2Gb RAM, 160GB HDD, 4U, 300W
The HP ProLiant ML110 G6 is the perfect first server for growing business. It provides an affordable and functional solution to small/medium businesses that are budget-conscious and who have basic or no in-house IT resources.
With proven ProLiant reliability and the support for the latest Intel Xeon, Core i3, Pentium & Celeron processors and DDR3 memory, the ML110 G6 provides the ideal solution to the growing business. A mix of PCI and PCI-Express slots, DIMM slots, drive bays, and server options delivers the expandability needed. Integrated LO100i remote management drives down the operational costs by reducing the number of physical visits. The updated version of HP Easy Set UP CD enhances the installation process further. Optional TPM provides for additional level of security. The standard power supply is now more efficient and reduces power consumption further.
Proven HP Dependability and Support
- HP has built a reputation of dependability by conducting some of the most rigorous and thorough testing in the industry
- ProLiant quality starts with design and is optimized in manufacturing
- Tireless work on system testing and process control ensures only the most dependable products for the customers
- Worldwide network of HP trained service professionals
Easy to Expand and Grow with Changing Business Needs
- This powerful, yet simple platform, provides all the relevant server features in an easy-to-use and easy-to-afford package
- Growth and adaptability are achieved through DDR3 memory, HDDs, USB ports and PCI card expandability, giving the server headroom to grow with your business
- The modular design of ML110 G6 requires less upfront investment and allows for expandability as needed. All major components are designed to be removed or installed with minimal effort
- Companies with remote locations or branch offices can take advantage of the integrated Lights-Out 100i remote management to decrease server/company downtime and increase productivity
- Rack mountable for space saving
A true Server at a Desktop price
- The HP ProLiant ML110 G6 server incorporates features for small/medium businesses and remote site locations
- The focus on design provides a flexible server for low cost expansion
- Improved processor and memory performance along with the support for efficient power supply reduce overall operational costs
- LO100i remote management drives down the cost of managing the servers by reducing visits while decreasing the need for multiple remote management solutions
Proven ProLiant Reliability and Data Protection
- ECC memory protects businesses from data loss and unplanned system downtime
- Smart Array options provide businesses RAID mirroring and striping capability to protect critical data
- LO 100i remote management decreases server downtime
- Trusted Platform Module provides an option for advance data security with hardware-based encryption and authentication
