Processor
| Processor operating modes |
64-bit |
| CPU multiplier (bus/core ratio) |
8 |
| Embedded options available |
Y |
| FSB Parity |
N |
| Number of Processing Die Transistors |
456 M |
| Processor front side bus |
1333 MHz |
| Processor manufacturer |
Intel |
| Conflict Free processor |
N |
| Processor cache type |
L2 |
| Processor codename |
Yorkfield |
| Processor code |
SLB6B |
| Thermal Monitoring Technologies |
Y |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Processor cache |
6 MB |
| Number of processors installed |
1 |
| Processor cores |
4 |
| Thermal Design Power (TDP) |
95 W |
| Processor lithography |
45 nm |
| Processor package size |
37.5 mm |
| Processor frequency |
2.66 GHz |
| Stepping |
R0 |
| Bus type |
FSB |
| ECC supported by processor |
N |
| Tcase |
71.4 °C |
Processor special features
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
35365 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
Power
| Number of power supply units |
1 |
| Power supply |
430 W |
Memory
| Memory clock speed |
400 MHz |
| Internal memory |
1 GB |
| Internal memory type |
DDR2-SDRAM |
| Maximum internal memory |
8 GB |
| Memory slots |
4 |
Other features
| Graphics adapter family |
ATI |
| Ventilation fan(s) |
1 |
Graphics
| Maximum graphics adapter memory |
32 MB |
Ports & interfaces
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Design
| Optical drive type |
DVD-ROM |
| Chassis type |
Tower (5U) |
Storage
| RAID support |
Y |
| Maximum storage capacity |
8 TB |
| Number of hard drives supported |
4 |
Operational conditions
| Operating altitude |
0 - 3050 m |
| Non-operating altitude |
0 - 9144 m |
Additionally
| Processing die size |
164 mm² |
| Chipset |
Intel 3210 |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
3 |
| Ethernet LAN connection |
Y |
| Graphics |
ES1000 |
| Intel AES New Instructions |
N |
Intel Core 2 Quad Q9400 (2.66 GHz, 6Mb L2), Intel 3210, 1Gb RAM, ATI ES1000, LAN, 430W, 5U

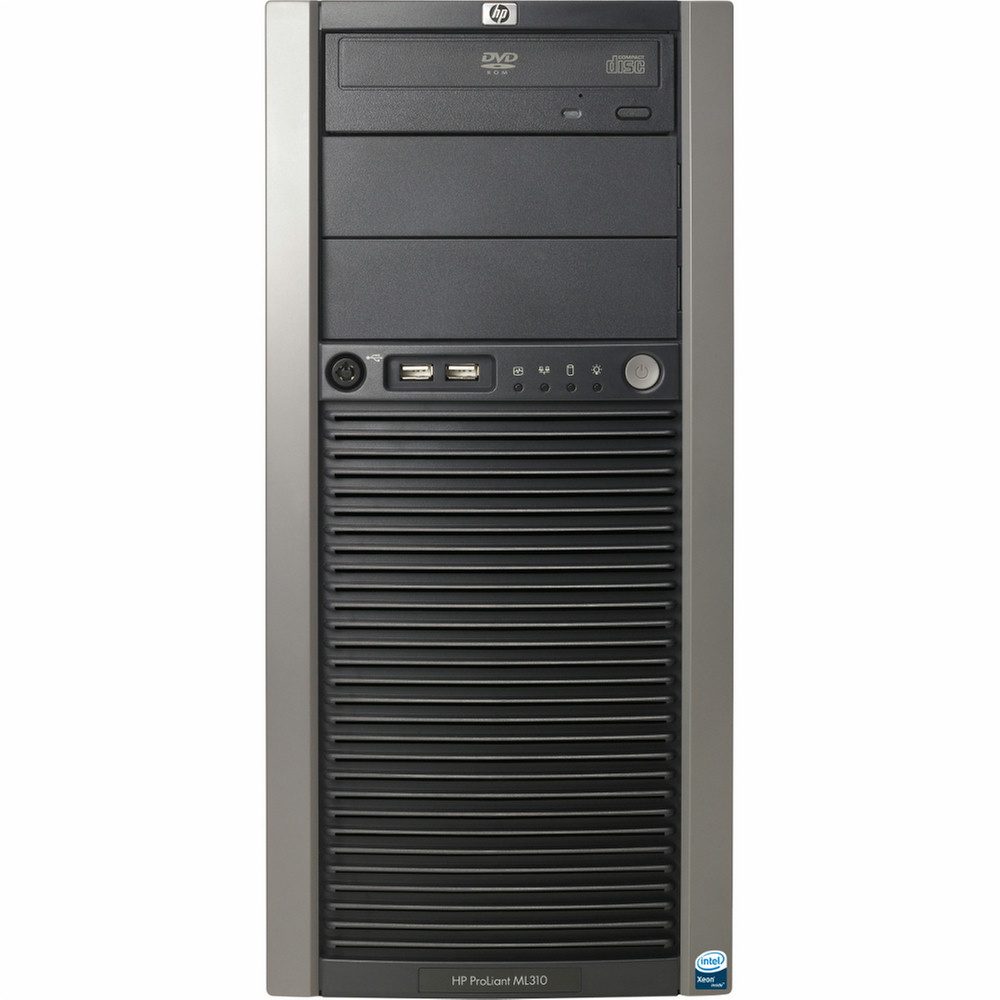

The HP ProLiant ML310 G5p is an affordable, single processor tower server engineered to meet the needs of corporate small sites. It is designed to provide the solid network foundation essential to fuel thriving small offices. Processing power ranging from 1 core Celeron to 4 core Xeon combines with industry-leading management and essential data protection features for a secure, affordable platform that helps you run your business efficiently.
Performance You Can Trust
- 4 and 2 core Intel® Xeon® processors for ultimate performance on the most demanding business applications.
- 2 core Intel® Core™2 and Pentium® processors for general processing
- 1 core Intel® Celeron® processors for the most cost-sensitive implications
Solid Protection
- Hot plug hard drives, integrated SATA or SAS RAID, and available RAID controllers protect transactional and archive data
- Three removable media bays provide ample space for the backup solution you choose. Bays accept both optical media and tape backup devices, including USB tape devices.
- Available hot plug redundant power supplies offer even more protection
Industry-leading management
- SmartStart, included in the ProLiant Essentials Foundation Pack shipped with the ML310 G5p, gets your server up and running quickly
- HP Systems Insight Manager keeps an eye on your server so that your staff can focus on priority projects. Alerts on system status can be delivered to you on your own terms.
- Get remote control with the Lights Out technology of integrated Lights-Out 2. View the server console and install updates anytime, anywhere with iLO 2.
- TPM module option support helps address new customer security requirements
- NO board redesign needed to have TPM chip added to ML310G5
