Processor
| Stepping |
D0 |
| Processor system type |
DP |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Number of Processing Die Transistors |
731 M |
| Processor manufacturer |
Intel |
| Conflict Free processor |
N |
| Physical Address Extension (PAE) |
Y |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Memory clock speeds supported by processor |
1066, 800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBF7 |
| Physical Address Extension (PAE) |
40 bit |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Number of QPI links |
2 |
| Processor boost frequency |
2.66 GHz |
| Processor cache |
8 MB |
| Thermal Design Power (TDP) |
80 W |
| Number of processors installed |
1 |
| Processor cores |
4 |
| CPU multiplier (bus/core ratio) |
18 |
| Processor lithography |
45 nm |
| Processor package size |
42.5 mm |
| Maximum number of SMP processors |
2 |
| Maximum internal memory supported by processor |
144 GB |
| Processor frequency |
2.4 GHz |
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
| ECC supported by processor |
Y |
| Tcase |
76 °C |
Memory
| Maximum internal memory |
192 GB |
| Memory slots |
12 DIMM |
| Memory layout (slots x size) |
3 x 2 GB |
| Memory clock speed |
1333 MHz |
| ECC |
Y |
| Internal memory |
6 GB |
| Internal memory type |
DDR3-SDRAM |
Processor special features
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
37103 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
Other features
| Disk array controller |
Smart Array P410i/Zero |
| Graphics adapter family |
ATI |
Storage
| Hot-swap |
Y |
| Hard drive size |
2.5 " |
| Hard drive interface |
Serial ATA, Serial Attached SCSI (SAS) |
| RAID support |
Y |
| Maximum storage capacity |
2 TB |
| Number of hard drives supported |
2 |
Graphics
| Maximum graphics adapter memory |
64 MB |
Design
| Optical drive type |
N |
| Chassis type |
Blade |
Networking
| Networking features |
10Gb Ethernet |
Additionally
| Processing die size |
263 mm² |
| Chipset |
Intel 5500 |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Graphics |
RN50 |
| Intel AES New Instructions |
N |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
5.86 GT/s |

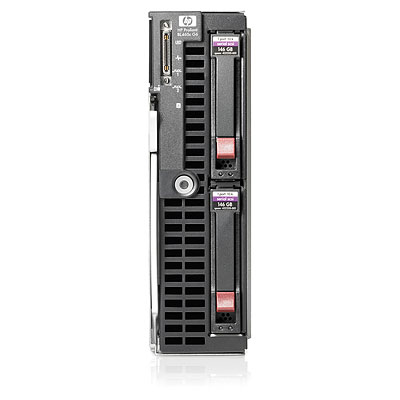

Intel Xeon E5530 (2.4GHz, 8MB L3), 6GB DDR3, Smart Array P410i/Zero, Blade
As the world's most popular blade server, the HP ProLiant BL460c Server Blade sets the standard for the data center. Packing two processors, two hot plug hard drives, up to 192GB of memory, and a dual-port 10 gigabit Ethernet adapter into a half-height blade, the BL460c gives IT managers the performance and expandability they need for demanding data center applications.
Features
- Dense compute power: 4 Core Intel® Xeon® processors coupled with lots of DIMM slots, an integrated RAID controller, and 10 gigabit server adapters deliver concentrated compute power and greater system scalability; Up to two (2) Intel Xeon 5500 series processors; Up to 196GB of PC3-10600 (DDR3-1333) Registered DIMMs with Advanced ECC; HP Smart Array P410i controller for hardware RAID 0 and 1, with optional cache modules for increased performance; Embedded dual-port 10 gigabit server adapter with support for HP Virtual Connect Flex-10 technology; Choose up to two (2) hot plug small form factor high performance serial attached SCSI (SAS) drives or lower cost serial ATA (SATA) drives
- Up to 192GB of PC3-10600 (DDR3-1333) Registered DIMMs with Advanced ECC
- HP Smart Array P410i controller for hardware RAID 0 and 1, with optional cache modules for increased performance
- Embedded dual-port 10 gigabit server adapter with support for HP Virtual Connect Flex-10 technology
- Up to two (2) hot plug SFF (small form factor) drives
- Deployment versatility: Embedded technologies and two mezzanine slots offer deployment versatility in an efficient dense form factor; High speed graphical remote console and remote web-based access to server health information with the HP ProLiant Onboard Administrator (powered by the Integrated Lights-Out 2 management processor); Higher bandwidth and more NICs built into your server with the embedded dual-port 10GbE adapter that can be divided into 8 FlexNICs using Virtual Connect Flex-10 technology; Internal USB and SD Card ports, plus an optional Trusted Platform Module (TPM), for added flexibility with hypervisor installation, disk-on-key, and security features
- Higher bandwidth and more NICs built into your server with the embedded dual-port 10GbE adapter that can be divided into 8 FlexNICs using Virtual Connect Flex-10 technology
- Internal USB and SD Card ports, plus an optional Trusted Platform Module (TPM), for added flexibility with hypervisor installation, disk-on-key, and security features
- Industry-leading management and configuration tools: Industry-leading management and configuration tools offer superior remote administration, superb life cycle management and resource utilization to help lower total cost of ownership; Conserve valuable IT resources and time by centralizing and simplifying management functions with ProLiant Onboard Administrator and HP Systems Insight Manager; Double the capacity of servers in the datacenter with features such as Power Regulator for ProLiant and Dynamic Power Capping; HP Insight Control suite is an integrated suite of software that simplifies the provisioning and management of HP BladeSystem infrastructures
- Double the capacity of servers in the datacenter with features such as Power Regulator for ProLiant and Dynamic Power Capping
- HP Insight Control suite is an integrated suite of software that simplifies the provisioning and management of HP BladeSystem infrastructures
