Storage
| Hard drive interface |
Serial Attached SCSI (SAS), Serial ATA |
| RAID support |
Y |
| Hard drive size |
3.5 " |
Processor
| Maximum internal memory supported by processor |
32 GB |
| Processor frequency |
2.4 GHz |
| Stepping |
B1 |
| Processor operating modes |
64-bit |
| Embedded options available |
Y |
| FSB Parity |
N |
| Number of Processing Die Transistors |
774 M |
| Processor manufacturer |
Intel |
| PCI Express configurations |
4x4, 2x8, 1x16 |
| Conflict Free processor |
N |
| Memory channels supported by processor |
Dual |
| Memory bandwidth supported by processor (max) |
21 GB/s |
| Memory clock speeds supported by processor |
1333, 1066, 800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBLJ |
| Physical Address Extension (PAE) |
36 bit |
| Maximum number of PCI Express lanes |
1 |
| Processor boost frequency |
2.8 GHz |
| Cache internal |
8 MB |
| Processor cache |
8 MB |
| Number of processors installed |
1 |
| Processor cores |
4 |
| Thermal Design Power (TDP) |
95 W |
| CPU multiplier (bus/core ratio) |
18 |
| Processor lithography |
45 nm |
| Processor package size |
37.5 mm |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Bus type |
DMI |
| Memory types supported by processor |
DDR3-SDRAM |
| Supported instruction sets |
SSE4.2 |
| ECC supported by processor |
Y |
| Tcase |
72.7 °C |
Processor special features
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| CPU configuration (max) |
1 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
42927 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
Y |
| Intel Trusted Execution Technology |
Y |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
Expansion slots
| PCI Express slots version |
2.0 |
Memory
| Maximum internal memory |
16 GB |
| Memory slots |
6 x DIMM |
| Internal memory |
2 GB |
| Internal memory type |
DDR3-SDRAM |
| ECC |
Y |
Power
| Number of power supply units |
1 |
| Power supply |
400 W |
Networking
| Cabling technology |
10/100/1000Base-T(X) |
| Networking features |
Gigabit Ethernet |
Design
| Chassis type |
Rack (1U) |
| Optical drive type |
N |
Additionally
| Processing die size |
296 mm² |
| InTru™ 3D Technology |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Intel AES New Instructions |
N |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
2.5 GT/s |

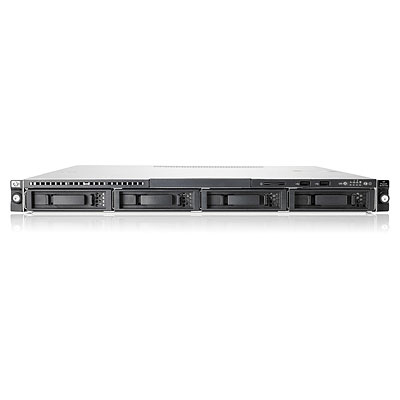

ProLiant DL120 G6 X3430 2.40GHz 4-core 1P 2GB-U 6-port SATA Cold Plug 4LFF 400W PS
The HP ProLiant DL120 G6 Server is a new low cost, entry level rack-optimized server. Low on cost, but not short on performance. The DL120 G6 supports Intel® Xeon®, Pentium®, and Core i-3 processors with all the performance advantages of 4 cores and 2 cores. An array of Intel Xeon® processors, provide the ability to choose the appropriate processor based on application demands and cost. The single processor, 1U server, is ideal for single-application IT infrastructure, web and edge-of-network applications. The DL120 G6 provides three PCI-Express slots. Additional upgrades, including HP SAS HBAs and Smart Array Controllers, provide support for SAS hard disk drives. The remote management offered by the integrated LO100i, provides the DL120 G6 a low-cost, effective solution for remotely managing servers anywhere, anytime.
