Memory
| Memory slots |
4 DIMM |
| Internal memory type |
DDR2-SDRAM |
| Memory clock speed |
800 MHz |
| Internal memory |
1 GB |
| Maximum internal memory |
8 GB |
Processor special features
| Intel Enhanced Halt State |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
33931 |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel vPro Technology |
N |
Processor
| Processor operating modes |
64-bit |
| CPU multiplier (bus/core ratio) |
7.5 |
| Embedded options available |
N |
| FSB Parity |
N |
| Number of Processing Die Transistors |
456 M |
| Processor front side bus |
1333 MHz |
| Conflict Free processor |
N |
| Processor cache type |
L2 |
| Processor codename |
Yorkfield |
| Processor code |
SLB69 |
| Thermal Monitoring Technologies |
Y |
| Execute Disable Bit |
Y |
| Processor cache |
6 MB |
| Number of processors installed |
1 |
| Thermal Design Power (TDP) |
95 W |
| Processor lithography |
45 nm |
| Processor cores |
4 |
| Processor frequency |
2.5 GHz |
| Stepping |
R0 |
| Bus type |
FSB |
| ECC supported by processor |
N |
| Tcase |
71.4 °C |
Design
| Optical drive type |
DVD-ROM |
| Chassis type |
Rack (1U) |
Other features
| Security management description |
Power-on password; Keyboard password; USB Port control; Removable optical drive assembly (optional); Removable DVD-ROM Drive Assembly (optional); Dedicated iLO2 port (optional); Administrator's password |
| Tape or Disk Drives (range) |
Up to 4: 3.5-inch LFF SATA/SAS |
| Acoustic power emissions |
6.30 B(A) |
| Remote management software |
iLO 2 |
| Acoustic pressure emissions |
52.07 dB |
| Standard storage connection |
Hot plug 3.5-inch SAS; Hot plug 3.5-inch SATA |
| Manageability features |
Automatic Server Recovery (ASR); iLO 2 Advanced Pack (optional); HP Systems Insight Manager; Integrated Management Log; Drive Parameter Tracking (with Smart Array Controllers); Dynamic Sector Repairing (with Smart Array Controllers); Pre-Failure Warranty (covers processors, SAS hard drives, and memory); BIOS Serial Console; Front and Rear Unit ID (UID) button/LED |
| Data protection features |
ECC |
| Form factor |
1U |
Graphics
| Maximum graphics adapter memory |
32 MB |
Storage
| Hard drive size |
3.5 " |
| Total storage capacity |
160 GB |
| Hot-swap |
Y |
| Hard drive interface |
Serial ATA |
Ports & interfaces
| Serial ports quantity |
1 |
| Expansion slots |
Two total slots: (1) Full length PCI Express x8 slot (x8 connector); Can be replaced with a full-length 64-bit /133MHz PCI-X slot; (1) Half-length, low-profile PCI Express x1 slot (x8 connector) |
| PS/2 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Operational conditions
| Non-operating altitude |
9144 m |
Networking
| Networking features |
Gigabit Ethernet |
Certificates
| Compliance industry standards |
ACPI 2.0; PCI 3.0 Compliant; PXE Support; WOL Support; Microsoft Logo certifications; USB 2.0; IPMI 2.0 |
Additionally
| Processing die size |
164 mm² |
| Chipset |
Intel 3210 |
| InTru™ 3D Technology |
N |
| Graphics |
ES1000 |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |
Intel Xeon Quad-Core X3320 (2.50GHz, 6MB, 1333MHz), 1GB (1 x 1GB) DDR2 SDRAM, 160GB SATA Hot Plug 3.5" 7200 rpm, CD-RW/DVD-ROM Combo, 1U Rack

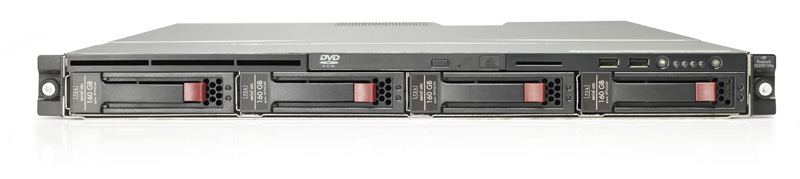

The HP ProLiant DL320 G5p Server is an enterprise rack-optimized server at an entry level price. The highly manageable 1 processor, 1U server is ideal for single-application IT infrastructure, web and edge-of-network applications. The remote console and virtual KVM offered by the embedded iLO-2, coupled with the management features of SIM and deployment capabilities of SmartStart and other Proliant Essentials software, give the DL320 G5p enterprise-class management features. Optional upgrades provide support for hot-plug SAS drives and/or up to 4 SAS or SATA drives, and gives the DL320 G5p the flexibility to meet the needs of your datacenter. Plus, you get the cost-effective solution of a single-processor platform with the performance advantages of dual-core or quad-core.
Features
- Cost optomized enterprise, Rack-Dense Platform: The 1U rack-optimized chassis minimizes your datacenter footprint, while the single-processor architecture and support for 3.5" Serial ATA hard drives mean a price within your budget.
- Enterprise Class Monitoring and Management: With powerful and highly flexible deployment, monitoring, and management tools, the ProLiant DL320 G5p has the comprehensive solutions to fit your environment.
- Flexible Storage Options: Four different internal hard drive configurations, plus a large number of HBA and RAID adapter card options, give you a tremendous variety of options for storage.
