Other features
| Hard disk controller |
Smart Array E200i |
Memory
| Internal memory |
1 GB |
| Internal memory type |
DDR2-SDRAM |
| Maximum internal memory |
32 GB |
| Memory slots |
8 DIMM |
| Memory clock speed |
667 MHz |
Processor
| Processor cache |
4 MB |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
2 |
| Thermal Design Power (TDP) |
65 W |
| Processor lithography |
65 nm |
| Processor frequency |
2 GHz |
| Processor front side bus |
1333 MHz |
| Processor cache type |
L2 |
Ports & interfaces
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
2 |
Networking
| Networking features |
Gigabit Ethernet |
Processor special features
Graphics
| Maximum graphics adapter memory |
32 MB |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Graphics |
ES1000 |
| Chipset |
Intel 5000P |

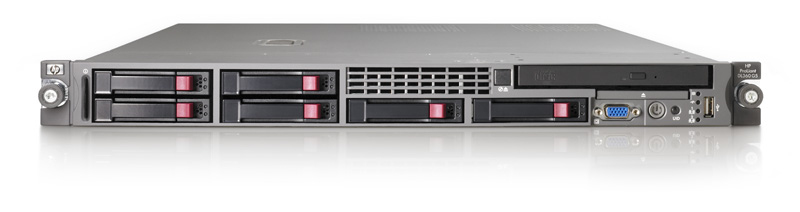

Intel Xeon Dual-Core 5130 (2.0GHz, 4MB L2, 1333MHz), 1GB (2 x 512MB) PC2-5300 FB DIMMs (DDR2-667), no HDD, Smart Array E200i/64MB (RAID 0/1/1+0), 1U Rack
Combining concentrated 1U compute power, integrated Lights-Out management, and essential fault tolerance, the DL360 is optimized for space constrained installations. Quad-core and Dual-core Xeon processors, DDR2 Fully Buffered DIMMs, Serial Attached SCSI (SAS) and PCI Express technology provide a high performance system ideal for the full range of scale out applications. What's more, the DL360 G5 steps up the fault tolerant in an ultra dense platform with redundant power, redundant fans, mirrored memory or online spare memory, embedded RAID capability, and full-featured remote Lights-Out management.
Features
- Concentrated 1U compute power: Intel® Xeon® Processors 5400/5300/5200/5100 sequence increase system performance and can handle a significantly greater workload because of Quad-Core or Dual-Core, increased Level 2 cache, faster system bus, and Hyper-Threading technology.
- Optimum fault tolerance: Engineering excellence provides unsurpassed reliability in a 1U form factor. The DL360 offers redundant fans and optional redundant power supplies to meet demanding availability requirements of corporate data centers.
- Deployment versatility in a 1U form factor: The virtual presence of embedded Lights-Out technology provides secure remote console and remote control. Optional high speed graphical remote console and virtual media functionality further enhances the feature set.
- Delivering best-run server infrastructure: The world's best run server infrastructures are built with ProLiant servers and HP Infrastructure Management. Software that gives you total control, maximum flexibility and tangible savings from your ProLiant investment.
