Processor special features
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel Enhanced Halt State |
Y |
Intel Hyper-Threading Technology |
Y |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel® Smart Cache |
Y |
Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
Intel Trusted Execution Technology |
N |
Intel Flex Memory Access |
N |
Intel Fast Memory Access |
N |
Intel Rapid Storage Technology |
N |
Intel® Turbo Boost Technology |
Y |
CPU configuration (max) |
2 |
Intel Dual Display Capable Technology |
N |
Intel Clear Video Technology |
N |
Intel 64 |
Y |
Intel® Insider™ |
N |
Intel® Quick Sync Video Technology |
N |
Processor ARK ID |
40200 |
Intel Virtualization Technology (VT-x) |
Y |
Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel Demand Based Switching |
Y |
Enhanced Intel SpeedStep Technology |
Y |
Intel FDI Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel vPro Technology |
N |
Intel Clear Video Technology for MID |
N |
Storage
RAID support |
Y |
Number of hard drives supported |
12 |
Total storage capacity |
6292 GB |
Hard drive speed |
15000 RPM |
Hard drive capacity |
600 GB |
Hard drive size |
2.5 " |
Hot-swap |
Y |
Hard drive interface |
Serial Attached SCSI (SAS) |
Processor
Stepping |
D0 |
Processor system type |
DP |
Processor operating modes |
64-bit |
Processor cores |
4 |
CPU multiplier (bus/core ratio) |
17 |
Embedded options available |
N |
FSB Parity |
N |
Number of Processing Die Transistors |
731 M |
Physical Address Extension (PAE) |
40 bit |
Thermal Monitoring Technologies |
N |
Idle States |
Y |
Execute Disable Bit |
Y |
Number of QPI links |
2 |
Processor boost frequency |
2.53 GHz |
Processor cache |
8 MB |
Number of processors installed |
1 |
Maximum number of SMP processors |
2 |
Thermal Design Power (TDP) |
80 W |
Processor lithography |
45 nm |
Processor package size |
42.5 mm |
Processor manufacturer |
Intel |
Conflict Free processor |
N |
Memory channels supported by processor |
Triple |
Memory bandwidth supported by processor (max) |
25.6 GB/s |
Memory clock speeds supported by processor |
1066, 800 MHz |
Processor cache type |
Smart Cache |
Processor code |
SLBFD |
Bus type |
QPI |
Memory types supported by processor |
DDR3-SDRAM |
ECC supported by processor |
Y |
Tcase |
72 °C |
Maximum internal memory supported by processor |
144 GB |
Processor frequency |
2.26 GHz |
Ports & interfaces
PS/2 ports quantity |
2 |
Serial ports quantity |
1 |
VGA (D-Sub) ports quantity |
1 |
Memory
Maximum internal memory |
32 GB |
Memory slots |
12 |
Internal memory type |
DDR3-SDRAM |
ECC |
Y |
Internal memory |
6 GB |
Memory layout (slots x size) |
3 x 2 GB |
Other features
Disk array controller |
P812 |
Expansion slots
PCI Express x4 slots |
1 |
PCI Express x8 slots |
2 |
PCI Express x16 slots |
1 |
Networking
Cabling technology |
10/100/1000Base-T(X) |
Network ready |
Y |
LAN controller |
HP NC362i |
Design
Chassis type |
Rack (2U) |
Optical drive type |
N |
Power
Number of power supply units |
1 |
Power supply |
750 W |
Operational conditions
Operating altitude |
0 - 3050 m |
Non-operating altitude |
0 - 9144 m |
Additionally
Processing die size |
263 mm² |
Chipset |
Intel 5500 |
Ethernet LAN (RJ-45) ports quantity |
2 |
InTru™ 3D Technology |
N |
Intel AES New Instructions |
N |
Ethernet LAN connection |
Y |
System bus data transfer rate |
5.86 GT/s |

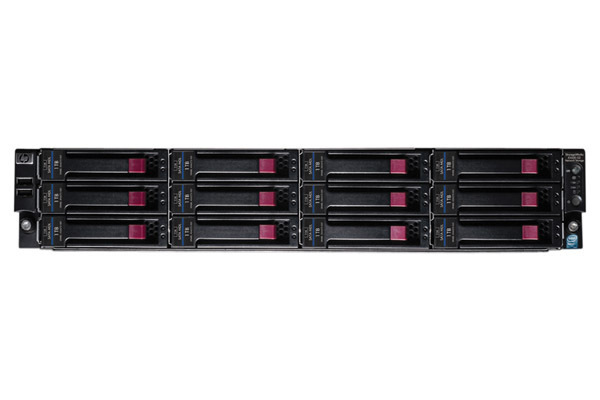

Intel Xeon E5520 (2.26GHz, 8Mb L3), Intel 5500, 6Gb RAM, 2x146Gb SAS, 10x600GB SAS HDD, 2xLAN, VGA, 2U, 750W
You have better things to do than worry about storage. You’re working with multiple management interfaces, security concerns, and shrinking backup windows - all while your data is growing, requiring more and more space. You need a shared storage solution that's powerful and easy to manage, and you need it now. HP X1000 G2 Network Storage Systems are the fast and easy way to add Windows-powered unified shared storage to your small or medium IT environment. The X1000 G2 Network Storage Systems offers you more for your money since it's a multi-protocol file server for Windows and UNIX/Linux and also iSCSI storage for applications/virtual environments. Built on industry standards, the X1000 G2 is an economical and easy to manage solution for consolidating to centralized shared network storage. The operating system is pre-installed and comes with HP X1000 Automated Storage Manager, so you'll be up and running in minutes.
Get More for your Money.
Consolidate islands of direct-attached storage to one easy-to-use Windows shared network storage platform. Since it’s versatile unified storage, it can be a file server (or disk-based backup / replication target), an iSCSI target for application/virtual environment storage, or both. In a Windows (SMB/CIFS) environment, there’s no better way to serve files. In mixed environments, you get the flexibility of heterogeneous support for standard network protocols like NFS, HTTP, FTP, and WebDAV. Network Attached Storage (NAS) isn’t just about sharing files any more - it’s about sharing information. With the included Microsoft iSCSI Software Target, you can host storage for applications like Microsoft Exchange and SQL, or for Microsoft Hyper-V or VMware deployments. Get File Deduplication, Quotas, File Screening, Storage Reporting, Volume Shadow Copy Service (VSS) snapshots, and Distributed File System (DFS) Replication - all at no extra cost. Don't forget that X1000 G2 Network Storage Systems host print services too, offering consolidation benefits to your Windows print environment.
Do More with Fewer Resources.
The operating system is pre-installed and user storage is easy to provision with HP X1000 Automated Storage Manager, so you can add storage to your network quickly and safely. Create, migrate, manage, and protect file shares (NAS) and application storage (iSCSI Target) without the need for storage expertise. Automated ‘best practice’ logic configures storage without your needing to know industry-established best practices. ASM is like having a storage expert in the box. A consolidated and unified shared network storage system means you have one thing to manage, expand, and protect. Single Instance Storage (SIS) recovers up to 35% of disk capacity by reducing the number of redundant files. If you've used Microsoft Management Console (MMC) to manage a Windows server, you're probably already familiar with how to manage HP X1000 G2 Network Storage Systems.
Protect and Optimize your Investment.
Relax - your investment is protected because you're not locked into proprietary hardware. And you can take advantage of built-in functionality like Integrated Lights-Out that lets you manage and troubleshoot remotely. X1000 G2 models integrate with HP SIM and support ProLiant Support Pack. HP X1000 G2 Network Storage Systems feature multi-core Intel® Xeon® processors, support for SATA or SAS internal hot plug hard drives, and easy external SAS expansion with HP disk enclosures. There's also an X1000 G2 network storage solution for HP C-class BladeSystem (X1800sb G2). The X1000 G2 models run a Windows operating system, so they integrate natively (not by emulation) into your Windows Active Directory and DFS environments, and run your off standard Windows-based antivirus, backup, and storage management applications. Backup to disk, tape, or other removable media with Data Protector Express Software, and replicate data on a scheduled basis to another system using HP Storage Mirroring Software.
Storage Management Tools.
Storage-specific tools and features included - File Deduplication, Quotas, File Screening, Storage Reporting, Volume Shadow Copy Service (VSS) snapshots, Windows Active Directory and Distributed File System (DFS) Replication.
