Ports & interfaces
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
2 |
| Serial ports quantity |
1 |
Operational conditions
| Non-operating altitude |
0 - 9144 m |
| Operating altitude |
0 - 3050 m |
Power
| Power supply |
750 W |
| Number of power supply units |
1 |
Processor
| Maximum internal memory supported by processor |
144 GB |
| Processor frequency |
2.26 GHz |
| Processor cores |
4 |
| Stepping |
D0 |
| Processor system type |
DP |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
N |
| Number of Processing Die Transistors |
731 M |
| CPU multiplier (bus/core ratio) |
17 |
| Processor manufacturer |
Intel |
| Conflict Free processor |
N |
| Memory channels supported by processor |
Triple |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Memory clock speeds supported by processor |
1066, 800 MHz |
| Processor cache type |
Smart Cache |
| Processor code |
SLBFD |
| Physical Address Extension (PAE) |
40 bit |
| Processor package size |
42.5 mm |
| Thermal Monitoring Technologies |
N |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Number of QPI links |
2 |
| Processor boost frequency |
2.53 GHz |
| Processor cache |
8 MB |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
2 |
| Thermal Design Power (TDP) |
80 W |
| Processor lithography |
45 nm |
| Bus type |
QPI |
| Memory types supported by processor |
DDR3-SDRAM |
| ECC supported by processor |
Y |
| Tcase |
72 °C |
Processor special features
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
Y |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel® Smart Cache |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Y |
| Intel® Turbo Boost Technology |
Y |
| CPU configuration (max) |
2 |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
40200 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
Storage
| Number of hard drives supported |
12 |
| Total storage capacity |
6000 GB |
| Number of hard drives installed |
6 |
| Hard drive speed |
7200 RPM |
| Hard drive capacity |
1000 GB |
| Hot-swap |
Y |
| Hard drive size |
3.5 " |
| Hard drive interface |
Serial ATA |
| RAID support |
Y |
Memory
| Internal memory |
6 GB |
| Maximum internal memory |
32 GB |
| Memory slots |
12 |
| Memory layout (slots x size) |
3 x 2 GB |
| ECC |
Y |
| Internal memory type |
DDR3-SDRAM |
Other features
| Disk array controller |
P212 |
| Number of simultaneous users (local + network) |
100 user(s) |
Networking
| LAN controller |
HP NC362i |
| Cabling technology |
10/100/1000Base-T(X) |
| Network ready |
Y |
Expansion slots
| PCI Express x4 slots |
1 |
| PCI Express x8 slots |
2 |
| PCI Express x16 slots |
1 |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Processing die size |
263 mm² |
| Chipset |
Intel 5500 |
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |
| Ethernet LAN connection |
Y |
| System bus data transfer rate |
5.86 GT/s |
Intel Xeon E5520 (2.26GHz, 8Mb L3), Intel 5500, 6Gb RAM, 2x146Gb SAS, 6x1Tb SATA HDD, 2xLAN, VGA, 2U, 750W

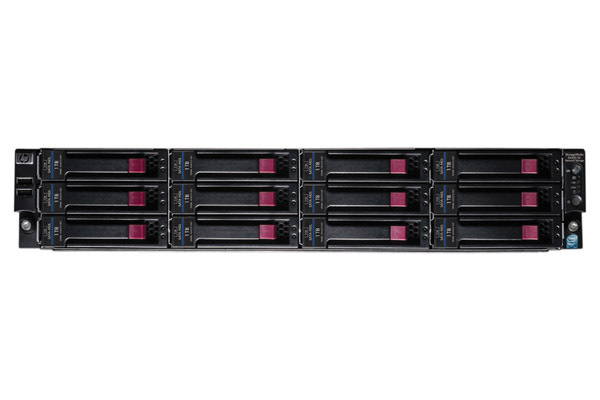

HP X1600 G2 Network Storage Systems deliver high capacity and high performance and drives down your cost per GB. Quad-Core processing, up to 24TB internal storage capacity, and ready external expandability enhance this ultra-dense 2U shared storage solution for small, medium, or large IT environments. The X1600 G2 is built on a HP ProLiant DL180 G6 server chassis, with a custom motherboard supporting iLO2 remote management. There are two models of the X1600, one model contains 12 X LFF HDDs in front slots and 2 SFF HDD slots in rear and the other model contains 25 x SFF HDDs in front slots only.
