Performance
| Data transfer rate (max) |
20 Gbit/s |
| Hot-Plug support |
Y |
Packaging content
| User guide |
Y |
| Quick installation guide |
Y |
Ports & interfaces
| Internal USB 3.0 ports quantity |
1 |
| PCI Card form factor |
Full-height (low-profile) |
| Host interface |
PCIe |
| Internal |
Y |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
2 |
2x USB 3.0, PCI-Express 2.0 x4
<b>Unmatched Performance, Ultimate Versatility Add USB 3.0 Front Panel and External Device Support to any PC.</b>

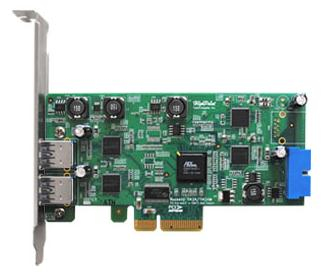

The RocketU 1142A is the industry's first 20Gb/s Hybrid USB 3.0 HBA. The unique hybrid port configurations allows you to add USB 3.0 front panel support to your PC, while providing 2 standard Type-A ports that support a variety of external devices including USB 3.0 hard drives, SSD, enclosures and docking bays.
<b>Key Features</b>
- 20Gb/s Transfer bandwidth
- PCI-E 2.0 x4
- 2x 5Gb/s Type-A Ports (support external HDD/SDD, enclosures and docking bays
- 1x 20-pin USB 3.0 Port (supports USB 3.0 Front Panels)
- Hot-Swap and Hot-Plug
- xHCI Compliant
- Support Windows and Linux operating systems (Linux OS support with xHCI driver of Kernel v2.6.31 or later)
