Ports & interfaces
| RS-485 ports |
1 |
| VGA (D-Sub) output ports |
1 |
| RS-232 interface |
Y |
| Power over Ethernet (PoE) |
Y |
| Line-in |
Y |
| BNC audio input |
Y |
| BNC audio output |
Y |
| Audio RCA inputs |
1 |
| USB 3.0 (3.1 Gen 1) Type-A ports quantity |
1 |
Packaging content
| Handheld remote control |
Y |
Performance
| Alarm output channels |
4 |
| Alarm input channels |
16 |
| Video input channels |
8 |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Storage
| Number of hard drives supported |
4 |
| Maximum storage capacity |
24 TB |
| Hard drive interface |
Serial ATA |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |

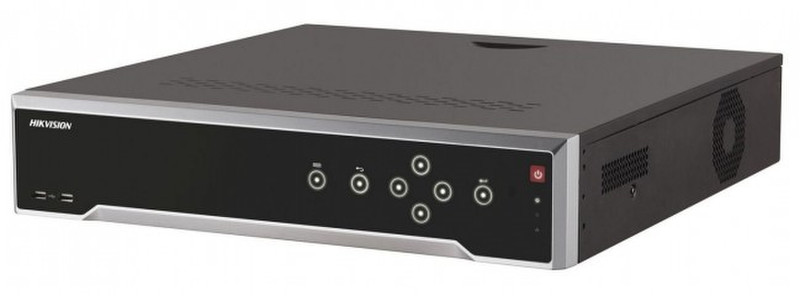

H.265/H.264+/H.264/MPEG4, HDMI, VGA, SATA, PoE, RS-232, RS-485, 445 × 390 ×70 mm, 5 kg
<b>Professional and Reliable</b>
- Dual-OS design to ensure high reliability of system running
- ANR technology to enhance the storage reliability when the network is disconnected
<b>HD Input</b>
- H.265/H.264+/H.264/MPEG4 video formats
- Connectable to the third-party network cameras
- Up to 32 IP cameras can be connected
- Recording at up to 12 MP resolution
- Supports live view, storage, and playback of the connected camera at up to 12 MP resolution
<b>HD Output</b>
- HDMI and VGA outputs provided
- HDMI Video output at up to 4K (3840 × 2160) resolution
<b>HD Storage</b>
- Up to 4 SATA interfaces connectable for recording and backup
- Storage space effectively saved by 50% to 70% with the use of H.264+decoding format
<b>HD Transmission</b>
- 1 self-adaptive 10M/100M/1000M network interface
- 8 independent PoE network interfaces are provided
<b>Various Applications</b>
- Centralized management of IP cameras, including configuration, information import/export, real-time information display, two-way audio, upgrade, etc.
- Connectable to smart IP cameras from Hikvision and the recording, playing back, and backing up of VCA alarms can be realized
- VCA detection alarm is supported
- Instant playback for assigned channel during multi-channel display mode
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Supports HDD quota and group modes; different capacity can be assigned to different channels
