Antenna
Antenna connector type |
RP-SMA |
Antenna |
Y |
Gain |
2 dBi |
Ports & interfaces
Host interface |
PCI-E |
Internal |
Y |
Additionally
Transfer rate (Mbps) |
150 Mbit/s |
Wireless technologies |
Wireless |

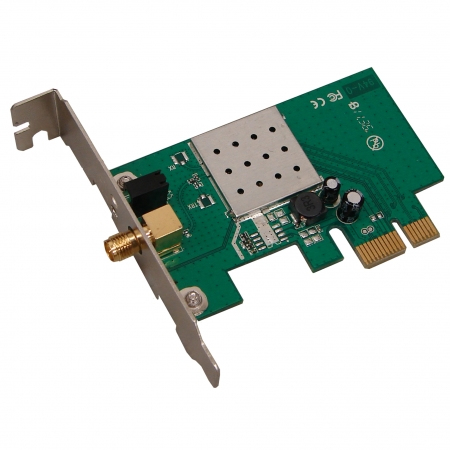

Wireless 802.11n WiFi 1T1R 150Mbps PCIe PCI Express PCI-E 1x Low Profile Adapter, High Gain 2dBi OMNI Direction External Antenna, RoHS, Windows 8.1 8 7 Vista XP 32-bit 64-bit
Feature & Benefits:
Protocol IEEE 802.11n Improvements:
- Significant increases in connection speed
- Backward compatible to IEEE 802.11b & IEEE 802.11g
- Download speed up to 150 Mbps
High-Gain OMNI Direction 2dBi Antenna:
- Long transmittance distance for continuous, stable connection
- Ample length in connection wire allows the antenna to be freely location to avoid potential interference
- Fully Compatible with the Latest Windows 8.1 Operation Systems.
Specification:
Connection Protocol:
- IEEE 802.11n Draft 2.0 Compliance
- Backward Compatible with 802.11b/g
Maximum Connection Speed: 1T x 1R
- 802.11n: up to 150 Mbps
- 802.11g: up to 54 Mbps
- 802.11b: up to 11 Mbps
Operation Frequency / Channel:
- USA (FCC) 11 Channels: 2.412 GHz ~ 2.462 GHz
- Europe (ETSI) 13 Channels: 2.412 GHz ~ 2.472 GHz
- Japan 14 Channels: 2.412 GHz ~ 2.484 GHz
RF Output Power:
- 17 dBm +/- 1dBi for 802.11b
- 15 dBm +/- 1dBi for 802.11g
- 14 dBm +/- 1dBi for 802.11n
Maximum Transmission Distance:
- Indoor: up to 328 ft.
- Outdoor: up to 984 ft.
Security Protocol:
- 64/128-Bit WEP Encryption
- WPA & WPA2
- WPS
Connection Interface
- Network Adaptor: Low Profile PCI-Express 1x
- Antenna: RP-SMA plug connector
- Shipping Weight: 1 lbs.
Fully Compatible with latest Microsoft Windows OS
-Windows 8.1 8 7 Vista XP 32-bit 64-bit
Shipping: Can ship only within USA and Canada
Weight: 0.34 lb
