Storage
| Number of storage drives supported |
60 |
| Hot-swap |
Y |
| Installed storage drive type |
HDD |
| Total installed storage capacity |
96000 GB |
| Maximum capacity |
600 TB |
Power
| AC adapter frequency |
47/63 Hz |
| AC adapter input voltage |
200 - 240 V |
4U, 60x 3.5", 96TB, 512e, SE Security, 24x 7K6000 4TB Drive Modules, 2x 1650W

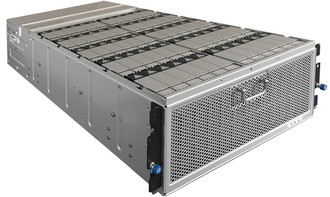

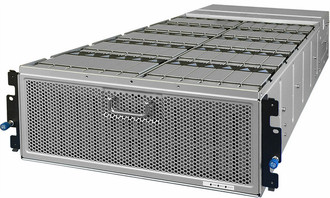

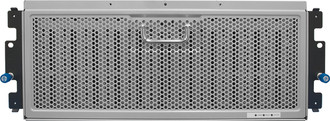

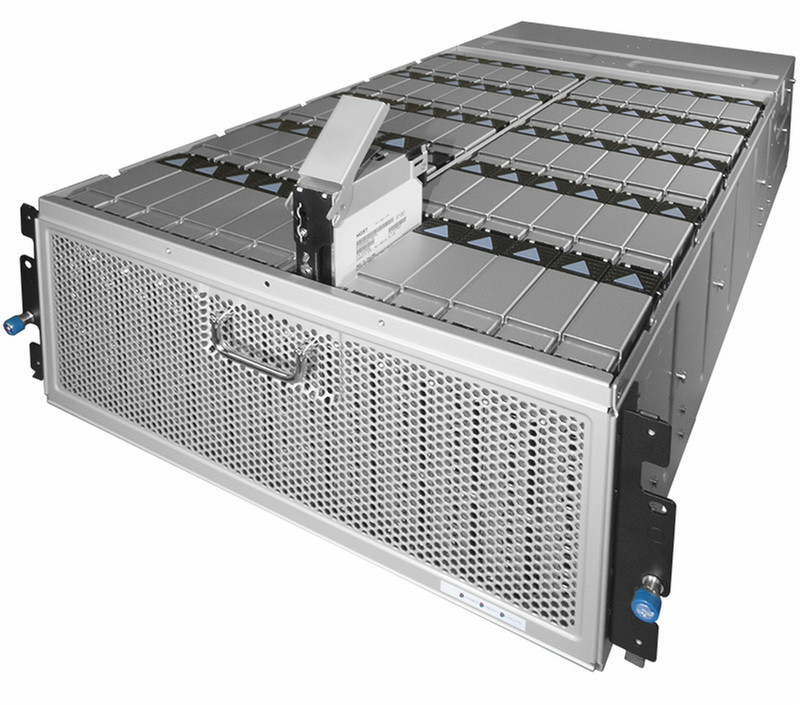

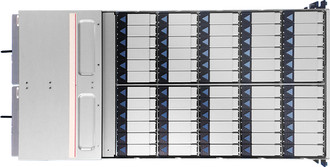

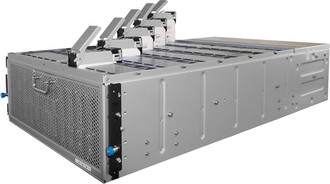

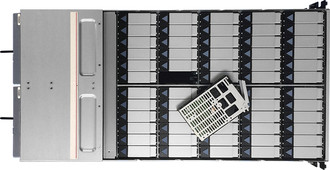

When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60 Storage Enclosure. This high-density, scalable, and cost-effective design Includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure and offers 2x2x4-lane SAS 12Gb/s performance, high availability (HA), and hot-swappable components. Optimized to provide a dense solution with HA capabilities, while maintaining a low power profile, you can trust the 4U60 Storage Enclosure to deliver the value you need for your data center.

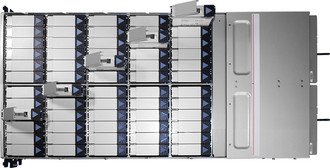

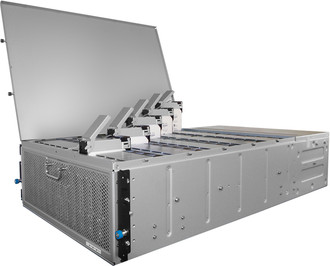

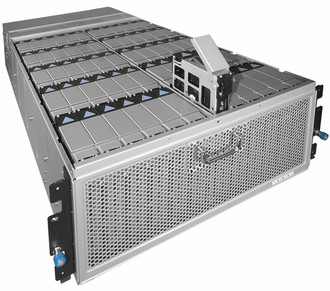

- Up to 60 integrated Ultrastar® drive modules
- Available with 512e or 4Kn sector size (by part number)
- Available option to configure up to 8 Ultrastar SSDs to create separate performance tiers within the enclosure
- Available with SAS drives for HA applications or with SATA drives for cost-optimized applications

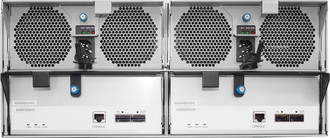

- Host connectivity 2 x SAS QSFP+ receptacles per IO Module; optional connectivity cables are available
- QSFP+ to HD mini SAS cables for host
- QSFP+ to QSFP+ cables for daisy-chaining
- Hot Swappable: two power supplies (with integrated fans), drive modules, and IO modules
- Fully compliant with SAS 3.0 specification for operation up to 12Gbps
- Optional cable management arm eliminates tangled cables during servicing of hot-swappable CRUs
- SCSI Enclosure Services (SES-3)
- Microsoft Certified for Windows Server 2016, Windows Server 2012 R2 & Windows Server 2012
