Performance
| Read speed |
3000 MB/s |
| Write speed |
1600 MB/s |
| Solid-state drive capacity |
3200 GB |
| ECC |
Y |
| Hot-swap |
Y |
| PCI Express interface data lanes |
x4 |
| Random write (4KB) |
140000 IOPS |
| Random read (4KB) |
743000 IOPS |
| Enhanced Power Loss Data Protection technology |
Y |
| SSD temperature monitoring |
Y |
| Random read (8KB) |
385000 IOPS |
| Random write (8KB) |
75000 IOPS |
| RAID support |
Y |
| Solid-state drive interface |
PCI Express |
Power
| Power consumption (average) |
25 W |
| Power consumption (idle) |
8 W |

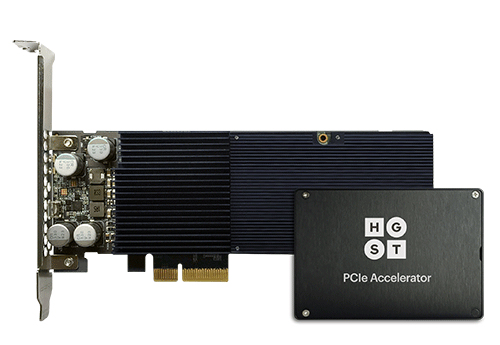

Ultrastar SN100 3.2TB, PCIe 3.0 x4, SFF 2.5"
Gain performance acceleration for today’s most demanding cloud, hyperscale and enterprise applications with the Ultrastar® SN100 Series, an NVM Express™ compliant family of PCIe solid-state drives. Delivering memory-class performance with storage-class capacity and persistence, the Ultrastar SN100 Series is offered as a low profile HH-HL extension card as well as a highly serviceable and hot swappable SFF 2.5-inch drive, both with capacities up to 3.2TB. The devices connect using PCIe 3.0 x4 slots and support various operating systems through open-source NVMe drivers. HGST also offers capacity-optimized versions of the Ultrastar SN100 Series, up to 3.82TB, for applications that require additional user capacity.
